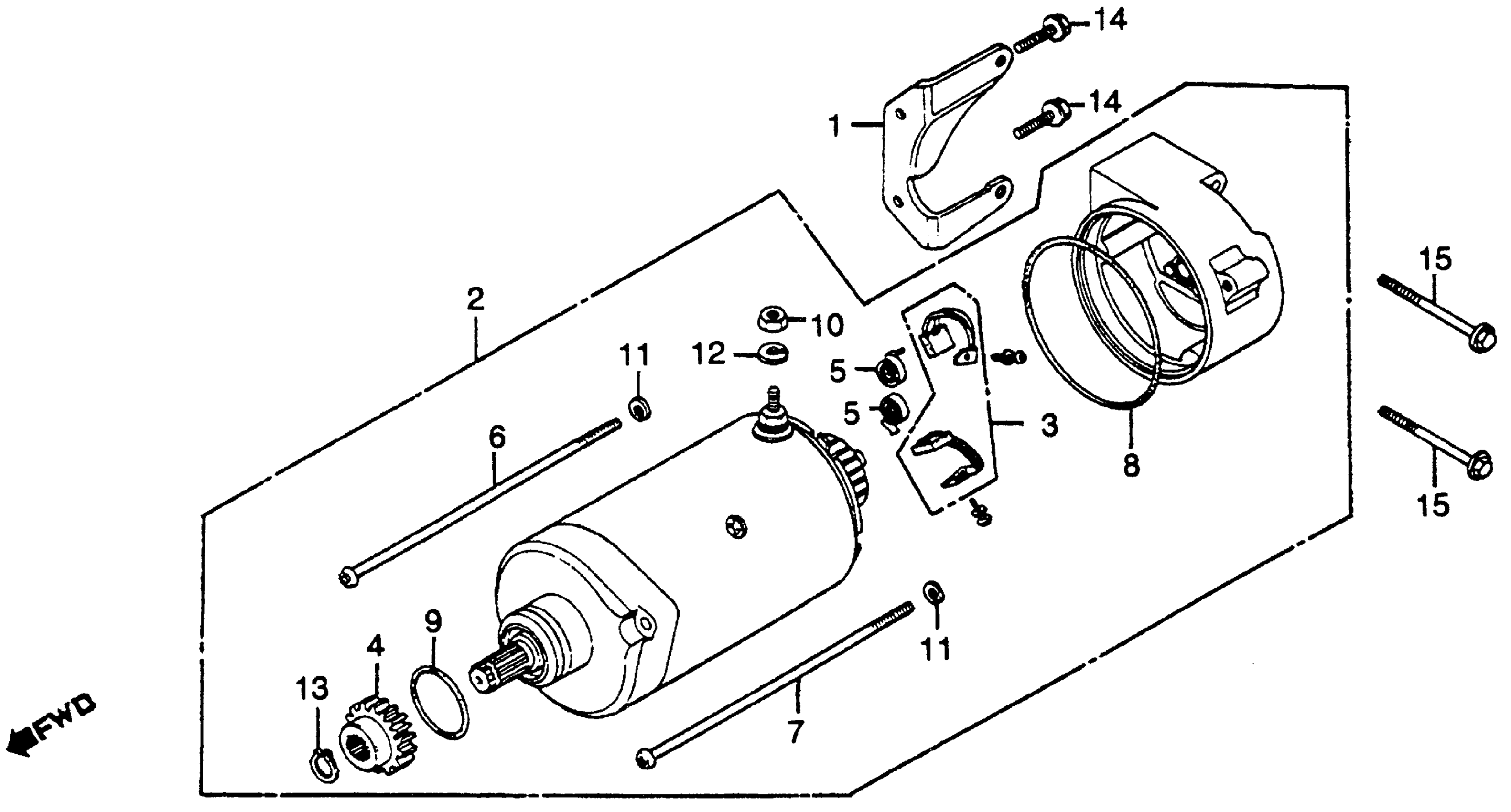

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 STARTER MOTOR Diagram

#

Description
Price

1

STAY, STARTER MOTOR (NOT AVAILABLE)

11312-415-000

Unavailable

2

STARTER MOTOR ASSY. This part replaces 31200-449-008.

31200-449-405

Unavailable

3

BRUSH SET, CARBON

31201-292-158

$26.15

4

GEAR, STARTER MOTOR (27T) (NOT AVAILABLE)

31201-415-000

Unavailable

5

SPRING, CARBON BRUSH

31204-292-158

$3.83

6

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

7

BOLT, STARTER MOTOR COVER

31205-413-780

Unavailable

7

BOLT, STARTER MOTOR COVER This part replaces 31205-449-008.

31205-413-780

Unavailable

8

O-RING (60X1.4)

31206-402-008

Unavailable

8

O-RING (60X1.4) This part replaces 31206-415-000.

31206-402-008

Unavailable

9

O-RING (24.4X3.1) This part replaces 91309-300-000.

91312-MG7-003

$6.34

9

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

$6.34

9

O-RING (24.4X3.1)

91312-MG7-003

$6.34

10

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

10

NUT, HEX. (6MM)

94002-06000-0S

$1.49

11

WASHER, SPRING (5MM)

94111-05000

$1.49

12

WASHER, SPRING (6MM)

94111-06000

$1.49

13

CIRCLIP (OUTER) (11MM)

94510-11000

$1.49

14

BOLT, FLANGE (6X18) This part replaces 96000-06018-00.

96001-06018-00

$1.80

14

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

15

BOLT, FLANGE (6X35) This part replaces 96000-06035-00.

96001-06035-00

$1.49

15

BOLT, FLANGE (6X35)

96001-06035-00

$1.49
