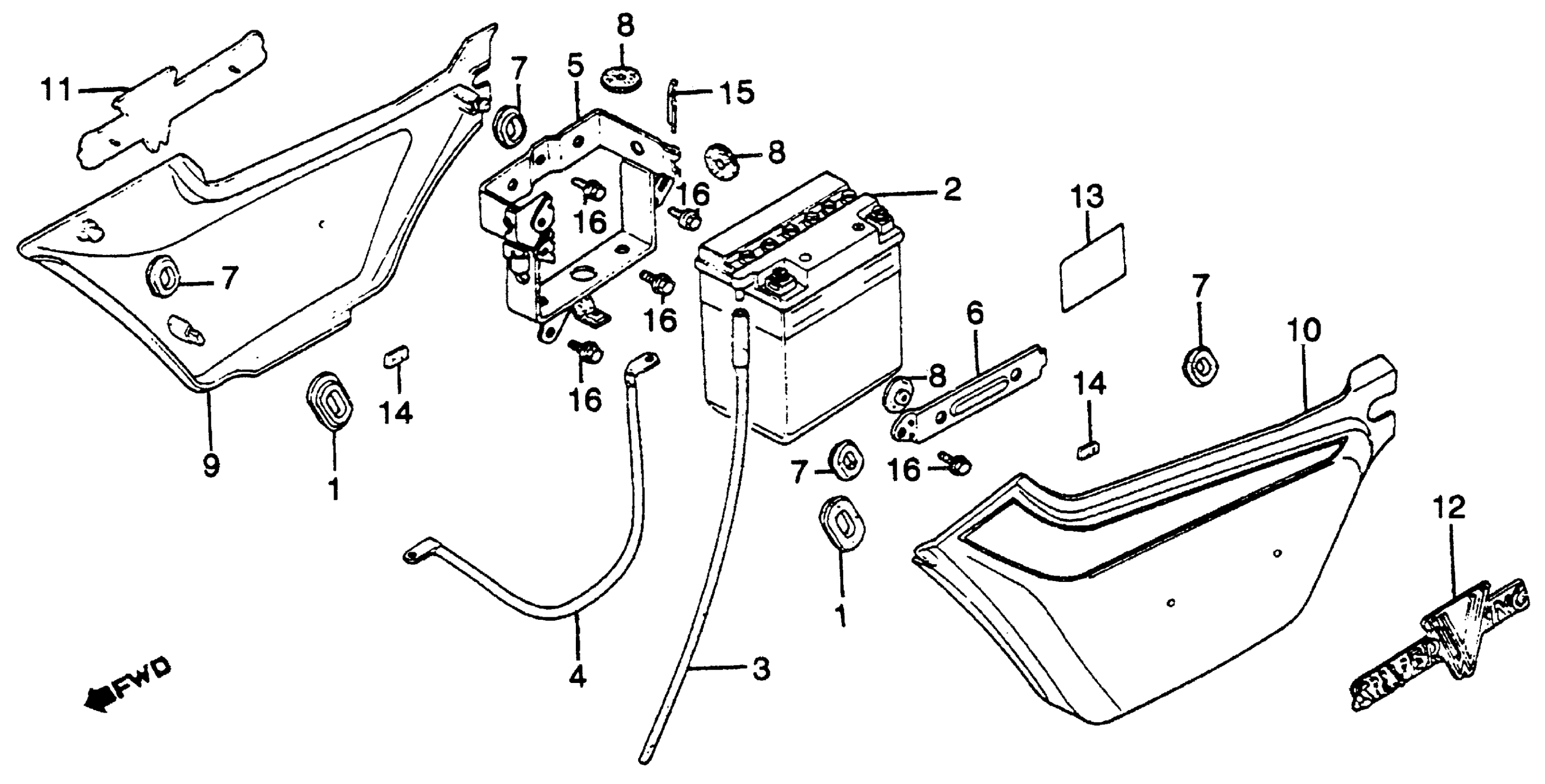

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 SIDE COVER + BATTERY Diagram

#

Description
Price

1

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$7.56

2

BATTERY (12N14-3A) This part replaces 31500-415-601.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-415-671.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-425-671.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-425-672.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-425-677.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-461-770.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-461-771.

31500-425-672AH

$67.38

2

BATTERY (12N14-3A) This part replaces 31500-461-772.

31500-425-672AH

$67.38

3

TUBE, BATTERY BREATHER (NOT AVAILABLE)

31502-MA1-000

Unavailable

4

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-MA1-000

Unavailable

5

BAND A, BATTERY

50327-ME2-000

Unavailable

6

BAND B

50328-ME2-000

Unavailable

7

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.42

8

RUBBER, BATTERY BOX

83618-323-000

$2.36

9

COVER ASSY., R. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

83620-ME2-000ZA

Unavailable

9

COVER ASSY., R. SIDE *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)

83620-ME2-000ZB

Unavailable

10

COVER ASSY., L. SIDE *R114CU* (CANDY WINE BERRY RED-U) (NOT AVAILABLE)

83720-ME2-000ZA

Unavailable

10

COVER ASSY., L. SIDE *NH125MU* (NIMBUS GRAY METALLIC) (NOT AVAILABLE)

83720-ME2-000ZB

Unavailable

11

EMBLEM, SIDE COVER (NOT AVAILABLE)

87125-MA1-000

Unavailable

12

EMBLEM, L. SIDE COVER (NOT AVAILABLE)

87137-MA1-000

Unavailable

13

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-MA1-670

Unavailable

14

NUT, SPEED (3MM)

90315-504-000

$2.98

15

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

15

PIN, COTTER (3.0X45)

94201-30450

$0.94

16

BOLT, FLANGE (6X10)

95700-06010-08

$1.46

16

BOLT, FLANGE (6X10)

95701-06010-08

$1.46
