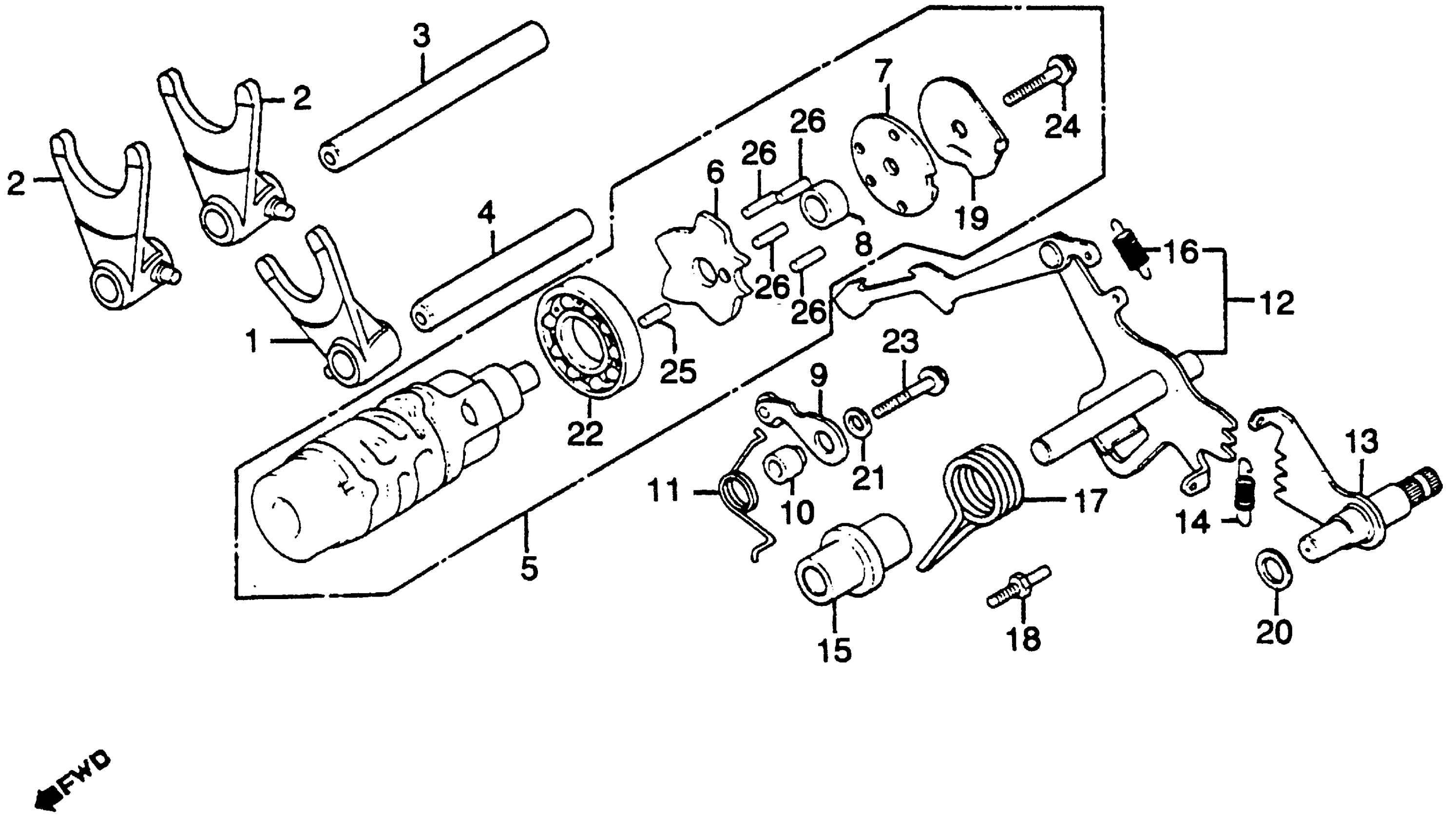

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK, MAINSHAFT THIRD GEARSHIFT

24216-ME2-000

Unavailable

2

FORK, COUNTERSHAFT FIFTH GEARSHIFT

24221-MC7-000

Unavailable

2

FORK, COUNTERSHAFT FIFTH GEARSHIFT This part replaces 24221-ME2-000.

24221-MC7-000

Unavailable

3

SHAFT A, GEARSHIFT FORK GUIDE

24241-MC7-000

Unavailable

4

SHAFT B, GEARSHIFT FORK GUIDE

24242-MC7-000

Unavailable

5

DRUM, GEARSHIFT (NOT AVAILABLE)

24300-MC7-000

Unavailable

6

PLATE, DRUM CAM (NOT AVAILABLE)

24303-MC7-000

Unavailable

7

PLATE, DRUM CENTER

24304-415-000

Unavailable

8

COLLAR, DRUM CENTER

24305-415-000

Unavailable

9

STOPPER, GEARSHIFT DRUM (NOT AVAILABLE)

24430-413-000

Unavailable

10

COLLAR, GEARSHIFT DRUM STOPPER

24432-413-000

$7.99

11

SPRING, DRUM STOPPER (NOT AVAILABLE)

24435-415-000

Unavailable

12

ARM, GEARSHIFT (NOT AVAILABLE)

24610-415-000

Unavailable

13

SPINDLE, GEARSHIFT

24620-415-000

Unavailable

14

SPRING, GEARSHIFT

24623-415-000

Unavailable

15

COLLAR, GEARSHIFT ARM (NOT AVAILABLE)

24624-415-000

Unavailable

16

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

17

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-333-000

Unavailable

18

PIN, SHIFT RETURN SPRING

24652-259-000

$4.97

19

PLATE, POINT (NOT AVAILABLE)

35753-415-000

Unavailable

20

WASHER (12MM) (NOT AVAILABLE)

90451-708-000

Unavailable

21

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

22

BEARING, BALL (16005) (NTN CORP.)

91008-374-003

$15.03

23

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

24

BOLT, FLANGE (6X25)

95725-06025-00

Unavailable

25

ROLLER (4X11.8)

96220-40118

$1.49

26

ROLLER (4X14) (NOT AVAILABLE)

96220-40140

Unavailable
