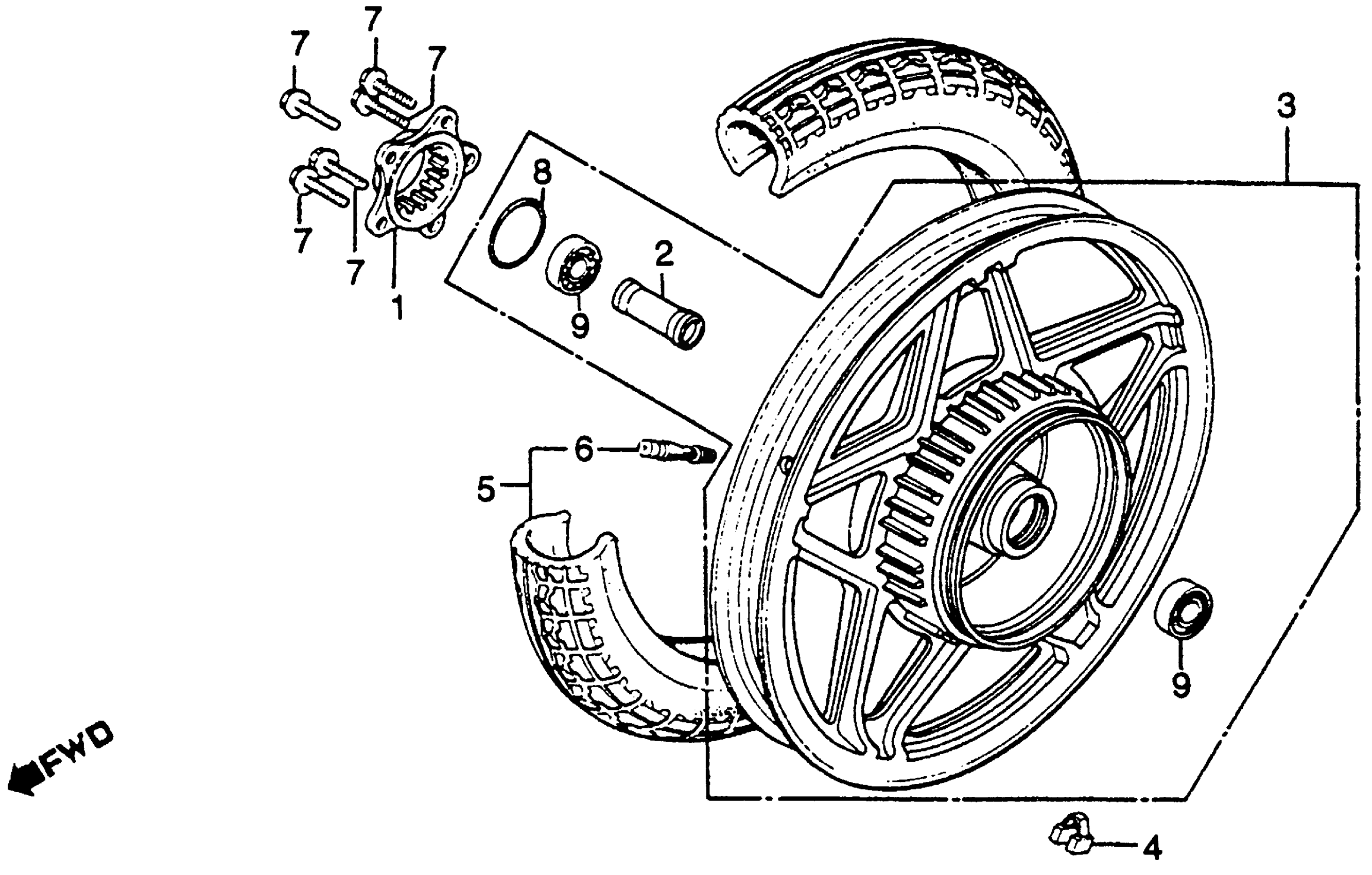

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 REAR WHEEL Diagram

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-415-000

Unavailable

COLLAR, RR. AXLE DISTANCE

42620-ME2-000

Unavailable

WHEEL, RR.

42650-ME2-670

Unavailable

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

WEIGHT, BALANCE (10)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

WEIGHT, BALANCE (20)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME2-671.

42710-ME2-672

Unavailable

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

VALVE, RIM (BS)

42753-425-003

$11.00

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

BOLT, SPROCKET

90128-402-000

$6.93

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

O-RING (54X2.4) (ARAI) This part replaces 91357-415-003.

91302-KF0-003

$3.47

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48
