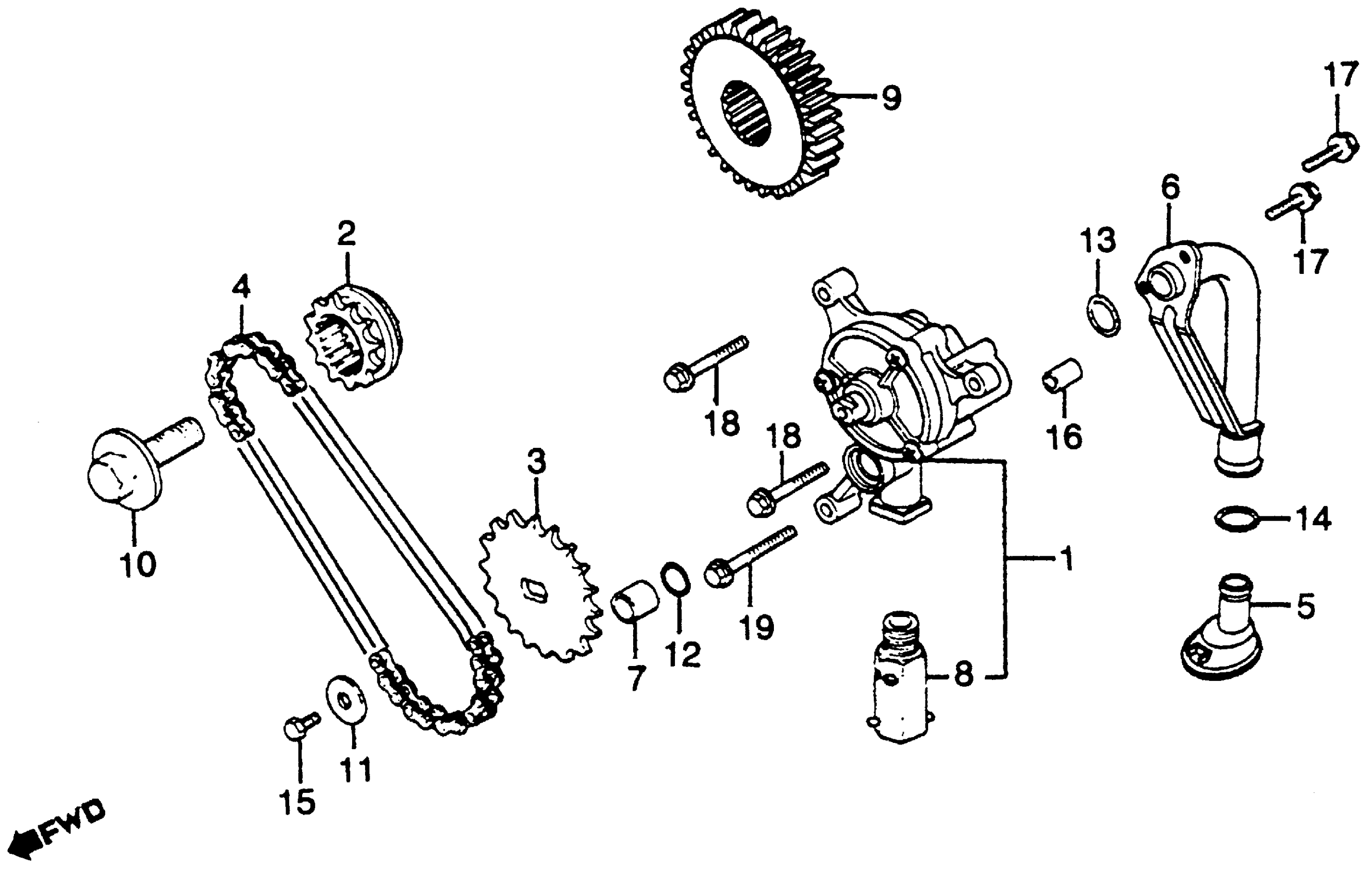

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 OIL PUMP + PRIMARY DRIVE GEAR Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE)

15100-ME2-000

Unavailable

2

SPROCKET, OIL PUMP DRIVE (NOT AVAILABLE)

15115-415-000

Unavailable

3

SPROCKET, OIL PUMP DRIVEN (NOT AVAILABLE)

15116-415-000

Unavailable

4

CHAIN, OIL PUMP

15140-415-003

$51.99

5

BODY, OIL STRAINER (NOT AVAILABLE)

15141-ME2-000

Unavailable

6

PIPE, OIL STRAINER

15143-ME2-000

Unavailable

7

COLLAR, O-RING

15155-300-000

$3.47

8

VALVE ASSY., RELIEF (NOT AVAILABLE)

15220-415-000

Unavailable

9

GEAR, PRIMARY DRIVE (NOT AVAILABLE)

23121-ME2-000

Unavailable

10

BOLT, UBS (12X28)

90013-415-000

$11.49

11

WASHER, SPARK ADVANCER SETTING

90486-028-000

$2.13

12

O-RING (13.6X2.4)

91301-268-020

$2.95

13

O-RING (15X2.5)

91302-377-000

$5.31

14

O-RING (15.3X3.5) (NOT AVAILABLE)

91363-MC7-004

Unavailable

15

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

15

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

15

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

16

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

17

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

17

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

18

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

18

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

19

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

19

BOLT, FLANGE (6X32)

95701-06032-00

$1.89
