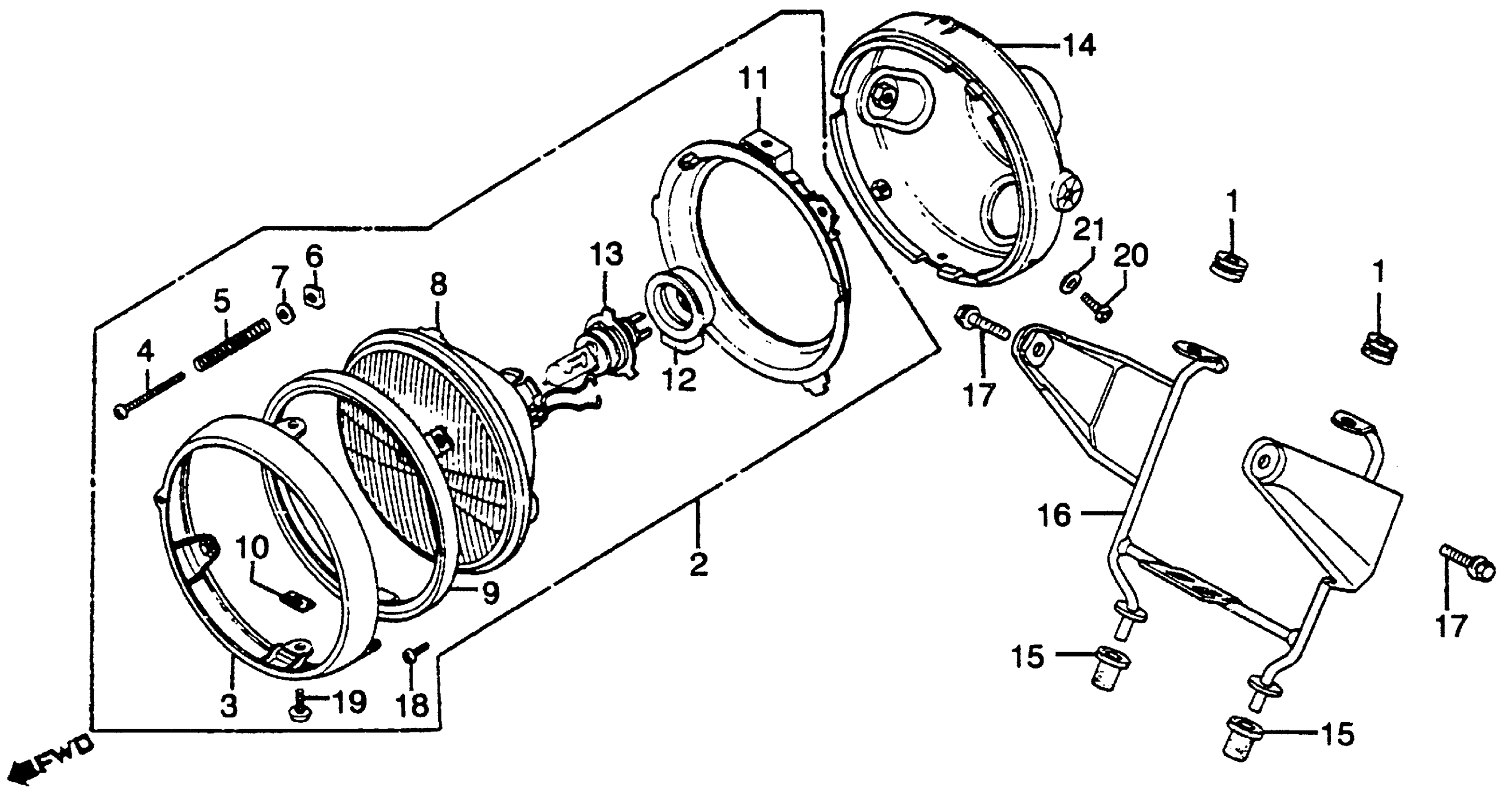

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 GL650 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.77

2

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-431-671

Unavailable

3

RIM, HEADLIGHT

33101-405-671

$65.01

4

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.36

5

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$2.80

6

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.17

7

WASHER, BEAM ADJUSTING

33119-371-003

$2.58

8

HEADLIGHT UNIT

33120-431-671

Unavailable

9

RING, RETAINING

33121-405-671

Unavailable

10

NUT, UNIT HOLDER

33128-292-670

$2.80

11

RING, SETTING (NOT AVAILABLE)

33153-375-671

Unavailable

12

COVER, RUBBER

33180-422-003

Unavailable

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$33.38

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$33.38

13

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-371-601.

34901-MC7-602

$33.38

14

CASE, HEADLIGHT (STANLEY) (NOT AVAILABLE)

61301-371-003

Unavailable

15

GROMMET B, HEADLIGHT

61313-422-000

$5.88

16

BRACKET, HEADLIGHT CASE (NOT AVAILABLE)

61315-ME2-000

Unavailable

17

BOLT, FLANGE (10X20) This part replaces 90151-449-000.

90130-126-900

$4.18

18

SCREW, PAN (3X8)

93500-03008-0A

$0.75

18

SCREW, PAN (3X8) This part replaces 93500-03008-1A.

93500-03008-0A

$0.75

19

SCREW, PAN (5X8)

93500-05008-0H

$0.83

20

SCREW, PAN (5X16)

93500-05016-0B

$1.29

21

WASHER, SPRING (5MM)

94111-05000

$1.03
