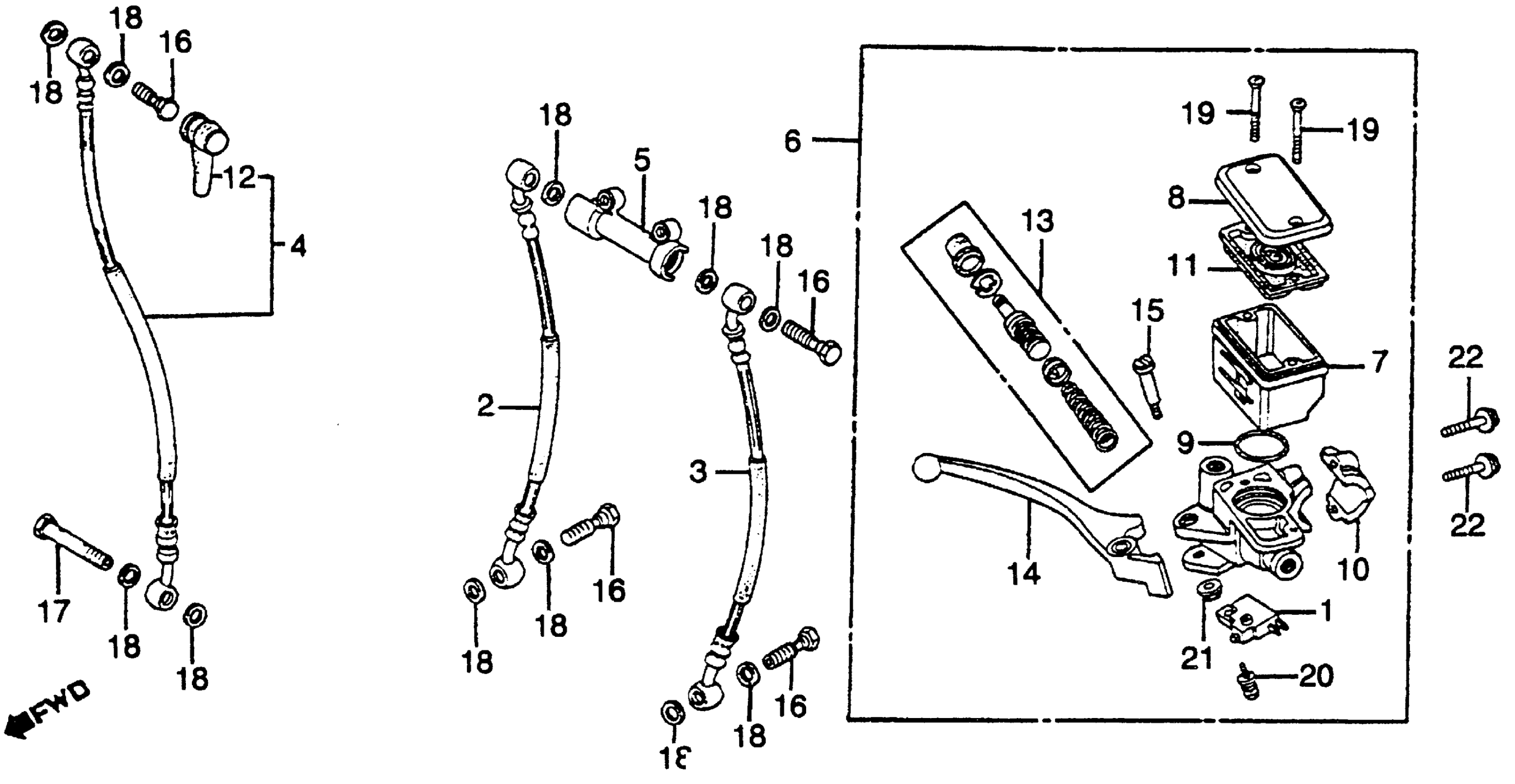

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE A, R. FR. BRAKE (NOT AVAILABLE) This part replaces 45124-ME2-003.

45124-ME2-013

Unavailable

2

HOSE A, R. FR. BRAKE (NOT AVAILABLE)

45124-ME2-013

Unavailable

3

HOSE A, L. FR. BRAKE This part replaces 45125-ME2-003.

45125-ME2-013

Unavailable

4

HOSE B, FR. BRAKE This part replaces 45126-ME2-003.

45126-MA1-742

Unavailable

4

HOSE B, FR. BRAKE This part replaces 45126-ME2-013.

45126-MA1-742

Unavailable

5

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

6

MASTER CYLINDER ASSY., FR. BRAKE (NA USE ALT:45510-MA5-405)

45500-MA5-672

Unavailable

7

CUP, OIL

45511-MA5-671

$44.69

8

CAP, OIL CUP

45513-MA5-671

Unavailable

9

O-RING (26.7X2.4)

45516-166-006

$6.81

10

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

11

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

11

DIAPHRAGM

45520-MA5-672

$18.13

12

BOOT, MASTER CYLINDER

45522-422-000

$8.68

13

MASTER CYLINDER SET

45530-MA5-671

$71.69

14

LEVER, R. HANDLEBAR

53175-MA5-671

Unavailable

15

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL

90145-300-010

$9.68

16

BOLT, OIL This part replaces 90145-460-840.

90145-300-010

$9.68

17

BOLT, OIL (NOT AVAILABLE)

90147-460-840

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

22

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
