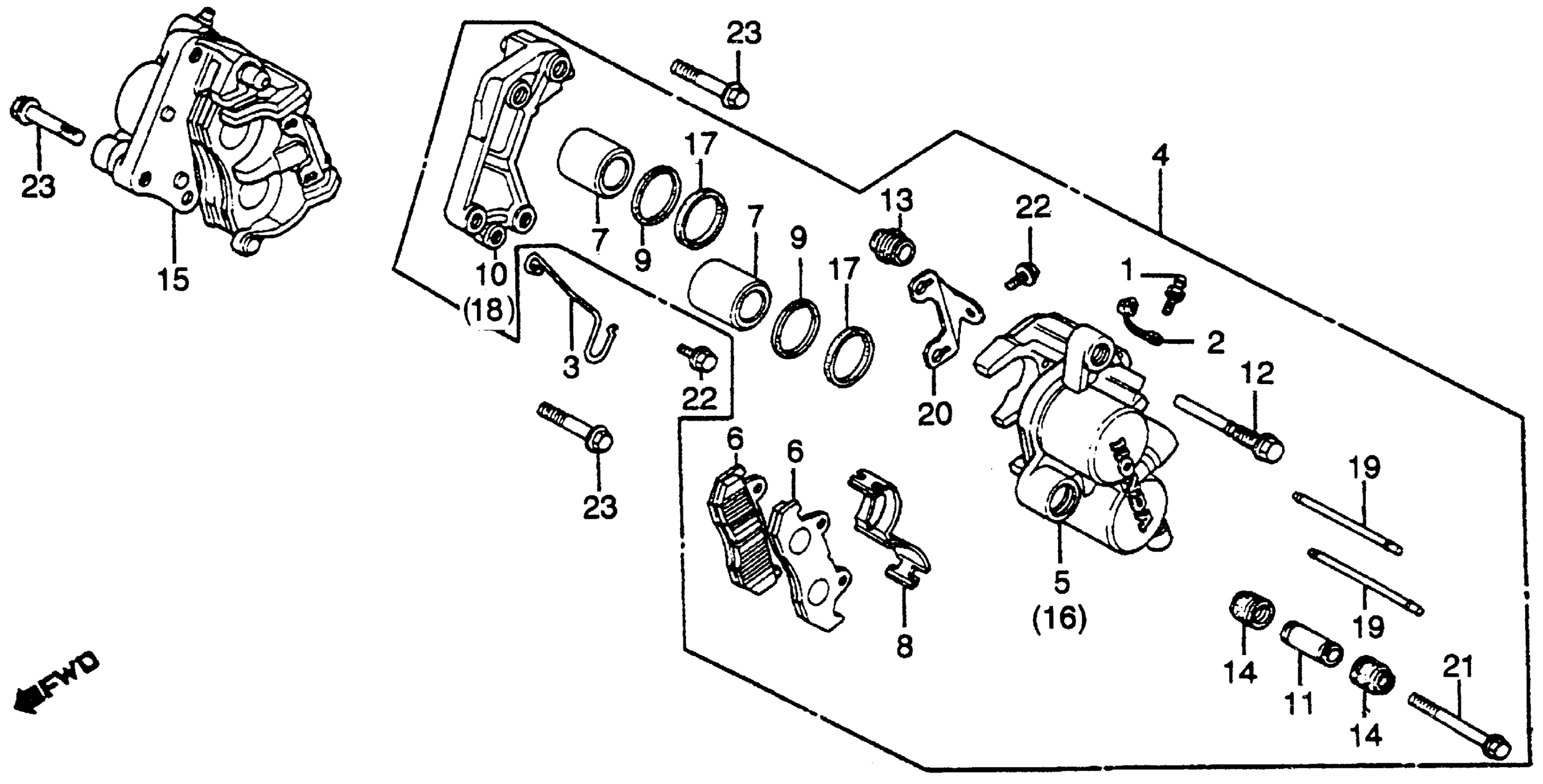

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 451A0-MC7-670.

06435-MC7-405

Unavailable

1

SCREW, BLEEDER

43352-568-003

$7.95

2

CAP, BLEEDER

43353-461-771

$5.05

3

CLAMP, SPEEDOMETER CABLE

44832-ME2-000

$9.67

4

CALIPER ASSY., L. FR. (NOT AVAILABLE)

45100-ME2-006

Unavailable

4

CALIPER ASSY., L. FR. (NOT AVAILABLE) This part replaces 45100-ME2-007.

45100-ME2-006

Unavailable

5

CALIPER, L.

45101-MA3-006

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-KL8-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-004.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-007.

45105-KL8-014

Unavailable

6

PAD (JB) (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE) This part replaces 45105-MC7-014.

45105-KL8-014

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. FR.

45110-445-632

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

PIN, BOLT

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

15

CALIPER ASSY., R. FR.

45200-MC5-006

Unavailable

15

CALIPER ASSY., R. FR. This part replaces 45200-MC5-007.

45200-MC5-006

Unavailable

16

CALIPER, R. (NOT AVAILABLE)

45201-MA3-006

Unavailable

16

CALIPER, R. (NOT AVAILABLE) This part replaces 45201-MC7-006.

45201-MA3-006

Unavailable

17

SEAL, PISTON

45209-166-006

$8.64

18

BRACKET, R. FR. (NOT AVAILABLE)

45210-445-632

Unavailable

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MA3-006

$4.45

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

22

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

23

BOLT, FLANGE (10X40) This part replaces 95800-10040-00.

95801-10040-00

$2.19

23

BOLT, FLANGE (10X40)

95801-10040-00

$2.19
