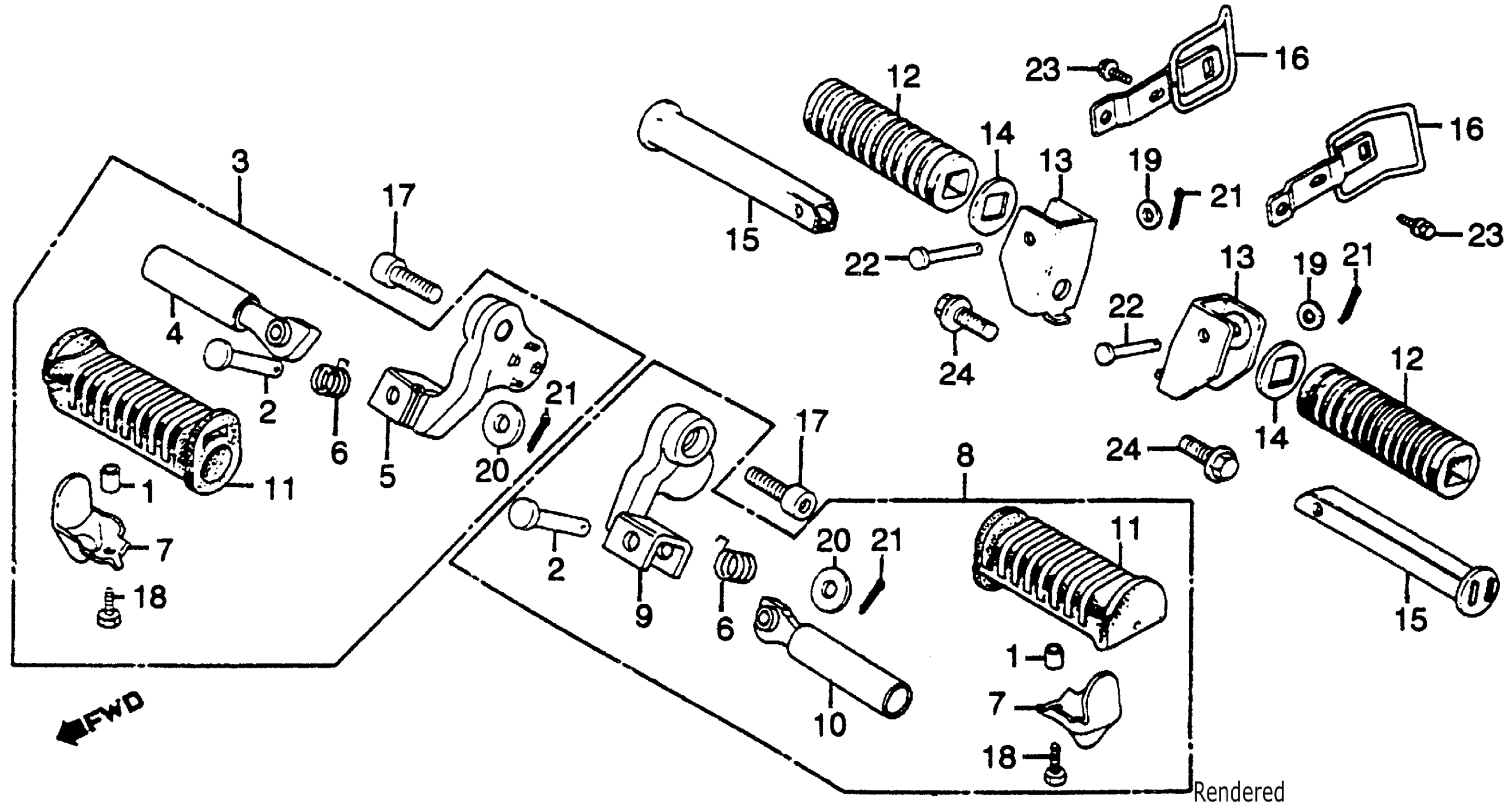

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 FOOTPEGS Diagram

#

Description
Price

1

COLLAR, INSTRUMENT SETTING

37243-323-000

Unavailable

2

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

2

PIN, STEP BAR JOINT

50603-033-010

$3.30

3

FOOTPEG ASSY., R.

50610-ME2-000

Unavailable

4

ARM, R. FOOTPEG (NOT AVAILABLE)

50612-ME2-000

Unavailable

5

ARM, R. FOOTPEG

50615-ME2-000

Unavailable

6

SPRING, FOOTPEG RETURN (NOT AVAILABLE)

50617-438-000

Unavailable

7

STOPPER, STEP RUBBER

50619-KC2-770

Unavailable

7

STOPPER, STEP RUBBER This part replaces 50619-460-840.

50619-KC2-770

Unavailable

8

FOOTPEG ASSY., L. (NOT AVAILABLE)

50620-ME2-000

Unavailable

9

ARM, L. FOOTPEG

50625-ME2-000

Unavailable

10

ARM, L. FOOTPEG (NOT AVAILABLE)

50650-MA5-770

Unavailable

11

RUBBER, FOOTPEG

50661-425-670

$13.34

12

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$14.21

12

RUBBER, PILLION FOOTPEG

50716-371-660

$14.21

13

BRACKET, PILLION FOOTPEG

50711-415-010

Unavailable

14

WASHER, PILLION FOOTPEG

50712-413-000

$3.47

15

BAR, PILLION STEP (COO) This part replaces 50715-413-000.

50715-413-305

$17.81

16

BRACKET, BUCKLE (NOT AVAILABLE)

81279-MA1-000

Unavailable

17

BOLT, SOCKET (10X25)

90117-ME8-000

Unavailable

17

BOLT, SOCKET (10X25) This part replaces 90117-449-000.

90117-ME8-000

Unavailable

18

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

18

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

19

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

19

WASHER, PLAIN (6MM)

94101-06800

$1.49

20

WASHER, PLAIN (8MM)

94101-08000

$1.49

21

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

21

PIN, COTTER (1.6X25)

94201-16250

$1.49

22

PIN B, PILLION FOOTPEG

95015-82000

$2.41

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

23

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

24

BOLT, FLANGE (10X20) This part replaces 95700-10020-00.

95701-10020-00

$2.23

24

BOLT, FLANGE (10X20)

95701-10020-00

$2.23
