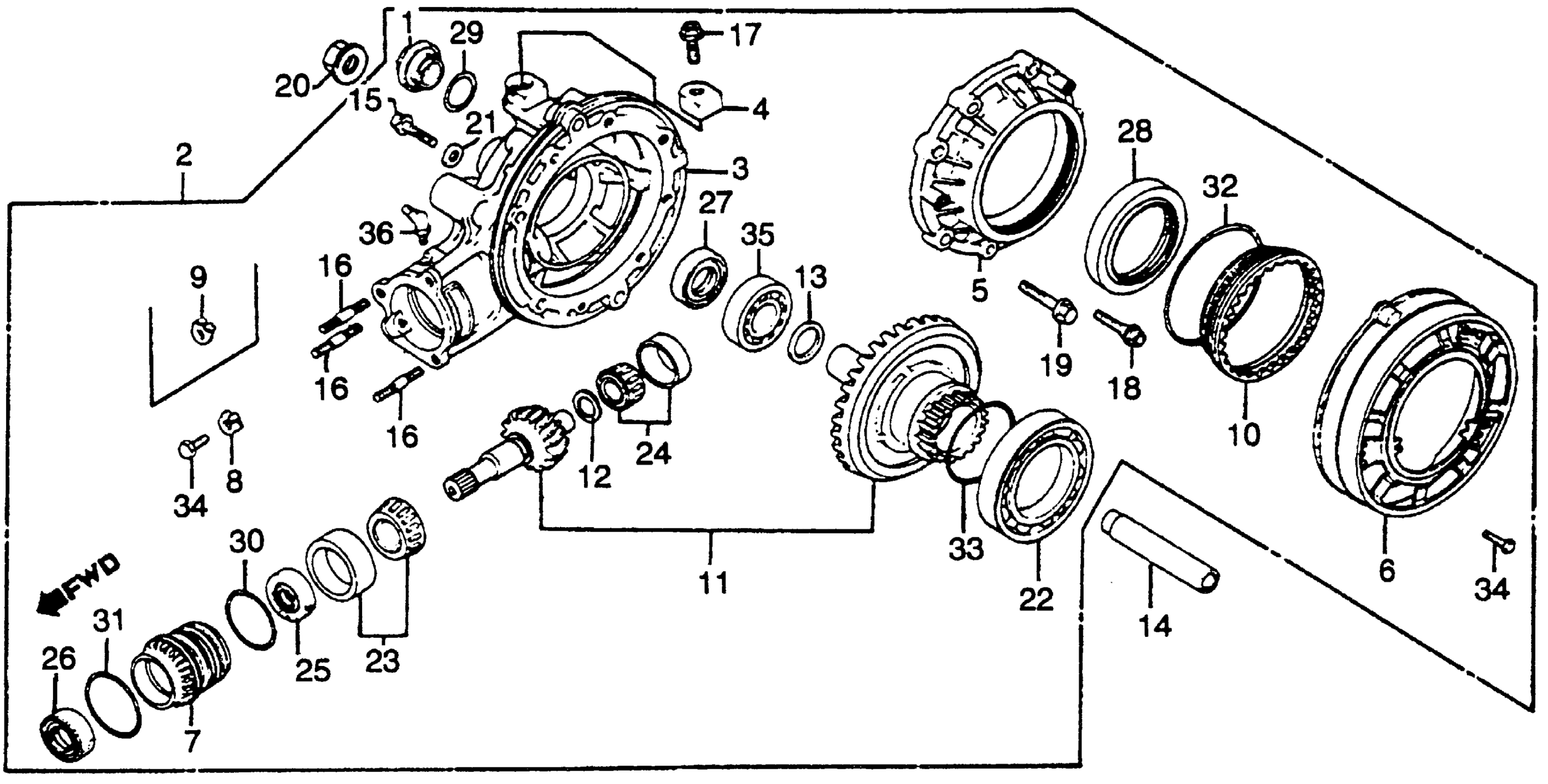

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

1

CAP, VALVE ADJ.

12361-300-000

Unavailable

1

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

2

GEAR ASSY., FINAL DRIVEN (NOT AVAILABLE)

41300-ME2-000

Unavailable

3

CASE, FINAL GEAR

41301-MC7-000

Unavailable

4

CAP, BREATHER

41306-MC7-000

Unavailable

5

COVER, L. GEAR CASE

41321-MC7-000

Unavailable

6

PLATE, DUST GUARD (NOT AVAILABLE)

41324-MC7-000

Unavailable

7

RETAINER B, BEARING

41331-MC7-000

Unavailable

8

LOCK A, BEARING ADJ.

41332-MC7-000

Unavailable

9

LOCK B, BEARING ADJ. (NOT AVAILABLE)

41333-MC7-000

Unavailable

10

RETAINER A, BEARING

41351-371-000

Unavailable

11

GEAR SET, FINAL DRIVEN

41310-MC7-305

Unavailable

11

GEAR SET, FINAL DRIVEN This part replaces 414A3-MC7-000.

41310-MC7-305

Unavailable

12

SHIM A, PINION GEAR (1.10) (NOT AVAILABLE)

41450-415-000

Unavailable

12

SHIM B, PINION GEAR (1.14) (NOT AVAILABLE)

41451-415-000

Unavailable

12

SHIM C, PINION GEAR (1.18) (NOT AVAILABLE)

41452-415-000

Unavailable

12

SHIM D, PINION GEAR (1.22) (NOT AVAILABLE)

41453-415-000

Unavailable

12

SHIM E, PINION GEAR (1.26) (NOT AVAILABLE)

41454-415-000

Unavailable

12

SHIM F, PINION GEAR (1.30) (NOT AVAILABLE)

41455-415-000

Unavailable

12

SHIM G, PINION GEAR (1.34) (NOT AVAILABLE)

41456-415-000

Unavailable

12

SHIM H, PINION GEAR (1.38) (NOT AVAILABLE)

41457-415-000

Unavailable

12

SHIM I, PINION GEAR (1.42) (NOT AVAILABLE)

41458-415-000

Unavailable

12

SHIM J, PINION GEAR (1.46) (NOT AVAILABLE)

41459-415-000

Unavailable

12

SHIM K, PINION GEAR (1.50) (NOT AVAILABLE)

41460-415-000

Unavailable

12

SHIM L, PINION GEAR (1.54) (NOT AVAILABLE)

41461-415-000

Unavailable

12

SHIM M, PINION GEAR (1.58) (NOT AVAILABLE)

41462-415-000

Unavailable

12

SHIM N, PINION GEAR (1.62) (NOT AVAILABLE)

41463-415-000

Unavailable

12

SHIM O, PINION GEAR (1.66) (NOT AVAILABLE)

41464-415-000

Unavailable

12

SHIM P, PINION GEAR (1.70) (NOT AVAILABLE)

41465-415-000

Unavailable

12

SHIM Q, PINION GEAR (1.74) (NOT AVAILABLE)

41466-415-000

Unavailable

12

SHIM R, PINION GEAR (1.78) (NOT AVAILABLE)

41467-415-000

Unavailable

12

SHIM S, PINION GEAR (1.82) (NOT AVAILABLE)

41468-415-000

Unavailable

12

SHIM T, PINION GEAR (1.86) (NOT AVAILABLE)

41469-415-000

Unavailable

12

SHIM U, PINION GEAR (1.90) (NOT AVAILABLE)

41470-415-000

Unavailable

13

SHIM A, RING GEAR (1.80) (NOT AVAILABLE)

41510-415-000

Unavailable

13

SHIM B, RING GEAR (1.84) (NOT AVAILABLE)

41511-415-000

Unavailable

13

SHIM C, RING GEAR (1.88)

41512-415-000

Unavailable

13

SHIM D, RING GEAR (1.92) (NOT AVAILABLE)

41513-415-000

Unavailable

13

SHIM E, RING GEAR (1.96) (NOT AVAILABLE)

41514-415-000

Unavailable

13

SHIM F, RING GEAR (2.00) (NOT AVAILABLE)

41515-415-000

Unavailable

13

SHIM G, RING GEAR (2.04)

41516-415-000

Unavailable

13

SHIM H, RING GEAR (2.08) (NOT AVAILABLE)

41517-415-000

Unavailable

13

SHIM I, RING GEAR (2.12)

41518-415-000

Unavailable

13

SHIM J, RING GEAR (2.16) (NOT AVAILABLE)

41519-415-000

Unavailable

13

SHIM K, RING GEAR (2.20) (NOT AVAILABLE)

41520-415-000

Unavailable

13

SHIM L, RING GEAR (2.24)

41521-415-000

Unavailable

13

SHIM M, RING GEAR (2.28) (NOT AVAILABLE)

41522-415-000

Unavailable

13

SHIM N, RING GEAR (2.32) (NOT AVAILABLE)

41523-415-000

Unavailable

14

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42623-MC7-000

Unavailable

15

BOLT, SEALING (8MM)

90109-371-000

$2.58

16

BOLT, STUD (10X45) (NOT AVAILABLE)

90125-371-000

Unavailable

17

BOLT, BREATHER

90126-MC7-000

Unavailable

18

BOLT, FLANGE (8X32)

90133-371-000

Unavailable

19

BOLT, FLANGE (10X38) (NOT AVAILABLE)

90134-371-000

Unavailable

20

NUT, RR. AXLE U (16MM) This part replaces 90305-MA6-003.

90305-MC0-003

Unavailable

20

NUT, RR. AXLE U (16MM)

90305-MC0-003

Unavailable

21

WASHER (8MM)

90471-580-000

$2.92

22

BEARING (6914) (KOYO SEIKO) This part replaces 91051-371-003.

91051-371-004

Unavailable

22

BEARING (6914) (KOYO SEIKO)

91051-371-004

Unavailable

22

BEARING (6914) (KOYO SEIKO) This part replaces 91051-371-005.

91051-371-004

Unavailable

23

BEARING (30206C) (TOYO) (NOT AVAILABLE) This part replaces 91061-463-004.

91061-463-008

Unavailable

23

BEARING (30206C) (TOYO) (NOT AVAILABLE)

91061-463-008

Unavailable

24

BEARING, TAPER (30203) This part replaces 91062-415-013.

91121-PH8-961

Unavailable

24

BEARING, TAPER (30203)

91121-PH8-961

Unavailable

25

OIL SEAL (30X51X10) (NOT AVAILABLE)

91261-463-013

Unavailable

26

OIL SEAL (33X43X7) (NOT AVAILABLE)

91262-415-003

Unavailable

27

OIL SEAL (30X47X7)

91264-415-003

Unavailable

28

OIL SEAL (70X90X8)

91265-371-003

Unavailable

29

O-RING (30.8MM)

91302-001-020

$3.75

30

O-RING (57X4.3) (NOT AVAILABLE)

91353-463-005

Unavailable

31

O-RING (60.5X2.4)

91354-463-003

Unavailable

32

O-RING (96.5X2.0)

91355-371-003

Unavailable

33

O-RING (62.7X4) (NOT AVAILABLE)

91356-415-003

Unavailable

34

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

35

BEARING, RADIAL BALL (6006)

96100-60063-00

$15.03

36

FITTING, GREASE (B.76S)

96201-80000

$2.56
