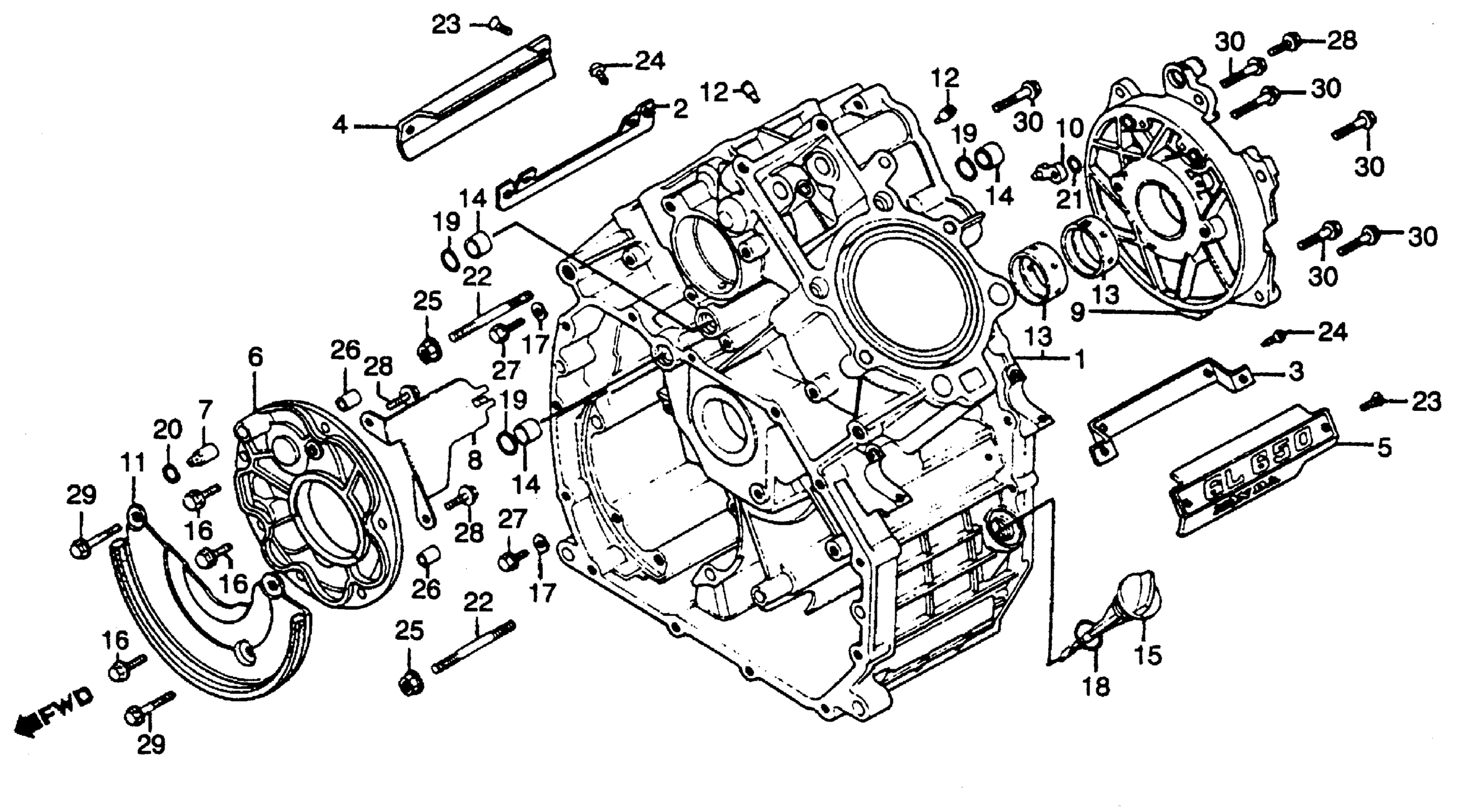

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 CYLINDER BLOCK Diagram

#

Description
Price

1

BLOCK, CYLINDER

11100-ME2-000

Unavailable

2

SPACER, R. EMBLEM

11102-ME2-000

Unavailable

3

SPACER, L. EMBLEM (NOT AVAILABLE)

11103-ME2-000

Unavailable

4

EMBLEM, R. CYLINDER BLOCK (NOT AVAILABLE)

11104-ME2-000

Unavailable

5

EMBLEM, L. CYLINDER BLOCK (NOT AVAILABLE)

11105-ME2-000

Unavailable

6

HOLDER, TRANSMISSION

11131-MC7-000

Unavailable

7

ORIFICE (8MM) (NOT AVAILABLE)

11132-MC7-000

Unavailable

8

PLATE, TRANSMISSION HOLDER (NOT AVAILABLE)

11133-415-000

Unavailable

9

CAP, CRANKSHAFT

11140-ME2-000

Unavailable

10

JET, R. OIL

11146-ME2-000

Unavailable

11

SEPARATOR, OIL

11365-ME2-000

Unavailable

12

VALVE, OIL CONTROL ORIFICE

12901-413-000

Unavailable

13

BEARING A, MAIN (BLUE)

13323-MC7-305

Unavailable

13

BEARING B, MAIN (BLACK)

13324-MC7-305

Unavailable

13

BEARING C, MAIN (BROWN) (NOT AVAILABLE)

13325-MC7-305

Unavailable

14

COLLAR, O-RING

15155-300-000

$3.47

15

DIPSTICK, OIL

15650-MK7-670

Unavailable

15

DIPSTICK, OIL This part replaces 15650-449-000.

15650-MK7-670

Unavailable

16

BOLT, FLANGE (6X20)

90003-MB2-000

Unavailable

16

BOLT, FLANGE (6X20) This part replaces 90003-MC7-000.

90003-MB2-000

Unavailable

17

WASHER, SEALING (6.2X12X1.2) This part replaces 90461-357-000.

90463-KRM-840

$1.49

18

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

18

O-RING (22X3.0)

91307-425-003

$2.59

19

O-RING (13.6X2.4)

91301-268-020

$2.95

20

O-RING (8X1.7) (ARAI) This part replaces 91303-001-000.

91306-HB3-003

$1.81

20

O-RING (8X1.7) (ARAI)

91306-HB3-003

$1.81

21

O-RING (8.2X1.5)

91308-MC7-000

$2.31

22

BOLT, STUD (10X90)

92700-10090-0B

Unavailable

23

SCREW, OVAL (4X8)

93700-04008-0G

Unavailable

24

SCREW, TAPPING (4X8)

93901-34120

$1.49

25

NUT, FLANGE (10MM)

94050-10000

$1.59

26

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

28

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

28

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

29

BOLT, FLANGE (6X32) This part replaces 95700-06032-00.

95701-06032-00

$1.89

29

BOLT, FLANGE (6X32)

95701-06032-00

$1.89

30

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

30

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
