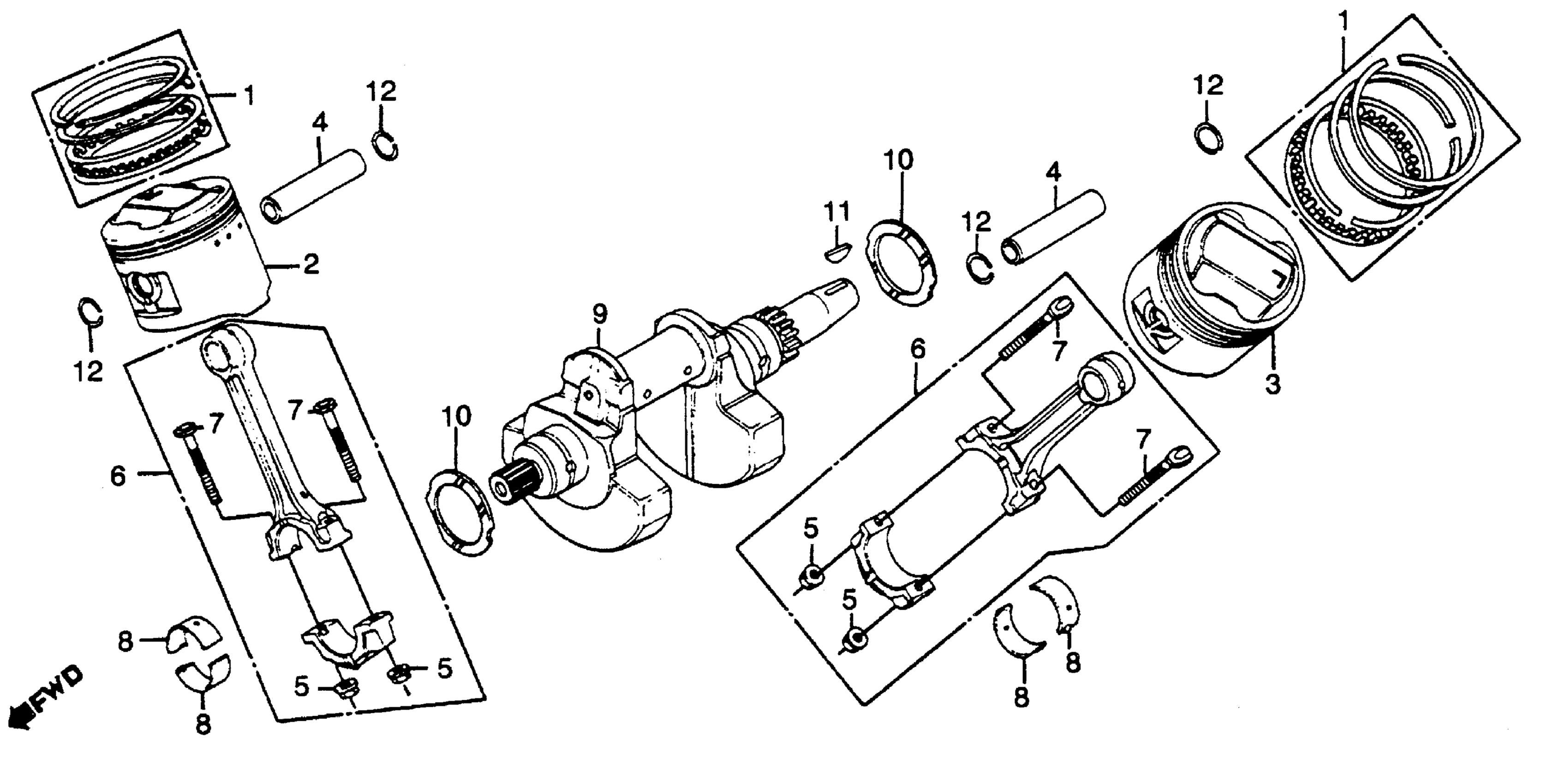

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

RING SET, PISTON (STD) (RIKEN) (NOT AVAILABLE)

13011-ME2-004

Unavailable

1

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

13021-ME2-004

Unavailable

1

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

13031-ME2-004

Unavailable

2

PISTON, R. (STD) (NOT AVAILABLE)

13101-ME2-000

Unavailable

2

PISTON, R. (0. 25) (NOT AVAILABLE)

13103-ME2-000

Unavailable

2

PISTON, R. (0. 50)

13105-ME2-000

Unavailable

3

PISTON, L. (STD)

13102-ME2-000

Unavailable

3

PISTON, L. (0. 25) (NOT AVAILABLE)

13104-ME2-000

Unavailable

3

PISTON, L. (OS 0.50) (NOT AVAILABLE)

13106-ME2-000

Unavailable

4

PIN, PISTON

13111-ME2-000

Unavailable

5

NUT, CONNECTING ROD

13205-ME2-000

$5.26

6

ROD ASSY., CONNECTING

13210-ME2-000

Unavailable

7

BOLT, CONNECTING ROD

13213-ME2-000

$10.19

8

BEARING B, CONNECTING ROD (NOT AVAILABLE)

13216-ME2-003

Unavailable

8

BEARING C, CONNECTING ROD

13217-ME2-003

Unavailable

8

BEARING D, CONNECTING ROD (NOT AVAILABLE)

13218-ME2-003

Unavailable

8

BEARING E, CONNECTING ROD

13219-ME2-003

Unavailable

8

BEARING F, CONNECTING ROD

13220-ME2-003

Unavailable

9

CRANKSHAFT (NOT AVAILABLE)

13300-ME2-000

Unavailable

10

WASHER, CRANK SIDE

13326-ME2-003

Unavailable

11

KEY, SPECIAL WOODRUFF (25X18)

13331-357-000

$3.60

12

CLIP, PISTON PIN (21MM)

94601-21000

$1.49
