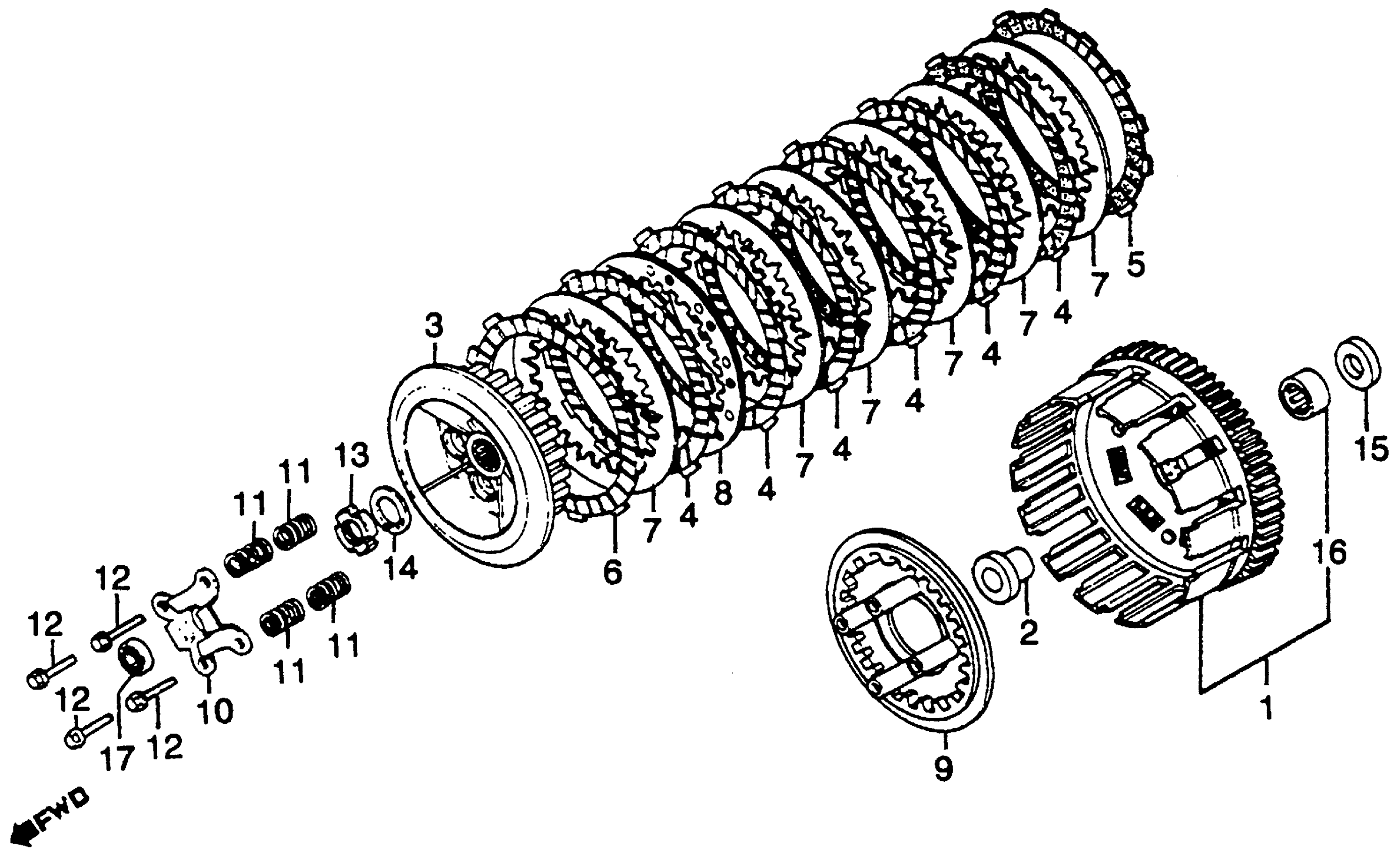

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER) (NOT AVAILABLE)

22100-ME2-000

Unavailable

2

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE) This part replaces 22116-ME2-000.

22116-ME7-000

Unavailable

3

CENTER, CLUTCH (NOT AVAILABLE)

22120-ME2-000

Unavailable

4

DISK, CLUTCH FRICTION This part replaces 22201-ME2-000.

22201-415-306

$14.33

4

DISK, CLUTCH FRICTION This part replaces 22201-415-000.

22201-415-306

$14.33

4

DISK, CLUTCH FRICTION

22201-415-306

$14.33

5

DISK, CLUTCH FRICTION

22201-286-010

$19.81

6

DISK B, CLUTCH FRICTION This part replaces 22202-390-000.

22202-392-000

$20.20

6

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

7

PLATE B, CLUTCH

22321-329-000

$16.92

8

PLATE B, CLUTCH (NOT AVAILABLE)

22322-390-000

Unavailable

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-ME2-000

Unavailable

10

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-415-000

Unavailable

11

SPRING, CLUTCH (NOT AVAILABLE)

22401-ME2-000

Unavailable

12

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

13

NUT, LOCK (20MM)

90204-426-000

Unavailable

14

WASHER, LOCK

90432-121-000

$4.21

15

WASHER, THRUST (25MM) (NOT AVAILABLE)

90453-ME2-000

Unavailable

16

BEARING, NEEDLE (32X42X20) (NOT AVAILABLE)

91021-ME2-003

Unavailable

17

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
