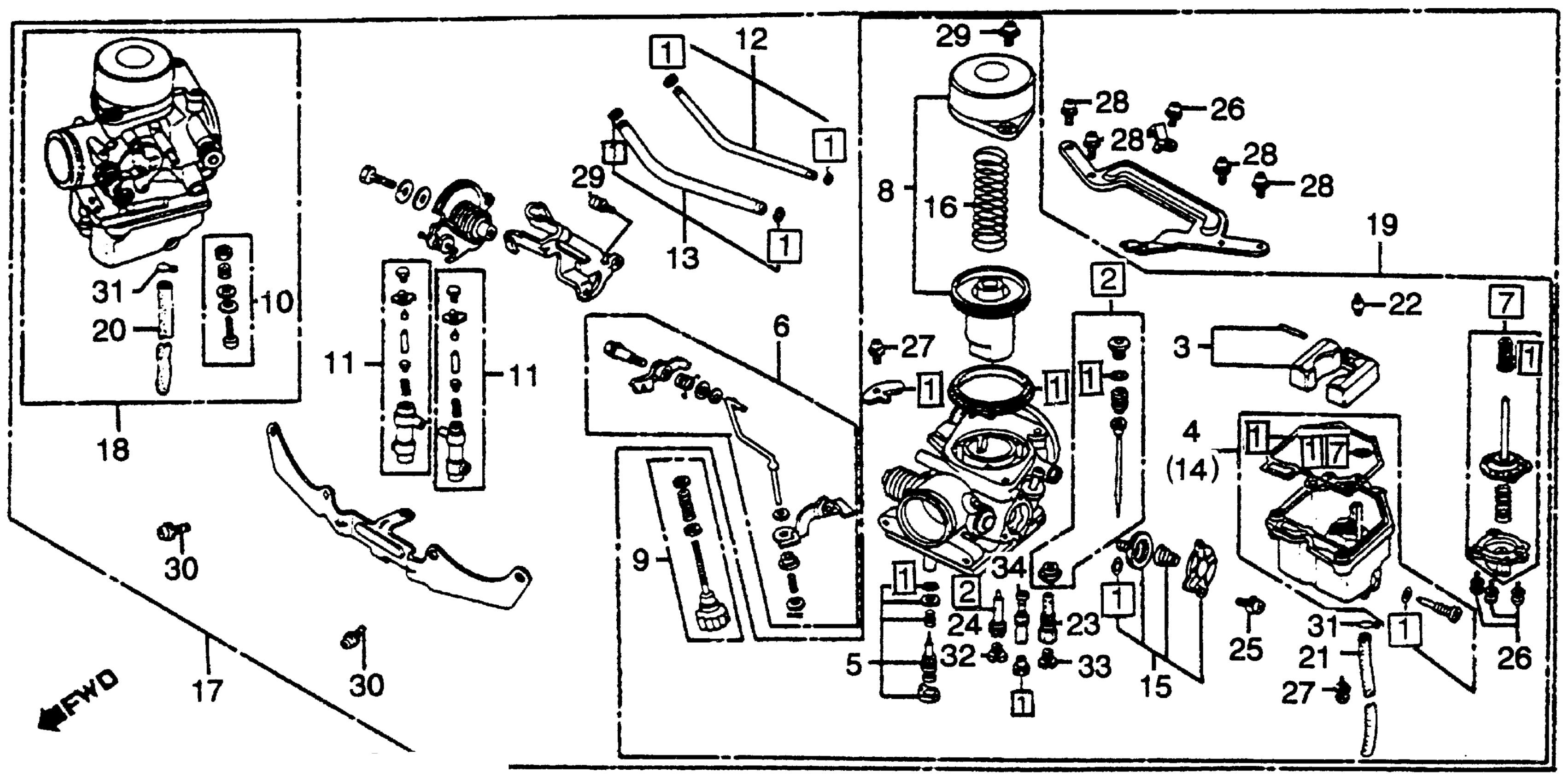

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-ME2-305

Unavailable

1

GASKET SET This part replaces 16010-ME2-671.

16010-ME2-305

Unavailable

2

NEEDLE SET, JET (NOT AVAILABLE)

16012-ME2-671

Unavailable

3

FLOAT SET This part replaces 16013-413-751.

16013-413-851

$90.77

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-MC8-671

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

ROD SET, PUMP

16019-ME2-671

Unavailable

7

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-ME2-671

Unavailable

8

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-470-671.

16022-449-771

Unavailable

9

SCREW SET B (NOT AVAILABLE)

16028-ME2-671

Unavailable

10

SCREW SET C

16029-PC6-005

Unavailable

10

SCREW SET C This part replaces 16029-443-851.

16029-PC6-005

Unavailable

11

HOLDER SET, ADJ.

16030-ME2-671

Unavailable

12

JOINT SET, FUEL (NOT AVAILABLE)

16034-ME2-671

Unavailable

13

JOINT SET, FUEL (NOT AVAILABLE)

16037-ME2-671

Unavailable

14

CHAMBER SET C, FLOAT (NOT AVAILABLE) This part replaces 16045-425-671.

16045-425-871

Unavailable

15

VALVE SET, AIR CUT This part replaces 16048-KB7-004.

16048-KB7-901

$149.08

15

VALVE SET, AIR CUT

16048-KB7-901

$149.08

16

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-ME2-671

Unavailable

17

CARBURETOR ASSY.

16100-ME2-671

Unavailable

18

CARBURETOR ASSY., R.

16101-ME2-671

Unavailable

19

CARBURETOR ASSY., L.

16102-ME2-671

Unavailable

20

TUBE This part replaces 16144-MA1-671.

16199-MN5-405

$11.86

21

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

21

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

22

VALVE, FLOAT

16155-413-751

$32.50

23

HOLDER, NEEDLE JET

16165-449-771

$31.28

24

NOZZLE, MAIN (NOT AVAILABLE)

16166-ME2-671

Unavailable

25

SCREW-WASHER (4X10)

93892-04010-00

$1.49

26

SCREW-WASHER (4X12)

93892-04012-00

$1.49

27

SCREW-WASHER (4X16)

93892-04016-00

$1.49

28

SCREW-WASHER (5X12)

93892-05012-00

$1.49

29

SCREW-WASHER (5X16)

93892-05016-00

$1.49

30

SCREW-WASHER (6X14)

93892-06014-00

$1.49

31

CLIP, TUBE (B6.5)

95002-02650

$1.49

32

JET, MAIN (#78) This part replaces 99101-393-0780.

99101-GHB-0780

Unavailable

33

JET, MAIN (#118) This part replaces 99101-GHB-1180.

99101-MBZ-1180

$10.56

33

JET, MAIN (#118) This part replaces 99101-393-1180.

99101-MBZ-1180

$10.56

33

JET, MAIN (#118) This part replaces 99102-393-1180.

99101-MBZ-1180

$10.56

34

JET, SLOW (#45) This part replaces 99103-MA1-0450.

99104-KPF-0450

$11.86

34

JET, SLOW (#45)

99104-KPF-0450

$11.86
