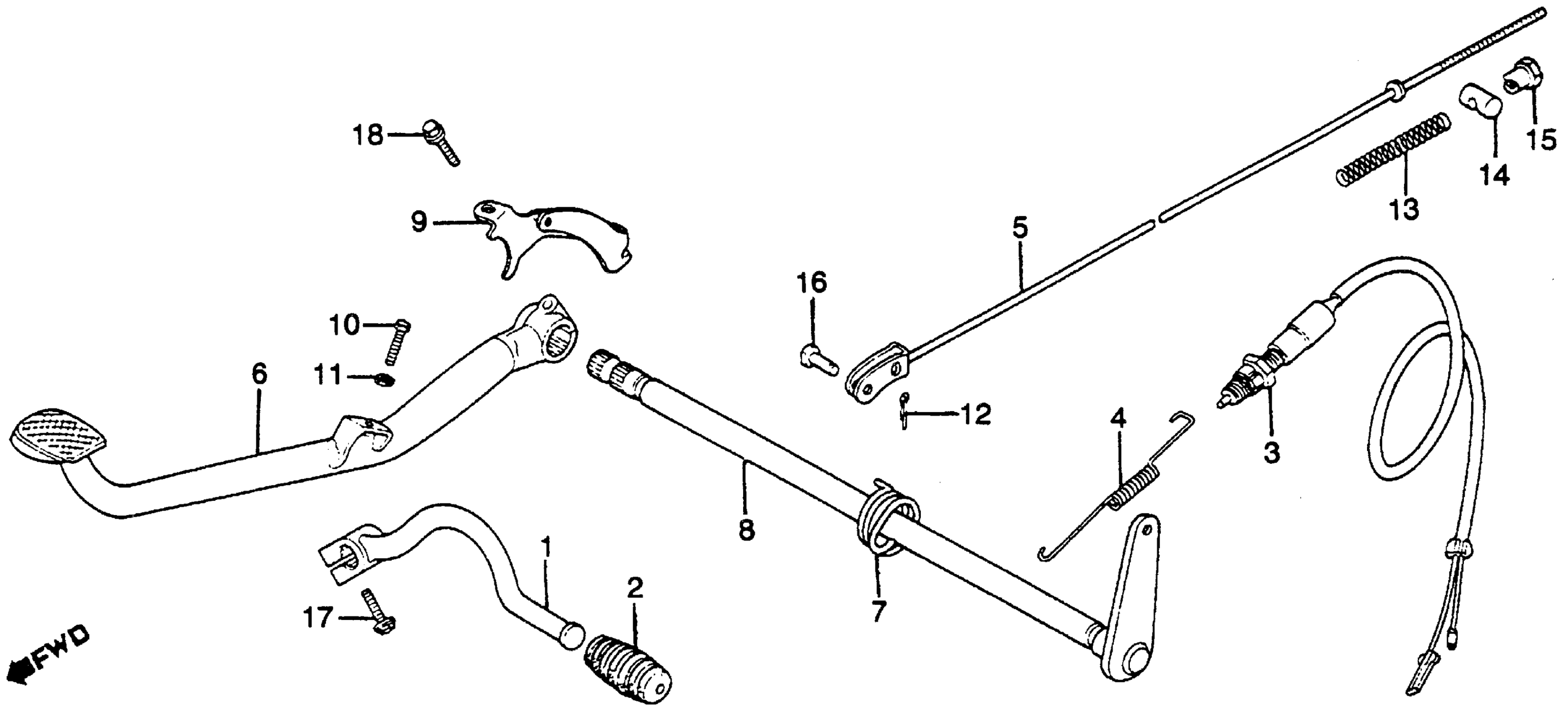

Honda GL650A (83) SILVER WING, JPN, VIN# JH2RC100-DM000004 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-MA1-000

Unavailable

2

RUBBER, GEARSHIFT

24781-449-000

$3.22

3

SWITCH ASSY., RR. STOP This part replaces 35350-MA1-003.

35350-MA1-405

$16.20

3

SWITCH ASSY., RR. STOP

35350-MA1-405

$16.20

4

SPRING, STOP SWITCH This part replaces 35357-MA1-000.

35357-MJ1-000

Unavailable

4

SPRING, STOP SWITCH

35357-MJ1-000

Unavailable

5

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43450-MA1-000.

43450-405-000

Unavailable

6

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-ME2-000

Unavailable

7

SPRING, RR. BRAKE

46514-MA1-000

Unavailable

8

SHAFT, RR. BRAKE PIVOT

46515-ME2-000

Unavailable

9

ARM, RR. STOP SWITCH (NOT AVAILABLE)

50313-MA1-730

Unavailable

10

BOLT, HEX. (6X25) This part replaces 92025-06025.

92025-06025-0A

$0.96

10

BOLT, HEX. (6X25)

92025-06025-0A

$0.96

11

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

11

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

11

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

11

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

11

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

11

NUT, HEX. (6MM)

94001-06200-0S

$1.19

11

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

12

PIN, COTTER (1.6X12)

94201-16120

$0.94

13

SPRING A, BRAKE ROD

95014-73100

$1.17

14

JOINT, BRAKE ARM

95015-32001

$0.86

15

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.75

16

PIN B, BRAKE ROD JOINT

95015-52000

$1.94

17

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.61

17

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.61

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.61

17

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.61

18

BOLT, FLANGE (6X28)

95700-06028-00

$1.65

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.65
