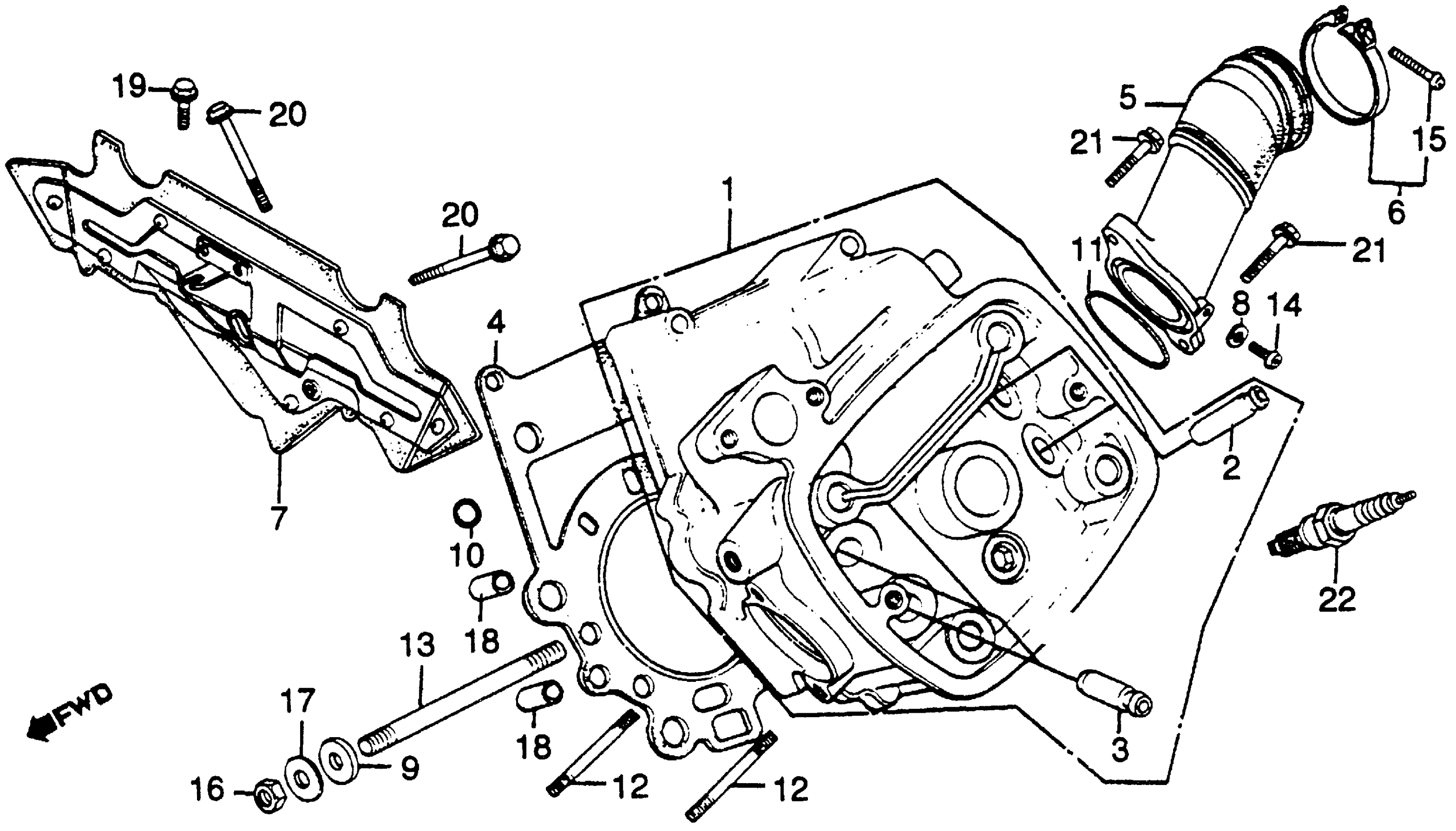

Honda GL500IA (82) SILVER WING INTERSTATE, JPN, VIN# JH2PC021-CM100001 LEFT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD, L. This part replaces 12210-MA1-000.

12210-MA1-020

Unavailable

2

GUIDE, IN VALVE This part replaces 12231-415-305.

12233-MG8-405

Unavailable

2

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE

12233-MG8-405

Unavailable

3

GUIDE, IN VALVE This part replaces 12241-415-305.

12233-MG8-405

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-014.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-024.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD This part replaces 12251-415-034.

12251-415-306

Unavailable

4

GASKET, CYLINDER HEAD

12251-415-306

Unavailable

5

INSULATOR, L. CARBURETOR

16221-MA1-000

Unavailable

6

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 17255-356-000.

95018-56200

$8.57

6

BAND, AIR CLEANER CONNECTING TUBE (56) This part replaces 90651-GHB-710.

95018-56200

$8.57

6

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56200

$8.57

7

SPOILER, AIR (NOT AVAILABLE)

19530-MA1-000

Unavailable

8

WASHER, SEALING (5MM)

90452-323-000

$1.52

10

O-RING (6.9X1.5)

91302-044-013

Unavailable

11

O-RING (40X2.4)

91325-413-830

$7.83

11

O-RING (40X2.4) This part replaces 91325-567-005.

91325-413-830

$7.83

12

BOLT, STUD (6X55) This part replaces 92700-06055.

92700-06055-0B

$1.41

12

BOLT, STUD (6X55)

92700-06055-0B

$1.41

13

BOLT, STUD (10X80) This part replaces 92700-10100.

92900-10080-0B

$3.45

13

BOLT, STUD (10X80)

92900-10080-0B

$3.45

14

SCREW, PAN (5X8)

93500-05008-0A

$0.80

15

SCREW, PAN (5X20)

93500-05020-0G

$0.75

16

NUT, FLANGE (10MM)

94050-10000

$1.41

18

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.04

19

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

20

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$1.97

20

BOLT, FLANGE (6X50)

95701-06050-00

$1.97

21

BOLT, FLANGE (6X22) This part replaces 96000-06022-00.

96001-06022-00

$1.13

21

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

22

SPARK PLUG (DR8ES-L) (NGK) This part replaces 98069-38716.

98069-38719

$2.00

22

SPARK PLUG (DR8ES-L) (NGK)

98069-38719

$2.00

22

SPARK PLUG (X24ESR-U) (DENSO)

98069-58726

$2.25

22

SPARK PLUG (DR8ES) (NGK) | (Optional). This part replaces 98069-58716.

98069-58719

$2.32

22

SPARK PLUG (DR8ES) (NGK) | (Optional).

98069-58719

$2.32

22

SPARK PLUG (X27ESR-U) (DENSO) | (Optional).

98069-59726

$2.25
