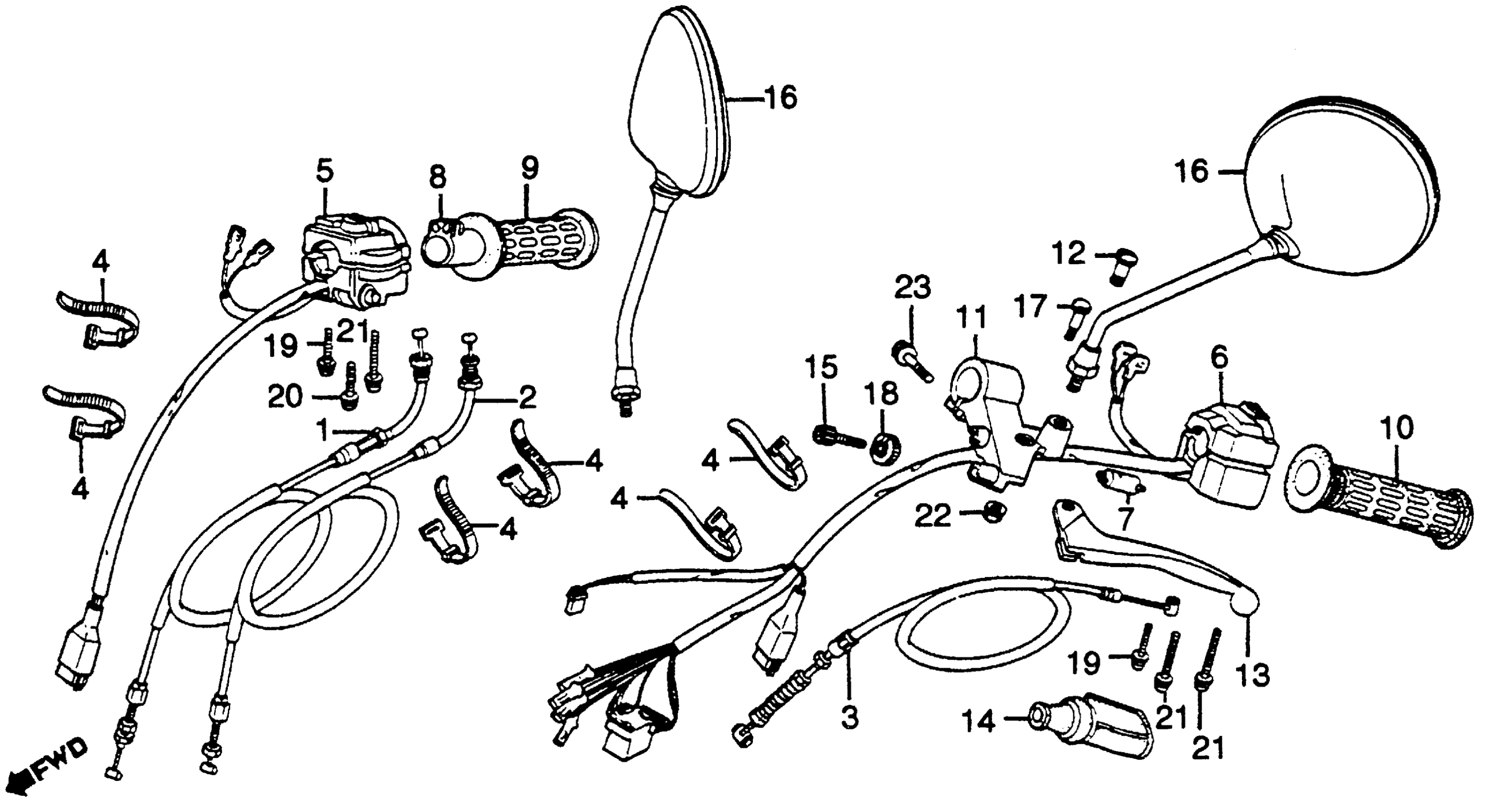

Honda GL500IA (82) SILVER WING INTERSTATE, JPN, VIN# JH2PC021-CM100001 HANDLE LEVER + SWITCH MIRROR Diagram

CABLE A, THROTTLE (NOT AVAILABLE)

17910-MA1-000

Unavailable

CABLE B, THROTTLE (NOT AVAILABLE)

17920-MA1-000

Unavailable

CABLE, CLUTCH This part replaces 22870-MA1-000.

22870-ME2-000

Unavailable

CABLE, CLUTCH

22870-ME2-000

Unavailable

BAND B1, CABLE

32161-404-000

$2.23

SWITCH ASSY., STARTER ENGINE STOP (NOT AVAILABLE)

35130-MA1-670

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE) This part replaces 35200-MA1-670.

35200-MA1-770

Unavailable

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-MA1-770

Unavailable

SWITCH, FR. LEVER

35330-413-003

$21.91

PIPE, THROTTLE GRIP

53141-300-010

$20.93

GRIP, R. HANDLEBAR

53165-390-780

$10.88

GRIP, L. HANDLEBAR

53166-390-780

$10.88

BRACKET, L. HANDLEBAR

53172-425-003

Unavailable

PLUG, HANDLEBAR BRACKET

53174-116-670

$2.48

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

LEVER, L. HANDLE This part replaces 53178-425-003.

53178-461-000

Unavailable

LEVER, L. HANDLE

53178-461-000

Unavailable

BOOT, HANDLEBAR This part replaces 53180-425-000.

53180-425-010

$18.53

BOOT, HANDLEBAR

53180-425-010

$18.53

BOLT, CABLE ADJUSTING

53192-422-000

Unavailable

BOLT, CABLE ADJUSTING This part replaces 53192-425-000.

53192-422-000

Unavailable

BOLT, L. HANDLEBAR CONTROL LEVER PIVOT

90113-422-000

$8.96

NUT, FIXING

90321-422-000

Unavailable

SCREW-WASHER (5X30)

93891-05030-07

$1.49

SCREW-WASHER (5X40) (NOT AVAILABLE)

93891-05040-07

Unavailable

SCREW-WASHER (5X45)

93891-05045-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

BOLT, FLANGE (6X25)

95701-06025-07

$1.80
