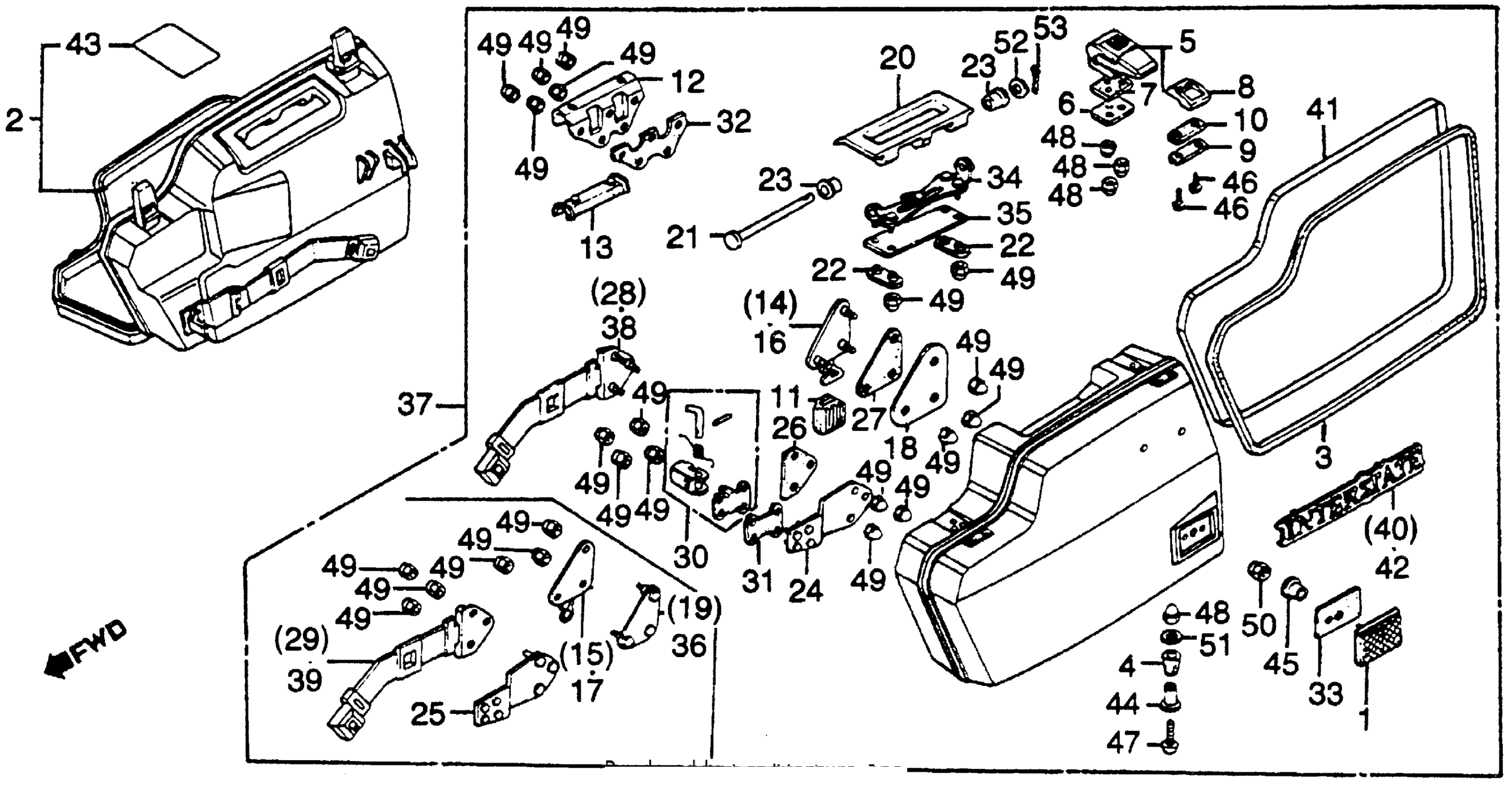

Honda GL500IA (82) SILVER WING INTERSTATE, JPN, VIN# JH2PC021-CM100001 GL500I SADDLEBAG Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX This part replaces 33741-415-601.

33741-415-602

Unavailable

1

REFLECTOR, RR. REFLEX

33741-415-602

Unavailable

2

SADDLEBAG ASSY., R. *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

81200-MA1-740ZA

Unavailable

2

SADDLEBAG ASSY., R. *NH118MU* (STERLING SILVER METALLIC) (NOT AVAILABLE)

81200-MA1-740ZB

Unavailable

3

RUBBER, SADDLEBAG SEAL

81213-MA1-770

Unavailable

4

RUBBER, SADDLEBAG CUSHION (NOT AVAILABLE)

81215-MA2-000

Unavailable

5

LOCK ASSY., SADDLEBAG (NOT AVAILABLE)

81220-MA2-000

Unavailable

6

PLATE, LOCK

81221-MA2-000

Unavailable

7

RUBBER, LOCK SEAL

81222-MA2-000

Unavailable

8

HOOK, LOCK (NOT AVAILABLE)

81230-MA2-000

Unavailable

9

PLATE A, HOOK

81231-MA2-000

Unavailable

10

RUBBER A, HOOK

81233-MA2-000

Unavailable

11

RUBBER, SADDLEBAG GUIDE (NOT AVAILABLE)

81248-MA1-740

Unavailable

12

BRACKET, SADDLEBAG SETTING (NOT AVAILABLE)

81253-MA1-770

Unavailable

13

RUBBER, FR. SADDLEBAG (NOT AVAILABLE)

81254-MA1-770

Unavailable

14

GUIDE, R. SADDLEBAG

81256-MA1-740

Unavailable

16

GUIDE, L. SADDLEBAG

81257-MA1-740

Unavailable

18

PATCH, GUIDE (NOT AVAILABLE)

81259-MA1-740

Unavailable

20

GRIP, SADDLEBAG (NOT AVAILABLE)

81260-MA1-770

Unavailable

21

PIN, GRIP (NOT AVAILABLE)

81263-MA2-000

Unavailable

22

PATCH, GRIP (NOT AVAILABLE)

81265-MA1-770

Unavailable

23

COLLAR, SLIDE

81265-MA2-000

Unavailable

24

PATCH, BUCKLE (NOT AVAILABLE)

81266-MA1-740

Unavailable

26

RUBBER, BUCKLE SETTING (NOT AVAILABLE)

81270-MA1-740

Unavailable

27

RUBBER, GUIDE SETTING (NOT AVAILABLE)

81269-MA1-740

Unavailable

28

PLATE, R. BUCKLE (NOT AVAILABLE)

81271-MA1-740

Unavailable

30

HOOK ASSY., BUCKLE LOCK (NOT AVAILABLE)

81280-MA1-770

Unavailable

31

RUBBER, HOOK LOCK SETTING (NOT AVAILABLE)

81286-MA1-770

Unavailable

32

RUBBER, SADDLEBAG BRACKET SETTING

81287-MA1-770

Unavailable

33

RUBBER, REFLEX REFLECTOR (NOT AVAILABLE)

81288-MA1-770

Unavailable

34

BASE, GRIP (NOT AVAILABLE)

81290-MA1-770

Unavailable

35

RUBBER, GRIP (NOT AVAILABLE)

81291-MA1-770

Unavailable

37

SADDLEBAG ASSY., L. *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

81400-MA1-740ZA

Unavailable

37

SADDLEBAG ASSY., L. *NH118MU* (STERLING SILVER METALLIC) (NOT AVAILABLE)

81400-MA1-740ZB

Unavailable

38

PLATE, L. BUCKLE (NOT AVAILABLE)

81471-MA1-740

Unavailable

40

EMBLEM, SADDLEBAG

87111-MG9-770

Unavailable

40

EMBLEM, SADDLEBAG This part replaces 87124-MA1-770.

87111-MG9-770

Unavailable

41

TAPE, SADDLEBAG FRAME *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

87127-MA1-770ZA

Unavailable

42

EMBLEM, SADDLEBAG

87111-MG9-770

Unavailable

42

EMBLEM, SADDLEBAG This part replaces 87136-MA1-770.

87111-MG9-770

Unavailable

43

LABEL, TRUNK & SADDLEBAG CAUTION (NOT AVAILABLE)

87520-MA1-300

Unavailable

44

COLLAR, SADDLEBAG CUSHION SETTING (NOT AVAILABLE)

90130-MA2-000

Unavailable

45

COLLAR, REFLECTOR SETTING (NOT AVAILABLE)

90129-MA1-740

Unavailable

46

SCREW, PAN (3X6)

93500-03006-0G

Unavailable

47

SCREW, PAN (4X16)

93500-04016-0B

$1.01

47

SCREW, PAN (4X16) This part replaces 93500-04016-1G.

93500-04016-0B

$1.01

48

NUT, CAP (4MM)

94021-04070-0S

$1.49

49

NUT, CAP (5MM)

94021-05070-0S

$1.49

50

NUT, CAP (6MM) This part replaces 90301-KW8-900.

94021-06070-0S

$1.62

50

NUT, CAP (6MM) This part replaces 94021-06070.

94021-06070-0S

$1.62

50

NUT, CAP (6MM)

94021-06070-0S

$1.62

51

WASHER, PLAIN (4MM)

94101-04700

$1.49

52

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

52

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

52

WASHER, PLAIN (6MM)

94101-06800

$1.49

53

PIN, LOCK (6MM)

94251-06000

$1.49
