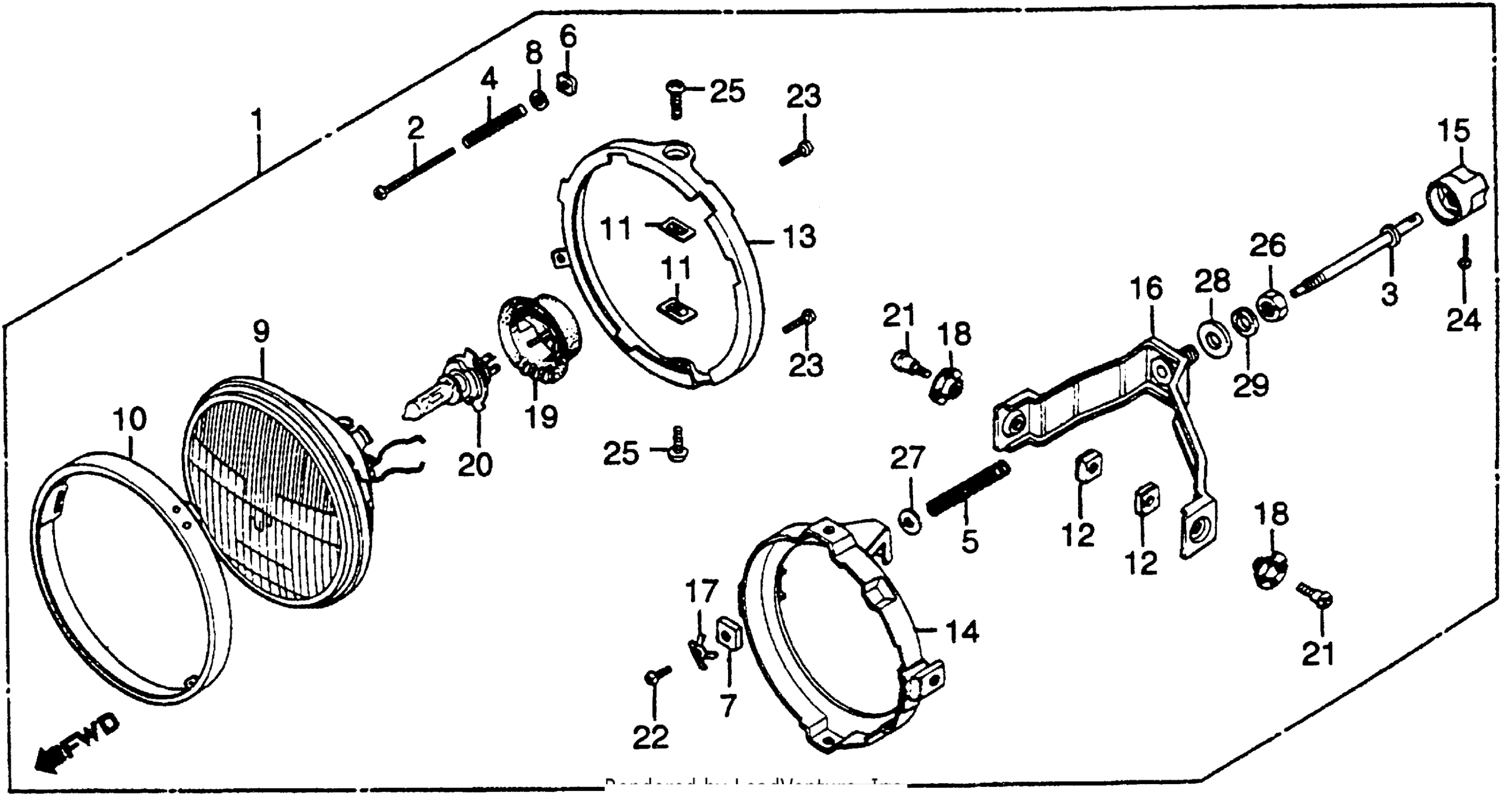

Honda GL500IA (82) SILVER WING INTERSTATE, JPN, VIN# JH2PC021-CM100001 GL500I HEADLIGHT (GL500I) Diagram

#

Description
Price

1

HEADLIGHT ASSY. (12V 60/55W) (NOT AVAILABLE)

33100-463-771

Unavailable

2

SCREW, BEAM ADJUSTING This part replaces 33103-346-670.

33103-MW3-610

$7.90

3

SCREW This part replaces 33103-463-771.

33103-MJ3-000

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-300-003

$3.01

5

SPRING, BEAM ADJUSTING (NOT AVAILABLE)

33107-463-771

$3.43

6

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

7

NUT, BEAM ADJUSTING (NOT AVAILABLE)

33117-463-771

Unavailable

8

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

9

HEADLIGHT UNIT

33120-431-671

Unavailable

10

RING, RETAINING (NOT AVAILABLE)

33121-463-771

Unavailable

11

NUT, UNIT HOLDER

33128-292-670

$2.94

12

NUT, UNIT HOLDER (NOT AVAILABLE)

33128-463-771

Unavailable

13

RING A, SETTING (NOT AVAILABLE)

33153-463-771

Unavailable

14

RING B, SETTING (NOT AVAILABLE)

33154-463-771

Unavailable

15

KNOB, BEAM ADJUSTING (NOT AVAILABLE)

33155-463-771

Unavailable

16

BRACKET, HEADLIGHT (NOT AVAILABLE)

33156-463-771

Unavailable

17

WASHER, SPRING (NOT AVAILABLE)

33157-463-771

Unavailable

18

WASHER, HEADLIGHT (NOT AVAILABLE)

33165-463-771

Unavailable

19

COVER, RUBBER

33180-422-003

Unavailable

20

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$37.18

20

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$37.18

20

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-371-601.

34901-MC7-602

$37.18

21

SCREW, PAN (5X10) (NOT AVAILABLE)

90150-463-771

Unavailable

22

SCREW, PAN (3X8)

93500-03008-0H

$1.49

23

SCREW, PAN (3X12)

93500-03012-0A

$1.49

23

SCREW, PAN (3X12) This part replaces 93500-03012-1A.

93500-03012-0A

$1.49

24

SCREW, PAN (3X14)

93500-03014-0G

Unavailable

25

SCREW, PAN (5X8)

93500-05008-0H

$1.49

26

NUT, HEX. (12MM)

94002-12080-0S

$1.66

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, PLAIN (12MM)

94101-12800

$1.49

29

WASHER, SPRING (12MM)

94111-12800

$1.49
