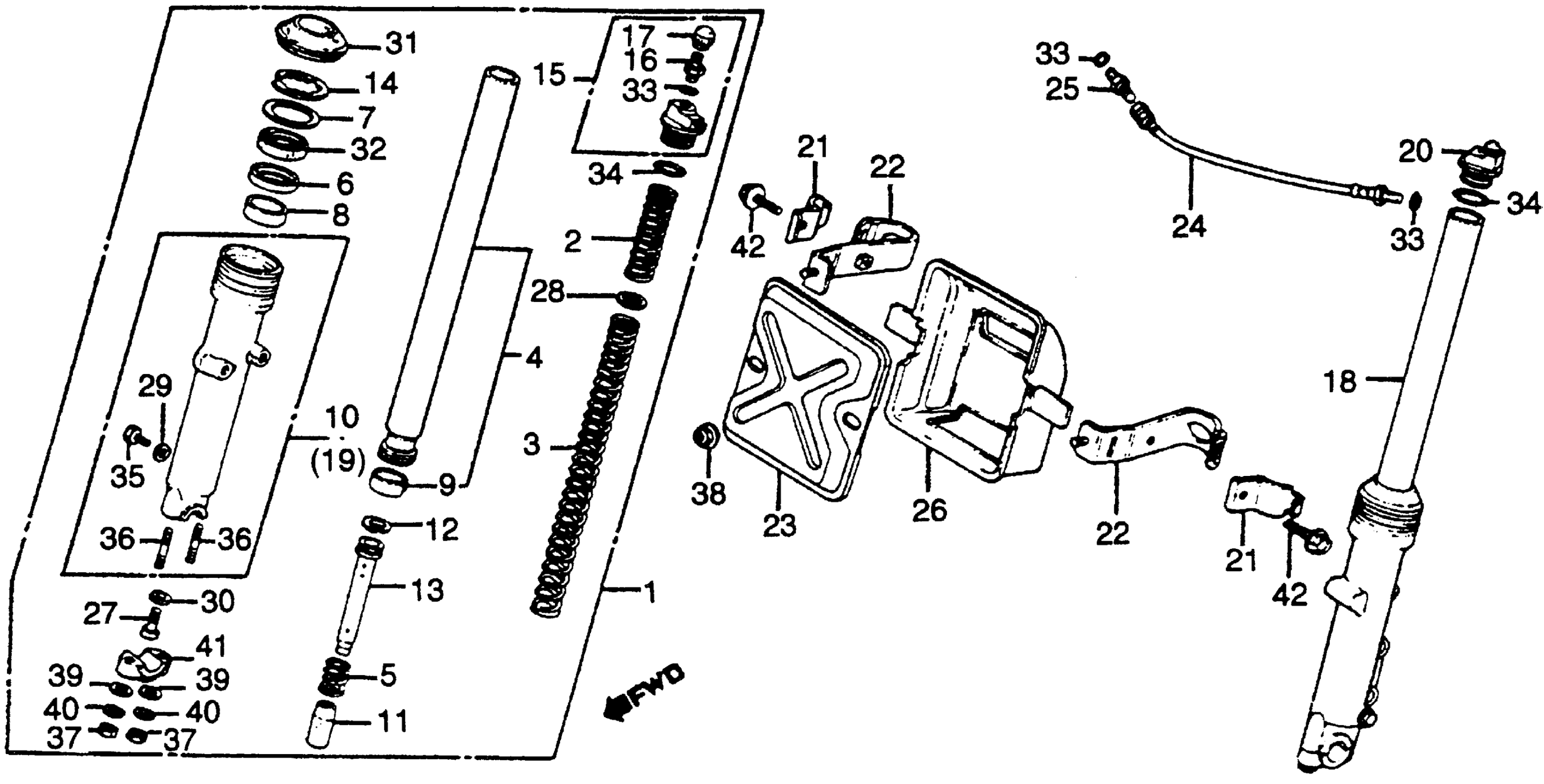

Honda GL500IA (82) SILVER WING INTERSTATE, JPN, VIN# JH2PC021-CM100001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (SHOWA)

51400-MA1-771

Unavailable

2

SPRING A, FR. FORK (SHOWA)

51401-449-751

Unavailable

3

SPRING B, FR. FORK (NOT AVAILABLE)

51402-MA1-003

Unavailable

4

PIPE, FR. FORK (SHOWA) (NOT AVAILABLE)

51410-MA1-003

Unavailable

5

SPRING, FR. FORK REBOUND

51412-340-000

$4.78

6

RING, BACK-UP

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-422-405.

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-428-305.

51412-422-003

$7.49

6

RING, BACK-UP This part replaces 51412-428-315.

51412-422-003

$7.49

7

PLATE, BACK-UP (SHOWA)

51413-469-003

Unavailable

8

BUSH, GUIDE This part replaces 51414-469-003.

51414-MBV-711

$19.63

9

BUSH, SLIDER (SHOWA)

51415-469-003

Unavailable

10

CASE, R. (LOWER) (SHOWA)

51421-MA1-771

Unavailable

11

PIECE, OIL LOCK (NOT AVAILABLE)

51432-461-771

Unavailable

12

RING, PISTON

51437-400-771

$6.30

13

PIPE, SEAT (SHOWA)

51440-MA1-003

Unavailable

14

CIRCLIP (INNER) (51.5MM)

51447-469-003

$4.17

15

BOLT ASSY., FR. FORK (NOT AVAILABLE)

51450-MA5-671

Unavailable

16

VALVE, AIR (SHOWA)

51456-469-013

$33.69

17

CAP ASSY., AIR VALVE

51457-469-000

Unavailable

18

FORK ASSY., L. FR. (SHOWA)

51500-MA1-003

Unavailable

19

CASE, L. (LOWER)

51521-460-701

Unavailable

20

BOLT, L. FR. FORK (NOT AVAILABLE)

51555-MA5-671

Unavailable

21

BAND, CONNECTOR HOLDER STAY

51602-MA1-770

Unavailable

22

STAY, CONNECTOR HOLD

51603-MA1-770

Unavailable

23

COVER, HOLDER (NOT AVAILABLE)

51605-MA1-740

Unavailable

24

HOSE, FR. FORK JOINT (NOT AVAILABLE)

53137-461-003

Unavailable

25

CONNECTOR

53139-463-000

Unavailable

26

HOLDER, CONNECTOR

61305-463-770

Unavailable

27

BOLT, SOCKET (8MM) (SHOWA) This part replaces 90116-283-010.

90116-383-721

$5.13

27

BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

28

WASHER (16MM) (NOT AVAILABLE)

90504-356-000

Unavailable

29

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

30

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

31

DUST SEAL (35MM)

91254-434-003

$13.96

32

OIL SEAL (35X48X11)

91255-KBH-003

$13.24

32

OIL SEAL (35X48X11) This part replaces 91255-MA6-013.

91255-KBH-003

$13.24

32

OIL SEAL (35X48X11) This part replaces 91255-434-013.

91255-KBH-003

$13.24

33

O-RING (5.8X1.9) This part replaces 91301-469-003.

91305-323-000

$2.92

33

O-RING (5.8X1.9)

91305-323-000

$2.92

33

O-RING (5.6X1.9) (ARAI)

91318-ME5-003

$3.67

34

O-RING (25.7X2.8)

91356-428-003

$3.60

35

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

35

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

36

BOLT 2, STUD (8X32) This part replaces 92700-08050.

92900-08032-0E

$2.17

36

BOLT 2, STUD (8X32) This part replaces 92700-08050-0B.

92900-08032-0E

$2.17

36

BOLT 2, STUD (8X32) This part replaces 92700-08050-0E.

92900-08032-0E

$2.17

36

BOLT 2, STUD (8X32) This part replaces 92700-08050-00.

92900-08032-0E

$2.17

36

BOLT 2, STUD (8X32) This part replaces 92700-08050-05.

92900-08032-0E

$2.17

36

BOLT 2, STUD (8X32)

92900-08032-0E

$2.17

37

NUT, HEX. (8MM)

94030-08000

$1.49

38

NUT, FLANGE (6MM)

94050-06000

$1.49

39

WASHER, PLAIN (8MM)

94101-08000

$1.49

40

WASHER, SPRING (8MM)

94111-08000

$1.49

41

HOLDER 1C, FR. FORK AXLE

95014-41000

$13.38

42

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

42

BOLT, FLANGE (6X14)

95701-06014-00

$1.49
