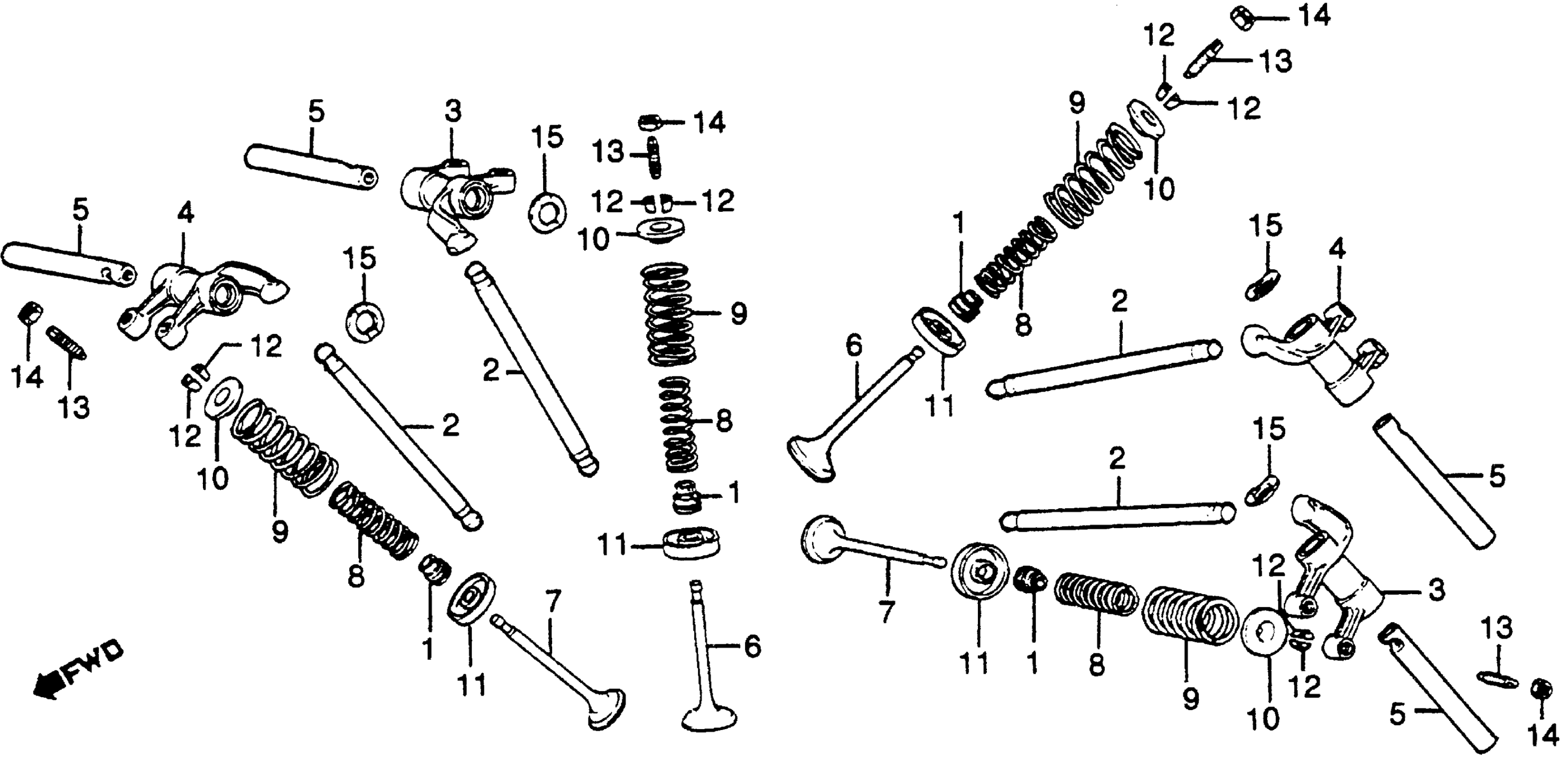

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 VALVE Diagram

#

Description
Price

1

SEAL, VALVE STEM (NOK)

12209-MB9-003

$12.43

1

SEAL, VALVE STEM (NOK) This part replaces 12209-300-003.

12209-MB9-003

$12.43

2

ROD, PUSH

14410-415-000

Unavailable

3

ARM A, ROCKER (UPPER) (NOT AVAILABLE) This part replaces 14420-MA1-000.

14420-ME7-000

Unavailable

4

ARM B, ROCKER (UPPER) (NOT AVAILABLE) This part replaces 14430-MA1-000.

14430-ME7-000

Unavailable

4

ARM B, ROCKER (UPPER) (NOT AVAILABLE)

14430-ME7-000

Unavailable

5

SHAFT, ROCKER ARM (UPPER)

14450-MG0-000

Unavailable

5

SHAFT, ROCKER ARM (UPPER) This part replaces 14450-415-010.

14450-MG0-000

Unavailable

6

VALVE, IN.

14711-415-000

Unavailable

7

VALVE, EX.

14721-415-000

Unavailable

8

SPRING, VALVE (INNER)

14751-415-005

Unavailable

9

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14761-415-005

Unavailable

10

RETAINER, VALVE SPRING

14771-551-020

Unavailable

11

SEAT, VALVE SPRING (NOT AVAILABLE) This part replaces 14775-300-000.

14775-410-010

Unavailable

11

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-410-010

Unavailable

12

COTTER, VALVE

14781-551-000

$6.44

13

SCREW, TAPPET ADJ.

90012-415-000

$6.05

14

NUT, TAPPET ADJ. This part replaces 90205-300-000.

90206-250-000

$2.94

14

NUT, TAPPET ADJ.

90206-250-000

$2.94

15

WASHER, WAVE (1.5MM) (NOT AVAILABLE)

90405-415-000

Unavailable
