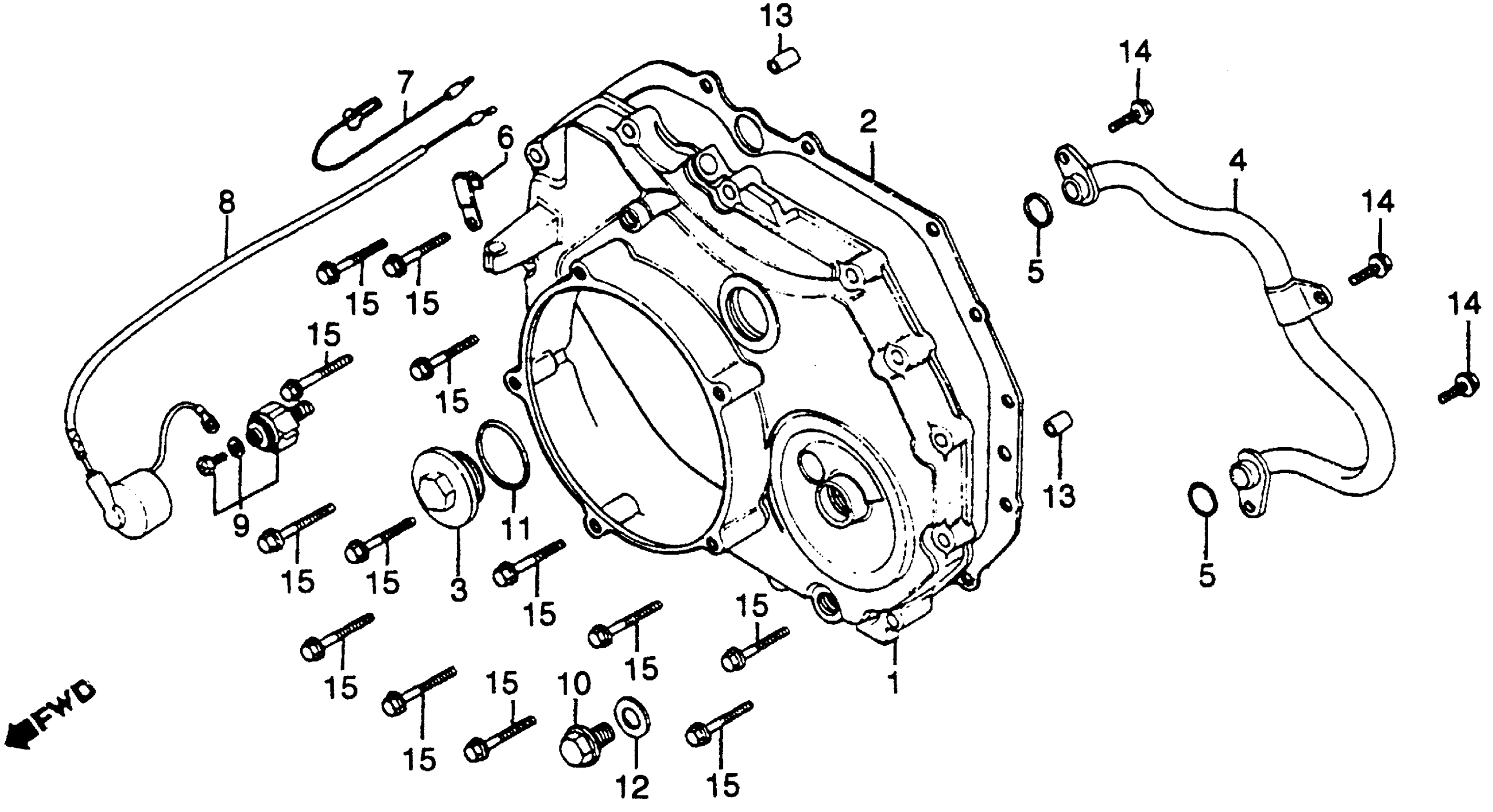

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 TRANSMISSION COVER Diagram

#

Description
Price

1

COVER, TRANSMISSION (NOT AVAILABLE)

11360-449-000

Unavailable

2

GASKET, TRANSMISSION COVER

11391-449-306

Unavailable

2

GASKET, TRANSMISSION COVER This part replaces 11391-449-700.

11391-449-306

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

3

CAP, VALVE ADJ.

12361-300-000

Unavailable

3

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

4

PIPE, OIL PASSAGE

15142-415-000

Unavailable

5

O-RING (11.8X2.4) This part replaces 16997-357-003.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91302-ZE9-000.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4)

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91320-HA5-000.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4) This part replaces 91320-HA5-003.

91302-ZE9-003

$2.57

5

O-RING (11.8X2.4)

91320-MJ6-003

$2.79

6

CLAMP, CABLE

32111-323-000

$3.98

7

SUB-WIRE A, ENGINE (NOT AVAILABLE)

32116-415-000

Unavailable

8

SUB-WIRE, OIL PRESSURE

32103-KAZ-000

Unavailable

8

SUB-WIRE, OIL PRESSURE This part replaces 32117-MA1-730.

32103-KAZ-000

Unavailable

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MB9-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ0-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-004.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO) This part replaces 35500-MJ4-014.

35500-MJ4-024

$42.43

9

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$42.43

10

BOLT, DRAIN PLUG (12MM) This part replaces 90030-415-000.

92800-12000

$3.23

10

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

11

O-RING (27.5X2.6) This part replaces 91302-001-000.

91302-001-710

$2.99

11

O-RING (27.5X2.6)

91302-001-710

$2.99

12

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

13

PIN A, DOWEL (8X14) (YAMADA)

94301-08140

$2.25

14

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

14

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

15

BOLT, FLANGE (6X28) This part replaces 96000-06028-00.

96001-06028-00

$2.06

15

BOLT, FLANGE (6X28)

96001-06028-00

$2.06
