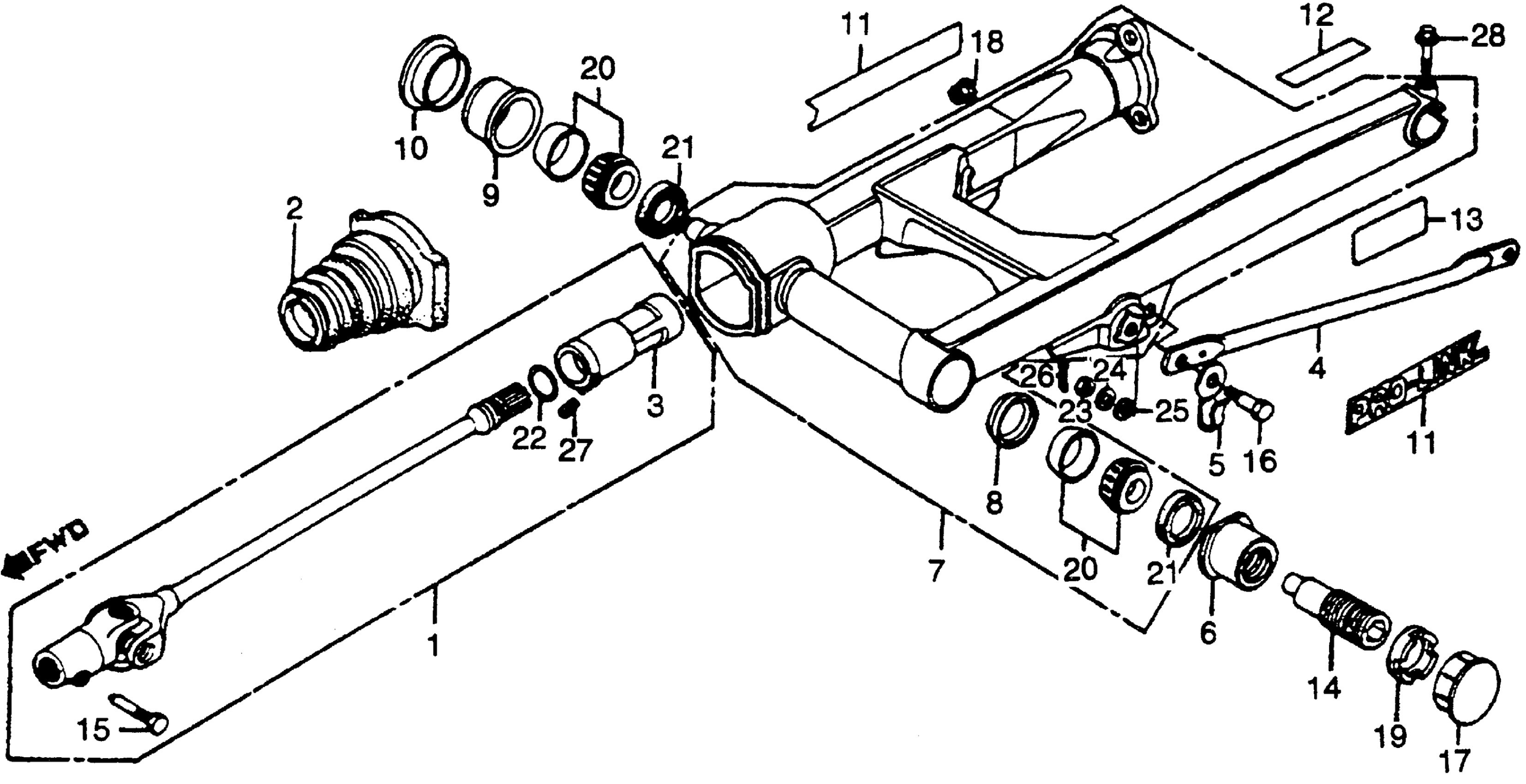

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 SWINGARM Diagram

#

Description
Price

1

SHAFT, DRIVE (NOT AVAILABLE) | Use up to Frame SN CM100068

40200-MA1-000

Unavailable

1

SHAFT, DRIVE | Use from Frame SN CM100069

40200-MA1-010

Unavailable

2

BOOT, JOINT (NOT AVAILABLE)

40207-MA1-000

Unavailable

3

JOINT, DRIVESHAFT

40210-415-010

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-MA1-000

Unavailable

5

CLIP, CLUTCH CABLE (NOT AVAILABLE)

45469-399-000

Unavailable

6

NUT, SWINGARM PIVOT (NOT AVAILABLE)

50197-MA1-300

Unavailable

7

SWINGARM ASSY., RR.

52110-MA1-000

Unavailable

8

HOLDER, RR. SWINGARM GREASE

52112-MA1-300

$7.04

9

HOLDER, SWINGARM PIVOT BEARING (NOT AVAILABLE)

52115-MA1-000

Unavailable

10

CAP, SWINGARM PIVOT (NOT AVAILABLE)

52117-MA1-000

Unavailable

11

LABEL, PRO LINK (NOT AVAILABLE)

87133-MA1-000

Unavailable

12

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

13

MARK, TIRE CAUTION (NOT AVAILABLE)

87505-MA1-730

Unavailable

14

BOLT, PIVOT (NOT AVAILABLE)

90121-MA1-000

Unavailable

15

BOLT, SPECIAL (8MM) (NOT AVAILABLE)

90127-415-000

Unavailable

16

BOLT, RR. BRAKE STOPPER (NOT AVAILABLE)

90133-MA1-000

Unavailable

17

CAP, LOCK NUT

90303-463-010

Unavailable

18

NUT, HEX. (10MM)

90308-357-000

$4.85

19

NUT, SWINGARM PIVOT (NOT AVAILABLE)

90355-MA1-000

Unavailable

20

BEARING, TAPER (30203) This part replaces 91062-415-013.

91121-PH8-961

Unavailable

20

BEARING, TAPER (30203)

91121-PH8-961

Unavailable

21

DUST SEAL (26X40X5)

91268-463-003

$6.61

22

O-RING (22X1.7) (NOT AVAILABLE)

91359-415-300

Unavailable

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

WASHER, SPRING (8MM)

94111-10000

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

26

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

26

PIN, COTTER (2.0X22)

94201-20220

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

26

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

26

PIN, COTTER (2.0X35)

94201-20350

$1.49

26

PIN, COTTER (2.0X22)

94201-29220

$1.49

27

PIN, SPRING (4X22)

94305-40222

$1.83

28

BOLT, FLANGE (8X32) This part replaces 95700-08032-00.

95701-08032-00

$1.49

28

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
