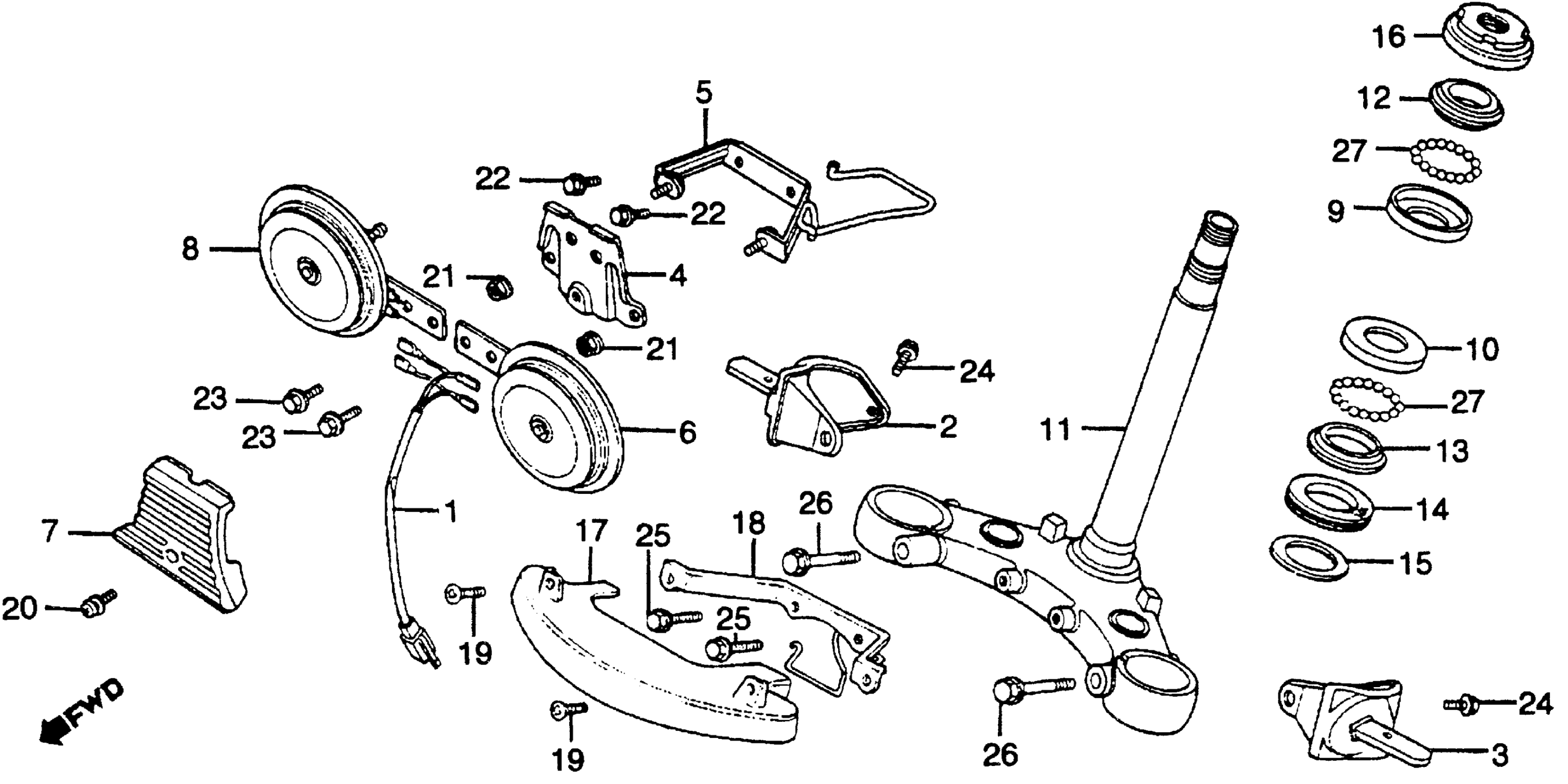

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 STEERING STEM + HORN Diagram

#

Description
Price

1

SUB-WIRE HARNESS A (NOT AVAILABLE)

32101-438-000

Unavailable

2

STAY, R. TURN SIGNAL (NOT AVAILABLE) This part replaces 33410-MA1-000.

33410-ME2-000

Unavailable

2

STAY, R. TURN SIGNAL (NOT AVAILABLE)

33410-ME2-000

Unavailable

3

STAY, L. TURN SIGNAL (NOT AVAILABLE) This part replaces 33610-MA1-000.

33610-ME2-000

Unavailable

3

STAY, L. TURN SIGNAL (NOT AVAILABLE)

33610-ME2-000

Unavailable

4

STAY, HORN

38102-438-004

Unavailable

5

BRACKET, HORN (NOT AVAILABLE)

38103-MA1-000

Unavailable

6

HORN (HIGH) (MITSUBA)

38110-GT8-621

Unavailable

6

HORN (HIGH) (MITSUBA) This part replaces 38110-ME2-601.

38110-GT8-621

Unavailable

6

HORN (HIGH) (MITSUBA) This part replaces 38110-410-004.

38110-GT8-621

Unavailable

6

HORN (HIGH) (MITSUBA) This part replaces 38110-438-004.

38110-GT8-621

Unavailable

6

HORN (HIGH) (MITSUBA) This part replaces 38110-438-601.

38110-GT8-621

Unavailable

7

EMBLEM, HORN (NOT AVAILABLE)

38111-438-000

Unavailable

8

HORN (LOW) This part replaces 38120-438-004.

38120-438-601

Unavailable

8

HORN (LOW)

38120-438-601

Unavailable

9

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

9

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

10

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$18.94

10

RACE, STEERING BALL (LOWER)

50302-268-010

$18.94

11

STEM, STEERING *NH1* (BLACK) (NOT AVAILABLE)

53200-MA1-000ZA

Unavailable

12

RACE, STEERING TOP CONE This part replaces 53211-268-000.

53211-268-010

$23.45

12

RACE, STEERING CONE (UPPER)

53211-268-010

$23.45

13

RACE, STEERING CONE (LOWER) This part replaces 53212-250-000.

53212-250-010

$18.81

13

RACE, STEERING CONE (LOWER)

53212-250-010

$18.81

14

DUST SEAL This part replaces 53214-250-000.

53214-K0T-J00

$2.81

15

WASHER, STEERING HEAD DUST SEAL

53215-250-000

$2.13

16

THREAD, STEERING HEAD (UPPER)

53220-286-000

Unavailable

20

SCREW-WASHER (5X20)

93891-05020-07

$0.61

21

NUT, FLANGE (6MM)

94050-06080

$0.59

22

BOLT, FLANGE (6X10)

95700-06010-08

$1.46

22

BOLT, FLANGE (6X10)

95701-06010-08

$1.46

23

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.81

23

BOLT, FLANGE (6X12)

95701-06012-00

$1.81

24

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.48

24

BOLT, FLANGE (6X12)

95701-06012-07

$1.48

26

BOLT, FLANGE (10X35) This part replaces 95700-10035-07.

95701-10035-07

$1.83

26

BOLT, FLANGE (10X35)

95701-10035-07

$1.83

27

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
