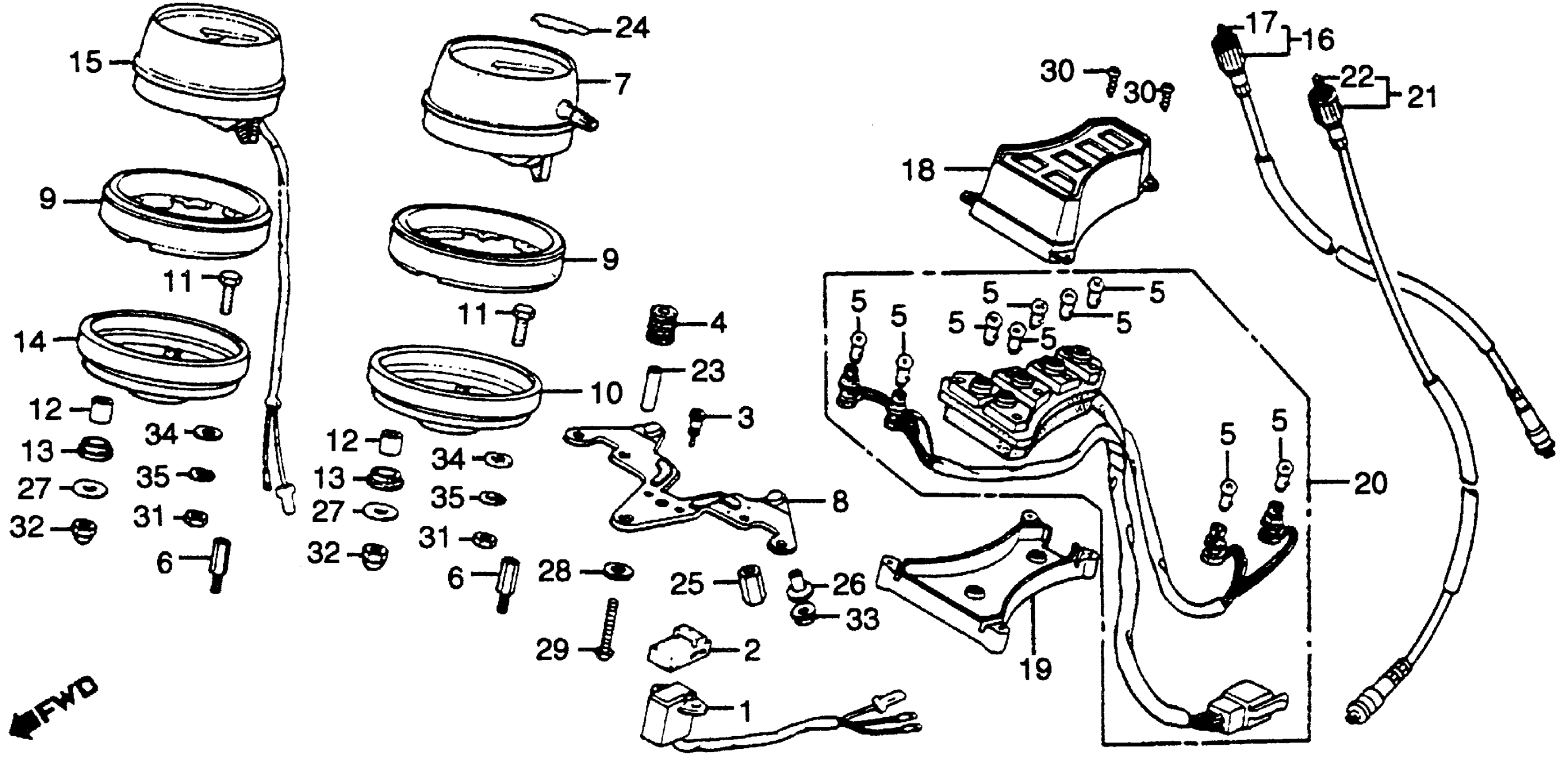

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

REGULATOR (7V) (NOT AVAILABLE)

31410-449-018

Unavailable

2

SUSPENSION, REGULATOR (NOT AVAILABLE)

31412-449-000

Unavailable

3

STOPPER, METER BRACKET (NOT AVAILABLE)

32701-392-700

Unavailable

4

GROMMET, METER BRACKET (NOT AVAILABLE)

32702-392-700

Unavailable

5

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

5

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

5

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

5

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

7

SPEEDOMETER ASSY. (MPH/KPH) (NIPPON SEIKI) (NOT AVAILABLE)

37200-449-752

Unavailable

8

BRACKET, METER

37211-MA1-000

Unavailable

9

RUBBER, SPEEDOMETER

37235-323-700

$22.28

10

PLATE, SPEEDOMETER (LOWER)

37236-426-000

Unavailable

11

BOLT, INSTRUMENT SETTING (6MM) (NOT AVAILABLE)

37238-323-700

Unavailable

12

COLLAR, INSTRUMENT SETTING

37243-323-700

Unavailable

13

RUBBER, METER SETTING

37244-307-670

$2.67

14

PLATE, TACHOMETER (LOWER)

37246-426-000

Unavailable

15

TACHOMETER ASSY. (NOT AVAILABLE)

37250-449-750

Unavailable

16

CABLE ASSY., TACHOMETER

37260-MA1-730

Unavailable

17

CABLE, TACHOMETER (INNER) (NOT AVAILABLE)

37261-MA1-000

Unavailable

18

COVER, PILOT (UPPER) (NIPPON SEIKI) (NOT AVAILABLE)

37610-MA1-008

Unavailable

19

COVER, PILOT (LOWER) (NIPPON SEIKI) (NOT AVAILABLE)

37617-MA1-008

Unavailable

20

SOCKET ASSY., RUBBER (NOT AVAILABLE)

37619-MA1-731

Unavailable

21

CABLE ASSY., SPEEDOMETER This part replaces 44830-MA1-730.

44830-426-830

$25.47

21

CABLE ASSY., SPEEDOMETER

44830-426-830

$25.47

22

CABLE (INNER)

44831-GE0-710

Unavailable

22

CABLE (INNER) This part replaces 44831-MA1-000.

44831-GE0-710

Unavailable

23

COLLAR, NUMBER BRACKET SETTING (NOT AVAILABLE)

84706-375-000

Unavailable

24

LABEL, BREAK IN CAUTION

87523-413-710

Unavailable

26

COLLAR (6.2X12)

90501-425-000

$4.69

27

WASHER (6.5X18)

90545-323-700

$1.89

28

WASHER (20MM) (NOT AVAILABLE)

90581-349-690

Unavailable

29

SCREW, PAN (5X28)

93500-05028-0G

$1.49

30

SCREW, TAPPING (4X12)

93901-34380

$1.49

31

NUT, HEX. (6MM)

94001-06070-0S

$1.49

32

NUT, CAP (6MM)

94021-06020

$1.73

32

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

32

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

33

NUT, FLANGE (6MM)

94050-06000

$1.49

34

WASHER, PLAIN (6MM)

94101-06700

$1.49

35

WASHER, SPRING (6MM)

94111-06700

$1.49
