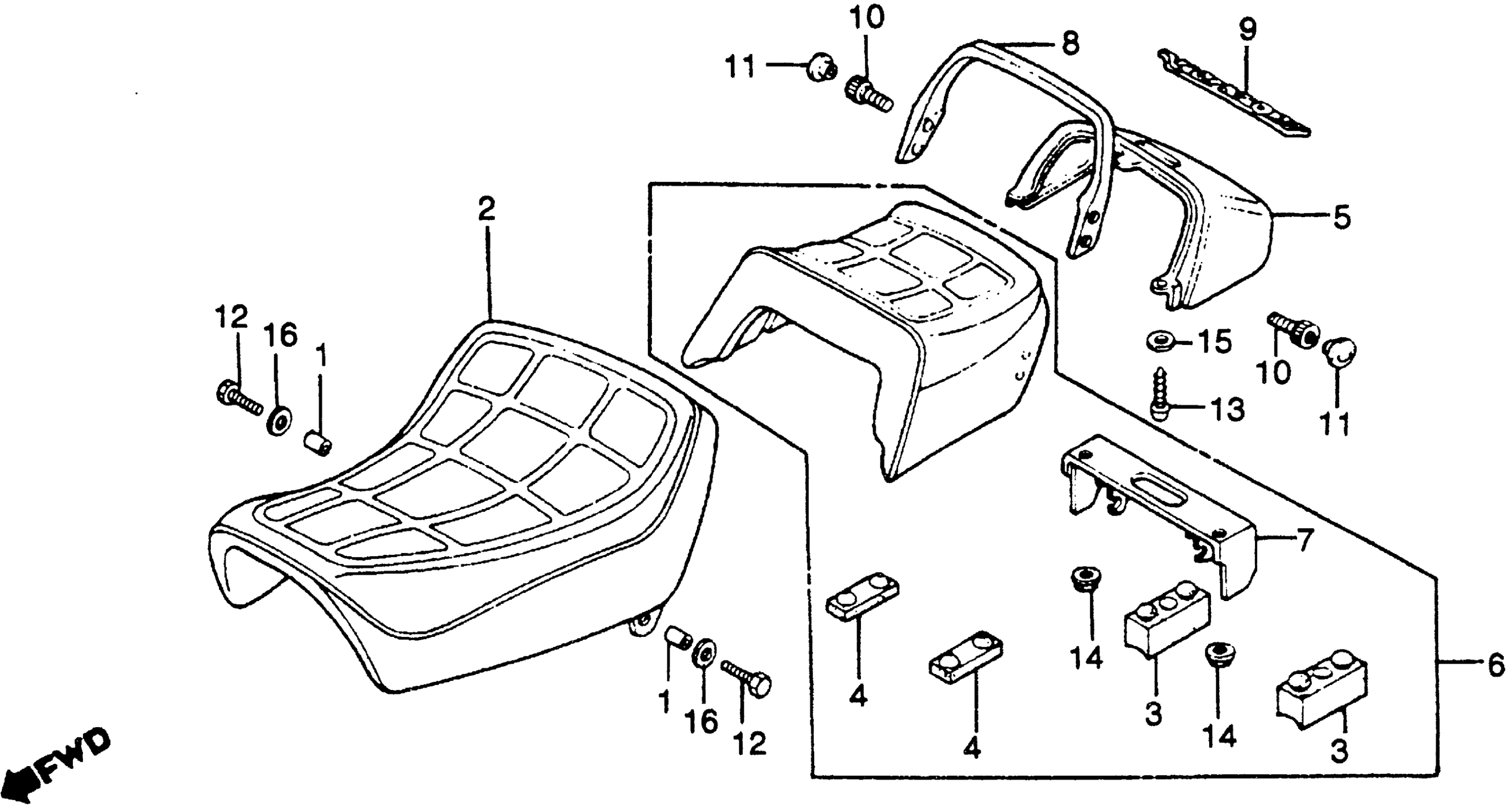

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 SEAT Diagram

#

Description
Price

1

COLLAR, METER (NOT AVAILABLE)

37213-GA6-000

Unavailable

2

SEAT, SINGLE (NOT AVAILABLE)

77100-MA1-000

Unavailable

3

RUBBER, SEAT SETTING

77204-292-000

$8.19

4

RUBBER, SEAT SETTING

77204-MA1-730

Unavailable

5

COWL ASSY., RR. *R104CU* (CANDY MUSE RED) (NOT AVAILABLE)

77250-MA1-730ZA

Unavailable

5

COWL ASSY., RR. *NH118MU* (STERLING SILVER METALLIC)

77250-MA1-730ZB

Unavailable

6

SEAT, PILLION (NOT AVAILABLE)

77300-MA1-730

Unavailable

7

PLATE, SEAT LOCK (NOT AVAILABLE)

77301-MA1-730

Unavailable

8

GRIP, SEAT (NOT AVAILABLE)

77320-MA1-000

Unavailable

9

EMBLEM, TRUNK (UPPER) (NOT AVAILABLE)

87123-MA1-000

Unavailable

10

BOLT, SOCKET (8X16)

90115-463-000

$8.04

11

CAP, SOCKET BOLT

91456-371-770

$3.22

12

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.48

12

BOLT, HEX. (8X20)

92101-08020-0A

$1.48

13

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$0.83

13

SCREW, PAN (5X12)

93500-05012-0A

$0.83

13

SCREW, PAN (5X12) This part replaces 93500-05012-00.

93500-05012-0A

$0.83

14

NUT, FLANGE (8MM)

94050-08080

$0.86

15

WASHER, PLAIN (5MM)

94101-05800

$0.90

16

WASHER, PLAIN (8MM)

94103-08000

$0.59
