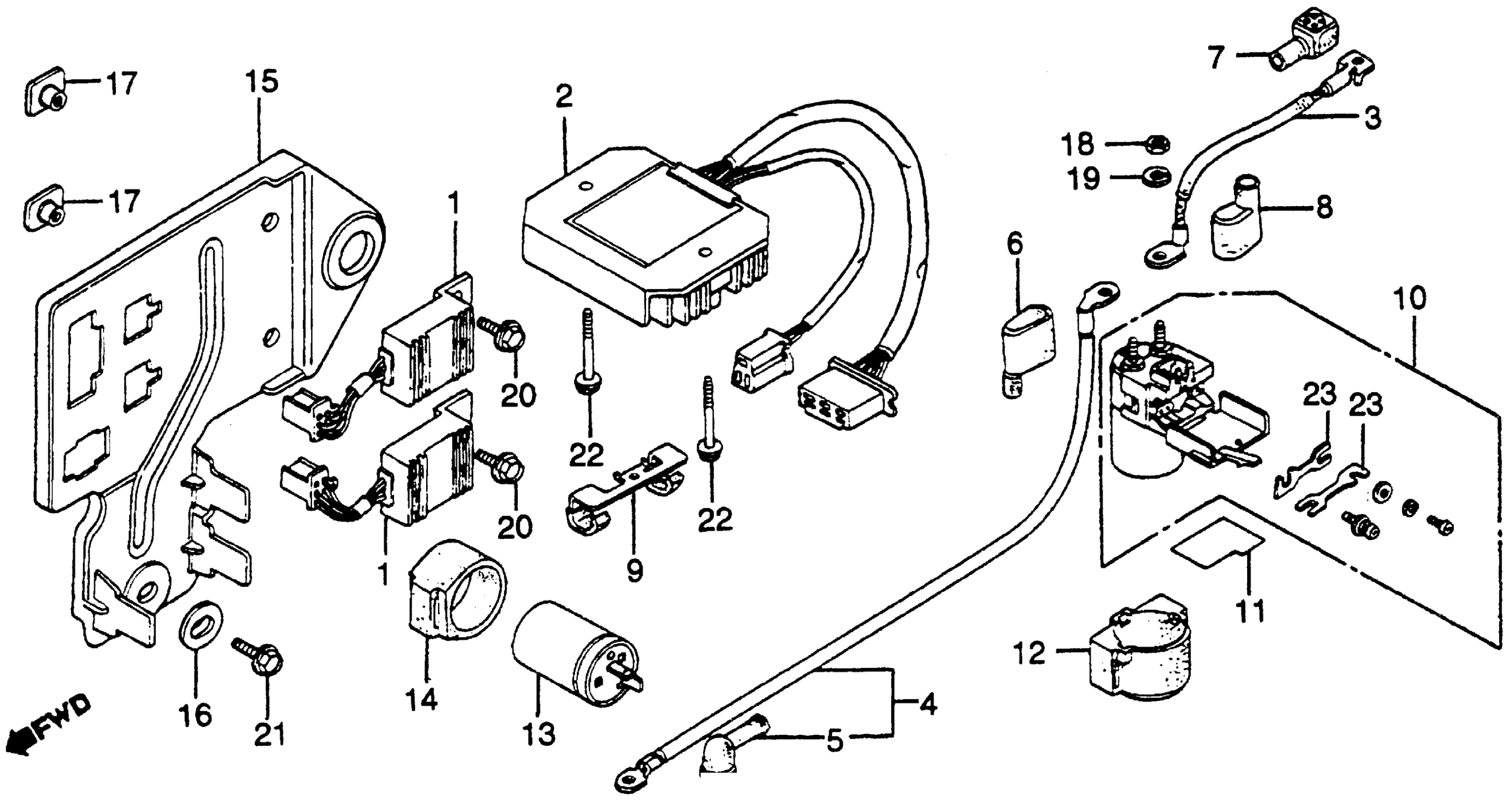

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 RECTIFIER PLATE + SPARK UNIT Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-MA1-155.

30400-MA4-601

Unavailable

2

RECTIFIER ASSY., REGULATOR

31600-MA1-008

Unavailable

3

CABLE, STARTER BATTERY (NOT AVAILABLE)

32401-MA1-730

Unavailable

4

CABLE, STARTER MOTOR (NOT AVAILABLE)

32310-MA1-730

Unavailable

5

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

5

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

6

COVER, MAGNETIC SWITCH TERMINAL

32412-426-000

Unavailable

7

COVER, TERMINAL (NOT AVAILABLE)

32414-MA1-730

Unavailable

8

COVER B, MAGNETIC SWITCH

32416-460-000

Unavailable

9

CLIP, CABLE (NOT AVAILABLE)

32900-MA1-730

Unavailable

10

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

10

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-425-017.

35850-MB0-007

$131.64

11

LABEL, FUSE COVER

35853-425-300

Unavailable

12

RUBBER, MAGNETIC SHOCK

35856-425-000

$10.91

13

RELAY, TURN SIGNAL This part replaces 38300-415-P00.

38300-MG2-008

Unavailable

13

RELAY, TURN SIGNAL This part replaces 38300-415-004.

38300-MG2-008

Unavailable

13

RELAY, TURN SIGNAL This part replaces 38300-415-671.

38300-MG2-008

Unavailable

13

RELAY, TURN SIGNAL This part replaces 38301-415-004.

38300-MG2-008

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY

38306-KB4-010

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-438-000.

38306-KB4-010

Unavailable

15

PLATE, ELECTRIC (NOT AVAILABLE)

50340-MA1-000

Unavailable

16

COLLAR, DISTANCE

66181-706-000

Unavailable

17

NUT, SPECIAL (6X7)

61304-958-003

$3.24

17

NUT, SPECIAL (6X7) This part replaces 90301-471-000.

61304-958-003

$3.24

18

NUT, HEX. (6MM) This part replaces 94002-06080.

94002-06080-0S

$1.49

18

NUT, HEX. (6MM)

94002-06080-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94002-06080-00.

94002-06080-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94002-06080-05.

94002-06080-0S

$1.49

19

WASHER, SPRING (6MM)

94111-06800

$1.49

20

BOLT, FLANGE (6X12) This part replaces 95700-06012-08.

95701-06012-08

$1.67

20

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

21

BOLT, FLANGE (6X16) This part replaces 95700-06016-08.

95701-06016-08

$1.49

21

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

21

BOLT, FLANGE (6X16) This part replaces 95900-06016-08.

95701-06016-08

$1.49

22

BOLT, FLANGE (6X35) This part replaces 95700-06035-07.

95701-06035-07

$1.80

22

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

23

FUSE F (30A)

98200-53000

$1.49
