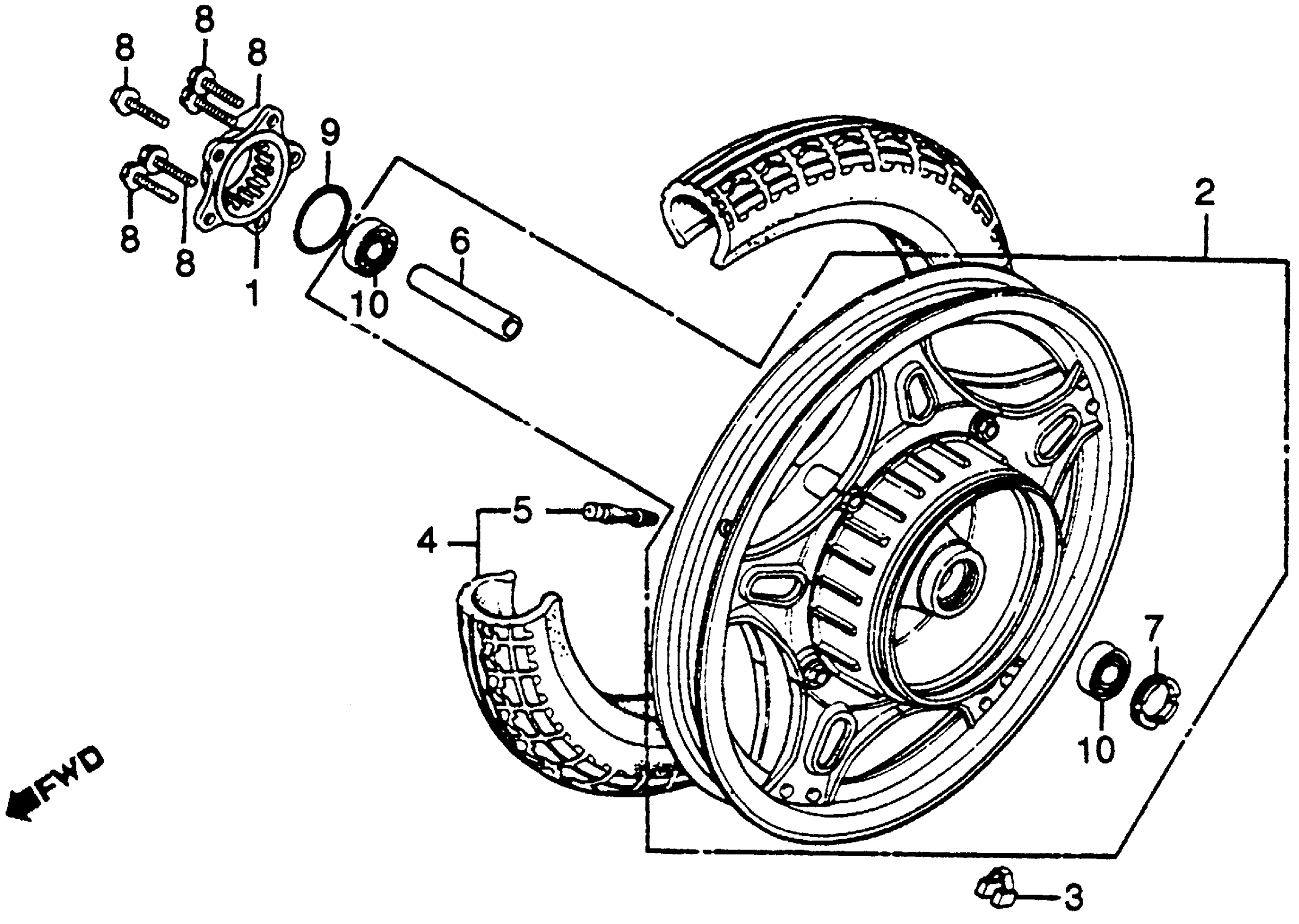

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 REAR WHEEL Diagram

#

Description
Price

1

FLANGE, FINAL DRIVEN (NOT AVAILABLE)

42610-415-000

Unavailable

2

WHEEL, RR. (NOT AVAILABLE)

42650-449-611

Unavailable

3

WEIGHT, BALANCE (20G)

42705-410-000

Unavailable

3

WEIGHT, BALANCE (30G)

42706-410-000

$11.69

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-MA1-672.

42710-461-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE)

42710-461-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-MA1-731.

42710-ME2-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP)

42710-ME2-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-671.

42710-ME2-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-672.

42710-ME2-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) This part replaces 42710-ME4-673.

42710-ME2-672

Unavailable

4

TIRE ASSY., RR. (130/90-16) (67H) (DUNLOP) (NOT AVAILABLE) This part replaces 42710-449-672.

42710-461-672

Unavailable

5

VALVE, RIM (BS)

42753-425-003

$11.00

5

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

6

COLLAR, FR. WHEEL DISTANCE

44620-410-000

Unavailable

7

RETAINER, FR. WHEEL BEARING

44643-300-000

$15.70

8

BOLT, SPROCKET

90128-402-000

$6.93

9

O-RING (54X2.4) (ARAI)

91302-KF0-003

$3.47

9

O-RING (54X2.4) (ARAI) This part replaces 91357-415-003.

91302-KF0-003

$3.47

10

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

10

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36
