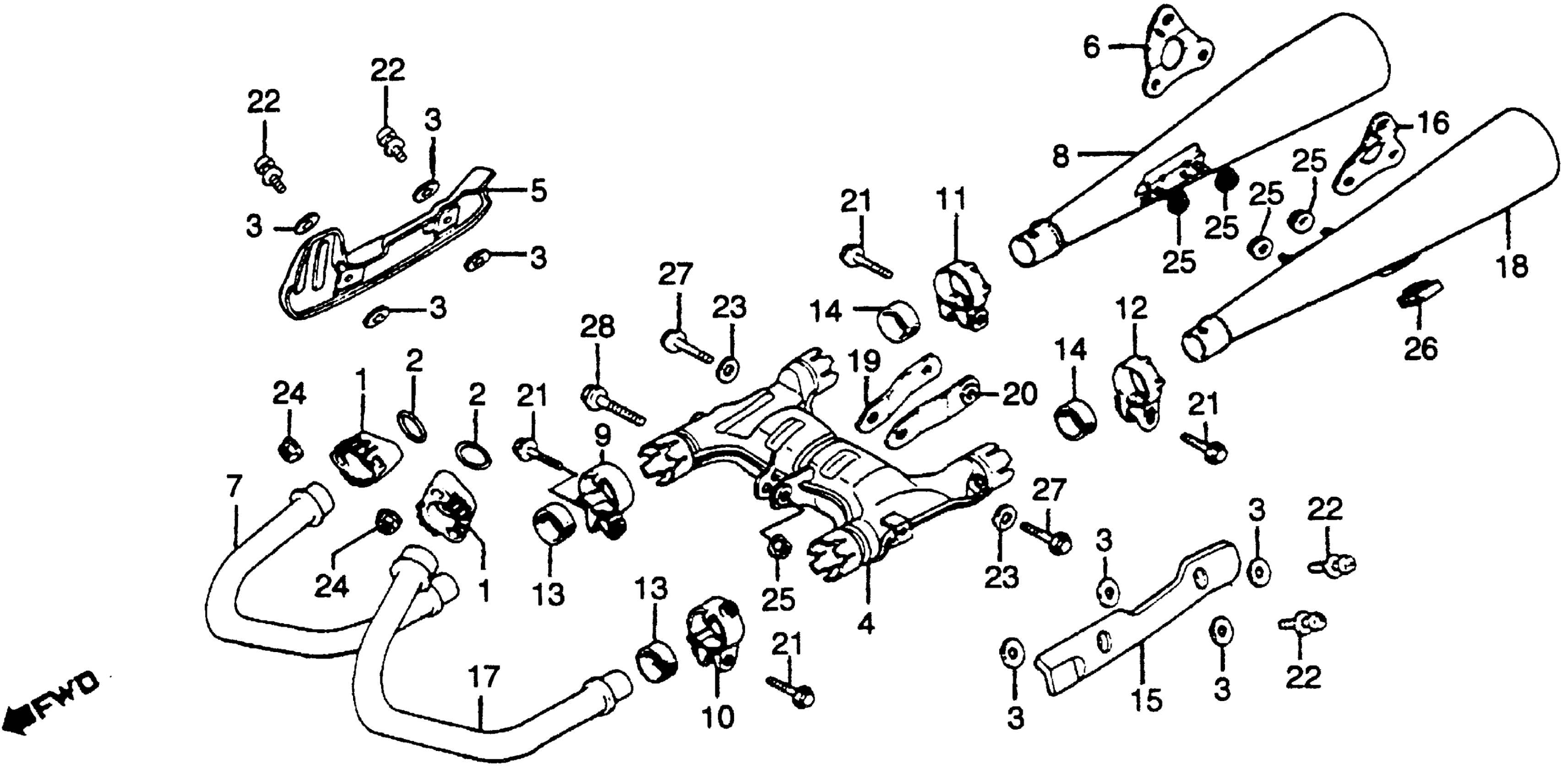

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE (NOT AVAILABLE)

18231-415-000

Unavailable

2

GASKET, EX. PIPE This part replaces 18291-286-000.

18291-286-306

$7.19

2

GASKET, EX. PIPE

18291-286-306

$7.19

3

GASKET, PROTECTOR This part replaces 18292-KF9-900.

18292-MM9-740

$3.03

3

GASKET, PROTECTOR

18292-MM9-740

$3.03

3

GASKET, PROTECTOR This part replaces 18292-415-000.

18292-MM9-740

$3.03

4

PRE CHAMBER

18310-MA1-003

Unavailable

5

PROTECTOR, R. CHAMBER (NOT AVAILABLE)

18315-MA1-003

Unavailable

6

BRACKET, R. MUFFLER (NOT AVAILABLE)

18318-MA1-003

Unavailable

7

PIPE, R. EX. This part replaces 18320-415-003.

18320-415-610

Unavailable

8

MUFFLER This part replaces 18330-MA1-003.

18330-MA1-405

Unavailable

8

MUFFLER This part replaces 18330-MA1-007.

18330-MA1-405

Unavailable

9

BAND, R. FR. MUFFLER (NOT AVAILABLE)

18373-415-000

Unavailable

10

BAND, L. FR. MUFFLER (NOT AVAILABLE) This part replaces 18374-MA1-003.

18374-415-000

Unavailable

10

BAND, L. FR. MUFFLER (NOT AVAILABLE)

18374-415-000

Unavailable

11

BAND, R. RR. MUFFLER

18375-413-000

$40.08

12

BAND, L. RR. MUFFLER

18376-413-000

$36.70

13

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

13

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

13

GASKET, MUFFLER

18392-MK4-000

$13.66

14

GASKET, RR. MUFFLER

18392-MG7-750

$13.66

14

GASKET, MUFFLER This part replaces 18392-413-000.

18392-MG7-750

$13.66

15

PROTECTOR, L. CHAMBER (NOT AVAILABLE)

18415-MA1-003

Unavailable

16

BRACKET, L. MUFFLER (NOT AVAILABLE)

18418-MA1-003

Unavailable

17

PIPE, L. EX. This part replaces 18420-415-003.

18420-415-610

Unavailable

18

MUFFLER This part replaces 18430-MA1-003.

18430-MA1-405

Unavailable

18

MUFFLER This part replaces 18430-MA1-007.

18430-MA1-405

Unavailable

21

BOLT, FLANGE (8X37)

90118-471-000

$3.19

22

SCREW-WASHER

90136-415-750

Unavailable

23

WASHER, LOCK

90401-MA1-000

$6.05

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

NUT, FLANGE (8MM)

94050-08080

$1.49

26

RUBBER D, STAND STOPPER

95011-64000

$3.33

27

BOLT, FLANGE (8X20) This part replaces 95700-08020-08.

95701-08020-08

$1.62

27

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

27

BOLT, FLANGE (8X20) This part replaces 95701-08020-18.

95701-08020-08

$1.62

28

BOLT, FLANGE (8X40) This part replaces 95700-08040-08.

95701-08040-08

$2.28

28

BOLT, FLANGE (8X40)

95701-08040-08

$2.28
