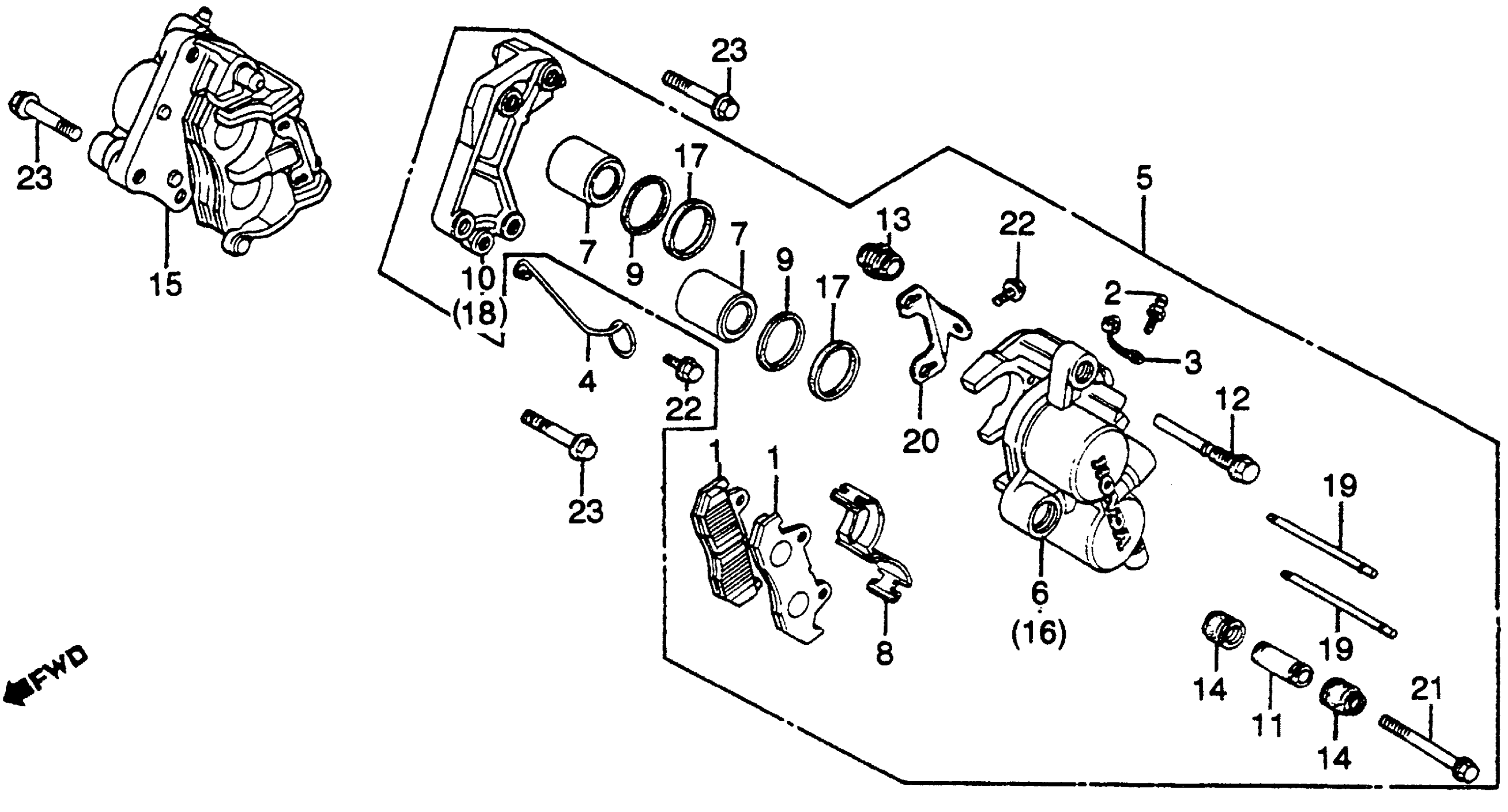

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 FRONT BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 06455-MA3-405.

06435-MC7-405

Unavailable

NI

PAD SET This part replaces 431A0-MA3-004.

06435-MC7-405

Unavailable

1

PAD, FR. This part replaces 43105-MA3-004.

45105-MM9-782

$24.40

1

PAD, FR. This part replaces 43105-MA3-007.

45105-MM9-782

$24.40

1

PAD, FR. This part replaces 45105-MK7-672.

45105-MM9-782

$24.40

2

SCREW, BLEEDER

43352-568-003

$7.95

3

CAP, BLEEDER

43353-461-771

$5.05

4

CLAMP, SPEEDOMETER CABLE (NOT AVAILABLE)

44832-MA3-000

Unavailable

5

CALIPER, L. FR. This part replaces 45100-MA1-006.

45100-MA1-405

Unavailable

5

CALIPER, L. FR. This part replaces 45100-MA1-007.

45100-MA1-405

Unavailable

6

CALIPER, L.

45101-MA3-006

Unavailable

7

PISTON

45107-MA3-006

$50.26

8

SPRING, PAD

45108-MA3-006

$6.28

9

DUST SEAL

45109-166-006

$6.41

10

BRACKET, L. (NISSHIN)

45110-MA1-006

Unavailable

11

SLEEVE

45111-MA3-006

$13.38

12

PIN, BOLT

45131-MA3-006

$17.59

13

BOOT B

45133-MA3-006

$5.46

14

BOOT, PIN

45133-166-016

$3.85

17

SEAL, PISTON

45209-166-006

$8.64

19

PIN, HANGER

45215-MA3-006

$12.77

20

PLATE

45217-MA3-006

$4.45

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

BOLT, FLANGE (6X10) This part replaces 95700-06010-00.

95701-06010-00

$1.49

22

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

23

BOLT, FLANGE (10X32) This part replaces 95800-10032-00.

95801-10032-00

$2.31

23

BOLT, FLANGE (10X32)

95801-10032-00

$2.31
