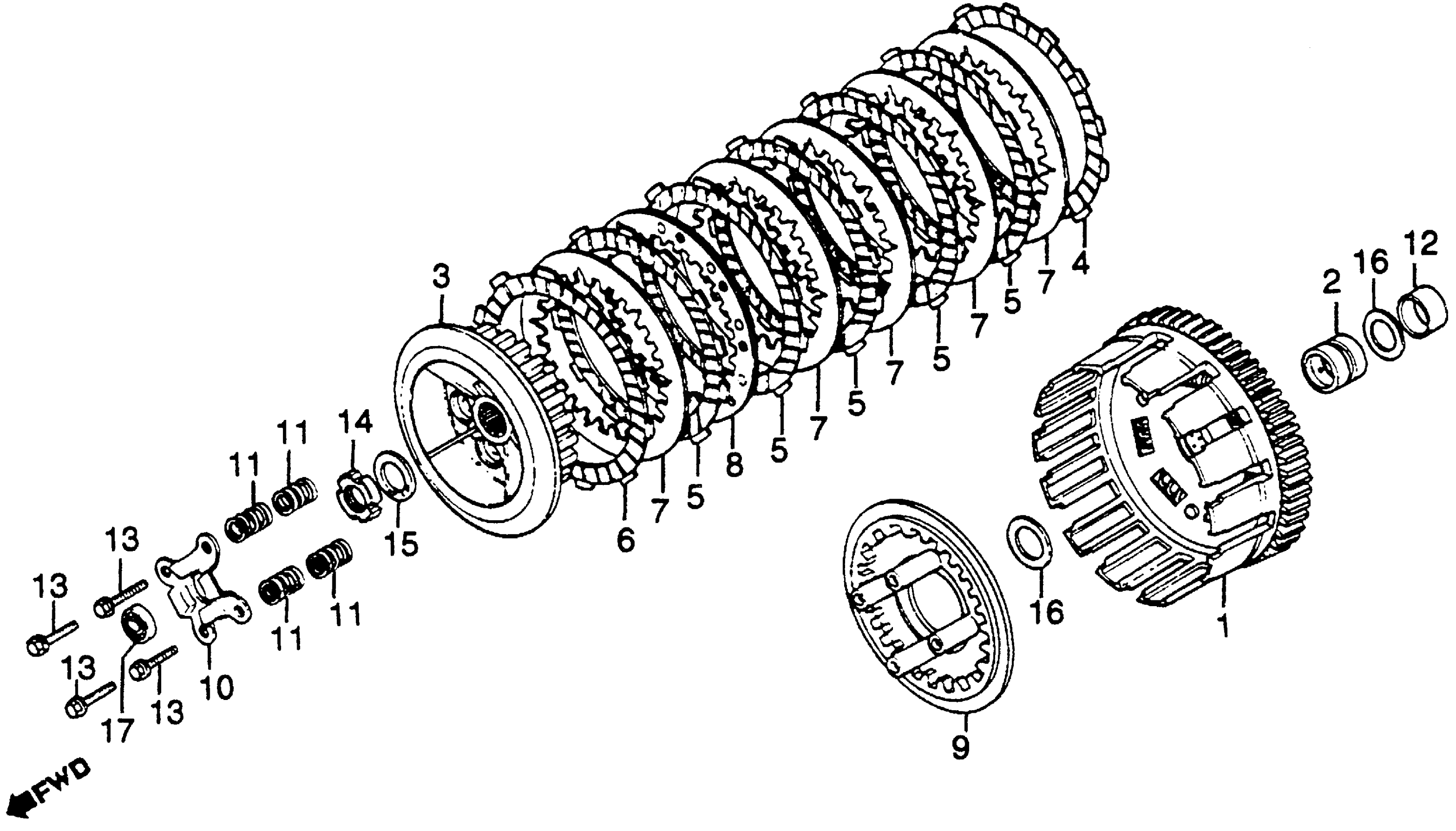

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-MA1-000

Unavailable

2

GUIDE, CLUTCH (OUTER) (NOT AVAILABLE)

22116-MA1-000

Unavailable

3

CENTER, CLUTCH

22120-390-000

Unavailable

4

DISK, CLUTCH FRICTION

22201-286-010

$19.81

5

DISK, CLUTCH FRICTION This part replaces 22201-ME2-000.

22201-415-306

$14.33

5

DISK, CLUTCH FRICTION This part replaces 22201-415-000.

22201-415-306

$14.33

5

DISK, CLUTCH FRICTION

22201-415-306

$14.33

6

DISK B, CLUTCH FRICTION This part replaces 22202-390-000.

22202-392-000

$20.20

6

DISK B, CLUTCH FRICTION

22202-392-000

$20.20

7

PLATE B, CLUTCH

22321-329-000

$16.92

8

PLATE B, CLUTCH (NOT AVAILABLE)

22322-390-000

Unavailable

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-390-000

Unavailable

10

PLATE, CLUTCH LIFTER (NOT AVAILABLE)

22361-415-000

Unavailable

11

SPRING, CLUTCH

22401-415-000

Unavailable

12

COLLAR (25MM) (NOT AVAILABLE)

23215-MA1-000

Unavailable

13

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

14

NUT, LOCK (20MM) (NOT AVAILABLE)

90204-706-000

Unavailable

15

WASHER, LOCK

90432-121-000

$4.21

16

WASHER, THRUST (25MM) (NOT AVAILABLE)

90453-MA1-000

Unavailable

17

BEARING, RADIAL BALL (6000)

96100-60000-00

$8.13
