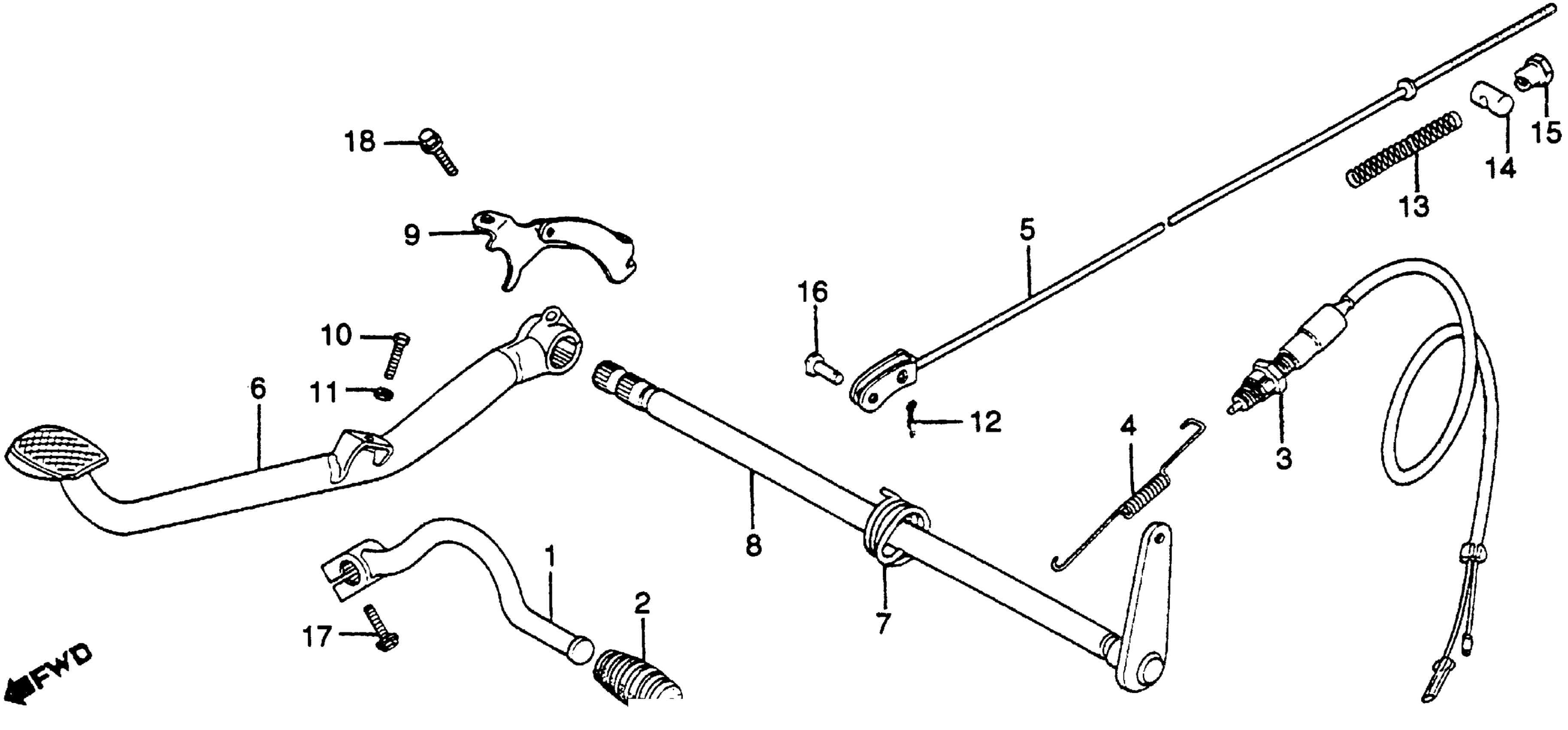

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 BRAKE PEDAL + SHIFT PEDAL Diagram

#

Description
Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24700-MA1-000

Unavailable

2

RUBBER, GEARSHIFT

24781-449-000

$3.57

3

SWITCH ASSY., RR. STOP This part replaces 35350-MA1-003.

35350-MA1-405

$19.28

3

SWITCH ASSY., RR. STOP

35350-MA1-405

$19.28

4

SPRING, STOP SWITCH This part replaces 35357-MA1-000.

35357-MJ1-000

Unavailable

4

SPRING, STOP SWITCH

35357-MJ1-000

Unavailable

5

ROD, RR. BRAKE (NOT AVAILABLE) This part replaces 43450-MA1-000.

43450-405-000

Unavailable

6

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MA1-000

Unavailable

7

SPRING, RR. BRAKE

46514-MA1-000

Unavailable

8

SHAFT, RR. BRAKE PIVOT

46515-MA1-000

Unavailable

9

ARM, RR. STOP SWITCH (NOT AVAILABLE)

50313-MA1-730

Unavailable

10

BOLT, HEX. (6X25) (NOT AVAILABLE)

92035-06025-0H

Unavailable

11

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

11

NUT, HEX. (6MM)

94001-06200-0S

$1.49

11

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

12

PIN, COTTER (1.6X12)

94201-16120

$1.49

13

SPRING A, BRAKE ROD

95014-73100

$1.49

14

JOINT, BRAKE ARM

95015-32001

$1.49

15

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

16

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

17

BOLT, FLANGE (6X20) This part replaces 95700-06020.

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

17

BOLT, FLANGE (6X20) This part replaces 95900-06020-00.

95701-06020-00

$1.55

18

BOLT, FLANGE (6X28)

95700-06028-00

$1.73

18

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
