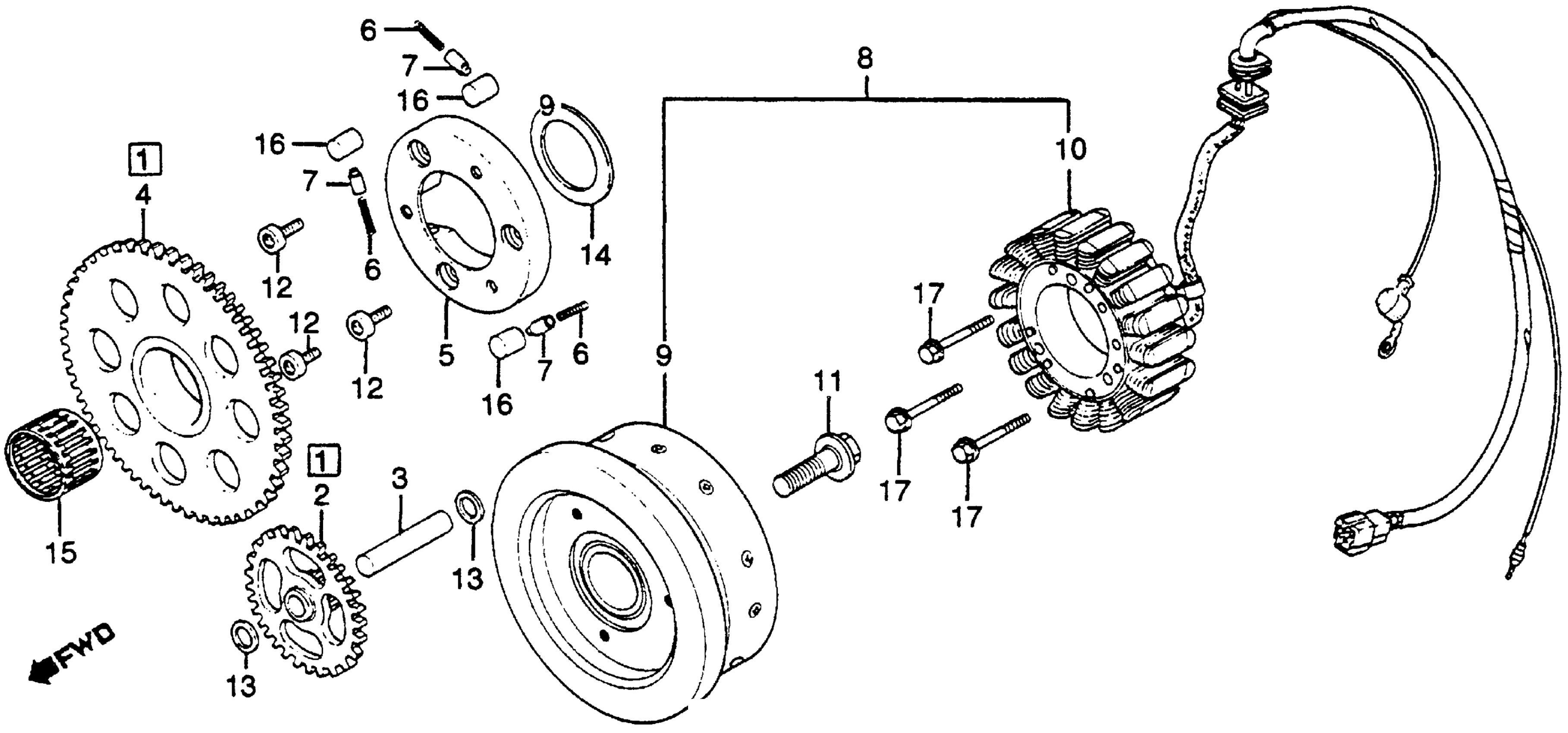

Honda GL500A (82) SILVER WING, JPN, VIN# JH2PC020-CM100001 ALTERNATOR Diagram

#

Description
Price

1

GEAR SET, STARTER (NOT AVAILABLE)

28100-415-305

Unavailable

2

GEAR, STARTER REDUCTION (NOT AVAILABLE)

28102-415-010

Unavailable

3

SHAFT, STARTER REDUCTION GEAR (NOT AVAILABLE)

28106-415-000

Unavailable

4

GEAR, STARTING DRIVEN

28110-MF5-000

Unavailable

4

GEAR, STARTING DRIVEN This part replaces 28110-415-010.

28110-MF5-000

Unavailable

5

CLUTCH, STARTER (OUTER)

28120-415-000

Unavailable

6

SPRING, STARTER CLUTCH ROLLER

28125-516-030

$2.73

7

CAP, STARTER CLUTCH ROLLER SPRING

28126-516-020

$19.34

8

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-MA1-731

Unavailable

9

ROTOR (NOT AVAILABLE)

31110-MA1-731

Unavailable

10

STATOR (HITACHI) (NOT AVAILABLE)

31120-MA1-005

Unavailable

11

BOLT, ALTERNATOR SETTING (12X30) (NOT AVAILABLE)

90002-415-003

Unavailable

12

BOLT, SOCKET (8MM) This part replaces 90010-415-000.

90010-KCJ-690

$4.78

13

WASHER (12MM) (NOT AVAILABLE)

90451-708-000

Unavailable

14

WASHER, THRUST (37MM) (NOT AVAILABLE)

90454-415-000

Unavailable

15

BEARING, NEEDLE (32MM) (TOMUSON)

91021-415-005

Unavailable

16

ROLLER (15X13)

91101-516-000

$6.32

17

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

17

BOLT, FLANGE (6X40)

95701-06040-00

$1.80
