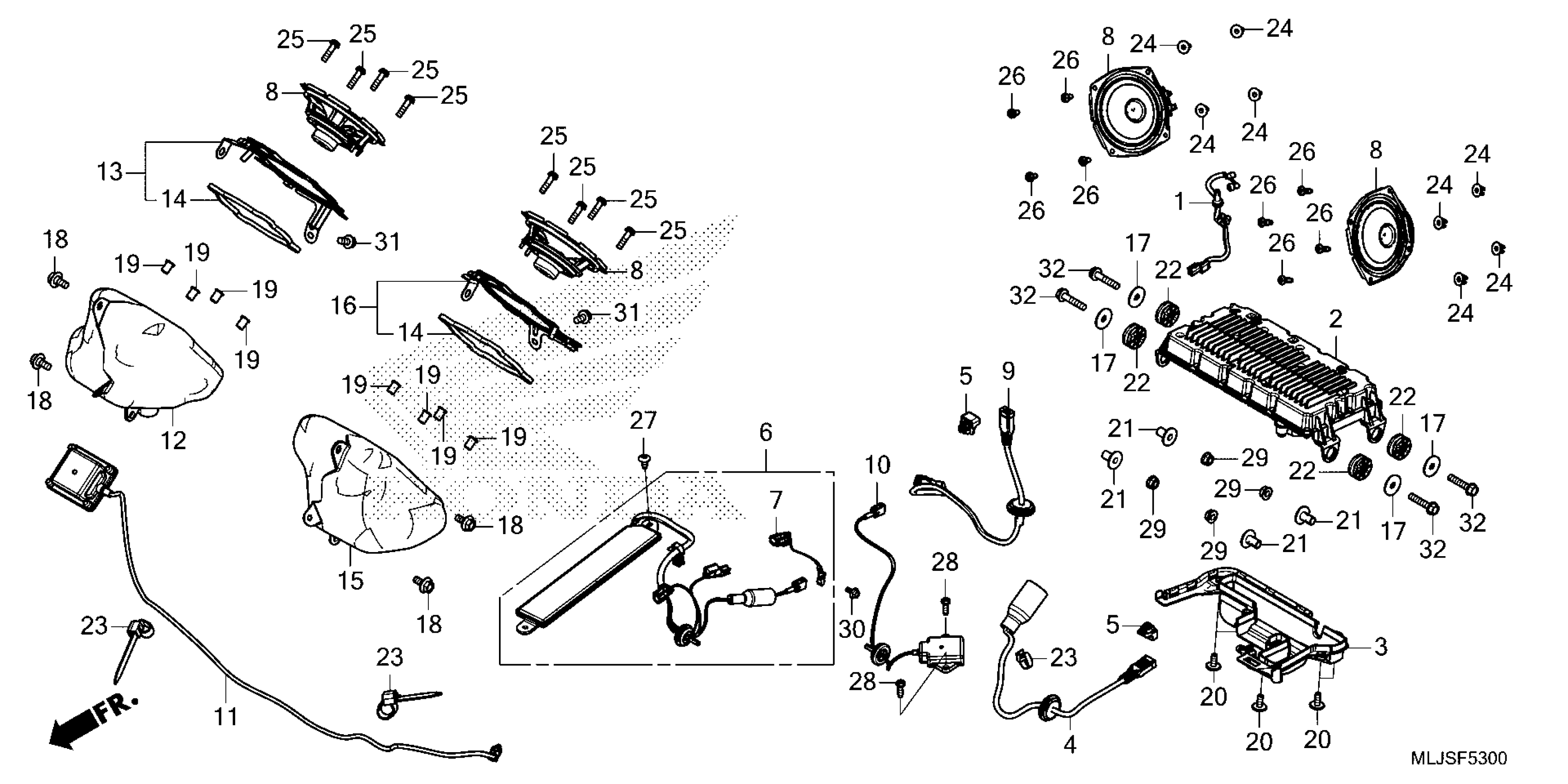

Honda GL1800DAC (25) MOTORCYCLE, JPN, VIN# JH2SC795-SK700001 TO JH2SC795-SK799999 AUDIO UNIT Diagram

#

Description
Price

1

SUB-HARNESS, SPEAKER

32145-MKC-L80

$28.49

2

AUDIO UNIT (IVI)

39110-MLJ-M01

$3,483.72

3

COVER, UNIT

39112-MLJ-M00

$7.84

4

CORD ASSY., USB

39115-MLJ-M01

$67.99

5

CLIP, USB CONNECTOR HOLDER (A) (L. SIDE ONLY)

39115-TK6-003

$1.09

6

ANTENNA ASSY., RADIO

39150-MLJ-M01

$117.57

7

SUB-HARNESS, RADIO ANTENNA GROUND

39151-MKC-A01

$7.13

8

SPEAKER UNIT (NOT AVAILABLE)

39160-MKC-A01

$190.71

10

ANTENNA ASSY., BLUETOOTH (RR)

39213-MKC-A01

$80.22

11

ANTENNA ASSY., GNSS

39230-MLJ-M01

$129.72

12

BOX, R. SPEAKER

64181-MKC-A00

$64.10

13

PLATE, R. SPEAKER BOX

64183-MKC-A00

$27.43

14

CUSHION, SPEAKER

64184-MKC-A00

$16.34

15

BOX, L. SPEAKER

64191-MKC-A00

$61.31

16

PLATE, L. SPEAKER BOX

64193-MKC-A00

$25.69

17

WASHER, SEAT MOUNTING

77302-124-000

$3.08

18

BOLT, FLANGE (6MM)

90111-162-000

$2.66

19

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

20

BOLT, SOCKET (5X12)

90154-MLA-A00

$2.51

21

COLLAR (6.3X14)

90503-MKC-A00

$3.90

22

RUBBER, AUDIO MOUNT

90505-MKC-A00

$3.84

23

BAND, WIRE (Honda Code 2687788)

90650-KV6-003

$2.97

24

GROMMET, SCREW (5MM)

90661-SJ8-003

$2.96

25

SCREW-WASHER (5X20)

93892-05020-07

$0.79

26

SCREW, TAPPING (5X12)

93901-25280

$0.84

27

SCREW, TAPPING (5X12)

93903-25210

$0.76

28

SCREW, TAPPING (5X16)

93903-25310

$0.60

29

NUT, FLANGE (6MM)

94050-06000

$0.60

30

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

31

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

32

BOLT, FLANGE (6X30)

95801-06030-00

$0.87
