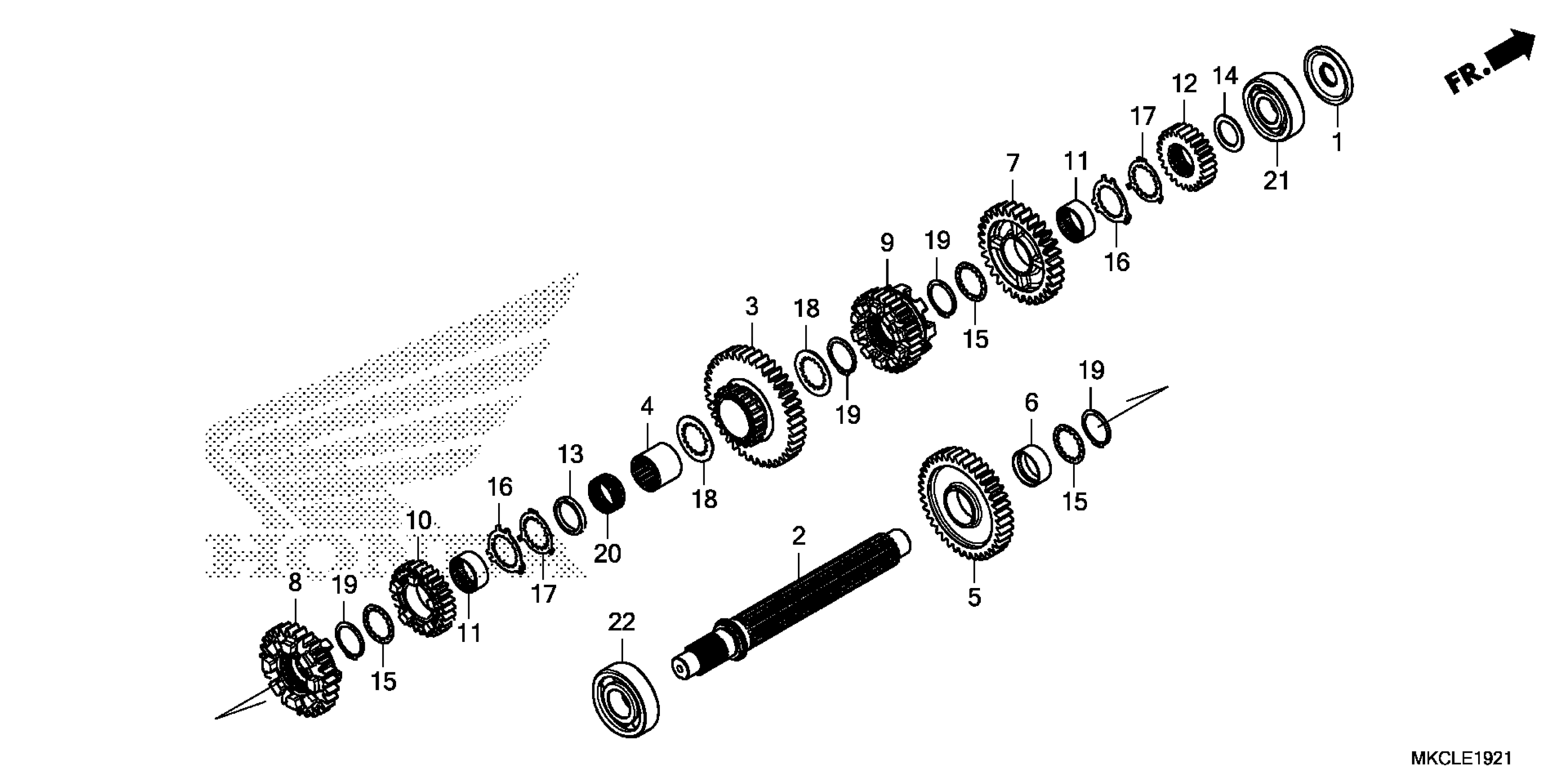

Honda GL1800DAC (20) MOTORCYCLE, JPN, VIN# JH2SC795-LK200001 TRANSMISSION (COUNTERSHAFT) (DCT) Diagram

DAMPER B, BEARING

11369-MKC-A00

$5.44

COUNTERSHAFT (18T)

23221-MKC-A00

$229.34

GEAR, COUNTER FIRST (39T)

23421-MKC-A00

$115.93

COLLAR, SPLINE (34X30.2)

23423-MKC-A00

$41.54

GEAR, COUNTERSHAFT SECOND (39T)

23441-MKC-A00

$119.64

COLLAR (34X14)

23442-MM5-000

$17.54

GEAR, COUNTER THIRD (30T)

23461-MKC-A00

$115.02

GEAR, COUNTER FOURTH (27T)

23481-MKC-A00

$124.26

GEAR, COUNTERSHAFT FIFTH (32T)

23501-MKC-A00

$128.89

GEAR, COUNTERSHAFT SIXTH (28T)

23521-MKC-A00

$112.20

COLLAR, SPLINE (34X37X15)

23523-MKC-A00

$20.25

GEAR, COUNTERSHAFT TOP (24T)

23541-MKC-A00

$63.28

COLLAR (34X42X5.4)

23542-MKC-A00

$7.64

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.44

WASHER, SPLINE (34X40X1.5)

90462-MKC-A00

$3.39

WASHER, SPLINE (34MM)

90463-MKC-A00

$6.51

WASHER, LOCK (34MM)

90464-MKC-A00

$4.67

WASHER, SPLINE (34X47X1.5)

90465-MKC-A00

$4.05

CIRCLIP (34MM)

90601-MKC-A00

$4.56

BEARING, NEEDLE (37X42X30)

91022-MKC-A01

$15.05

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$28.00

BEARING, RADIAL BALL (28X68X18) (EC)

91025-MKC-A01

$30.38
