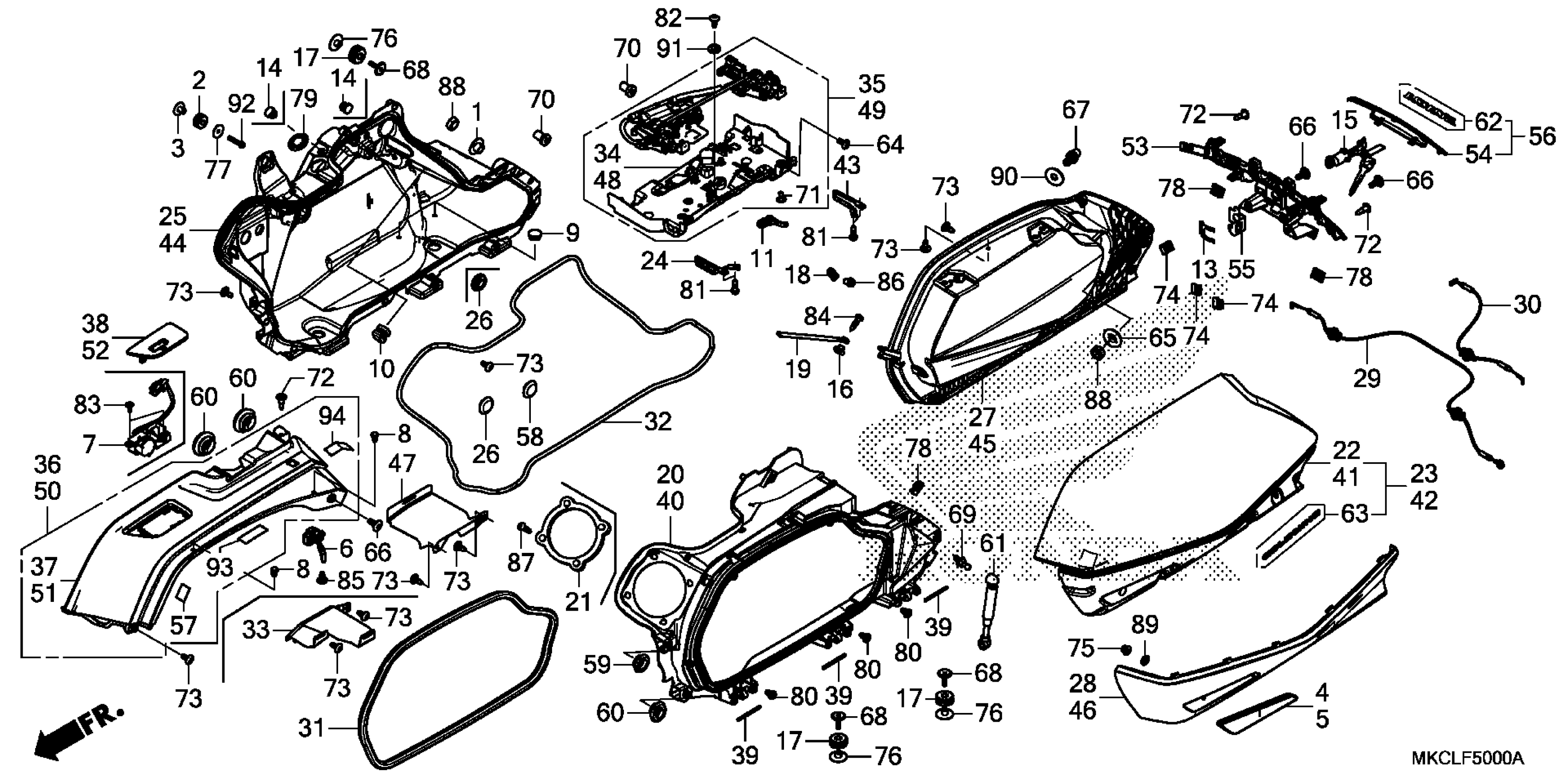

Honda GL1800DAC (20) MOTORCYCLE, JPN, VIN# JH2SC795-LK200001 SADDLEBAG Diagram

COLLAR (8MM)

18422-MR1-000

$5.19

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$4.83

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.60

REFLECTOR, R. RR. REFLEX | Use up to Frame SN LK200479. This part replaces 33743-MKC-A03.

33743-MKC-A04

$50.09

REFLECTOR, R. RR. REFLEX | Use from Frame SN LK200480.

33743-MKC-A04

$50.09

REFLECTOR, L. RR. REFLEX | Use up to Frame SN LK200479. This part replaces 33744-MKC-A03.

33744-MKC-A04

$50.62

REFLECTOR, L. RR. REFLEX

33744-MKC-A04

$50.62

SWITCH ASSY., LID OPENER

35380-MKC-A01

$44.50

SWITCH ASSY., PASSENGER

39500-MKC-A01

$83.69

PLUG, HEAD PIPE

50049-046-000

$1.88

PLUG, HOLE

50317-254-000

$2.07

PLUG, HOLE

50318-041-600

$2.04

LEVER, HOT STARTER

53190-MEN-670

$15.57

TAPE, COVER

64382-MM5-300

$2.44

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.71

KEY, EMERGENCY This part replaces 77234-MKC-A01.

77234-MKC-A02

$41.82

COLLAR, FENDER SETTING

80103-MCJ-750

$2.38

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.34

STAY B, LID STOPPER

81254-MN5-000

$4.99

CABLE, SADDLEBAG STOPPER

81255-MKC-A00

$12.99

BODY, R. SADDLEBAG

81311-MKC-A00

$671.49

LID, R. SADDLEBAG (TYPE1)

81320-MKC-A70ZA

$716.75

ROD A, SADDLEBAG STRIKER

81324-MKC-A00

$14.18

PANEL, R. SADDLEBAG

81331-MKC-A00

$220.85

PLUG, BLIND (20MM)

81336-MKC-A00

$4.82

INNER LID, R. SADDLEBAG

81341-MKC-A00

$216.43

COVER, R. SADDLEBAG LID *NH1* (BLACK)

81344-MKC-A00ZA

$59.90

CABLE, R. SADDLEBAG EMERGENCY

81345-MKC-A01

$20.90

CABLE, L. SADDLEBAG EMERGENCY

81346-MKC-A01

$14.18

RUBBER, SADDLEBAG LID SEAL

81350-MKC-A00

$44.96

RUBBER, BACK PANEL SEAL

81351-MKC-A00

$20.91

GUARD, R. SADDLEBAG HEAT

81359-MKC-A00

$17.01

COVER, R. SADDLEBAG CATCH

81362-MKC-A00

Unavailable

CATCH ASSY., R. SADDLEBAG

81365-MKC-A01

$284.60

COVER, R. SADDLEBAG (UPPER) (TYPE5)

81393-MKC-A00ZA

$206.16

COVER, R. SADDLEBAG SWITCH

81395-MKC-A00

$23.69

PIN, SADDLEBAG HINGE

81401-MKC-A00

$3.97

BODY, L. SADDLEBAG

81411-MKC-A00

$671.49

LID, L. SADDLEBAG (TYPE1)

81420-MKC-A70ZA

$716.75

ROD B, SADDLEBAG STRIKER

81424-MKC-A00

$14.18

PANEL, L. SADDLEBAG

81431-MKC-A00

$220.85

INNER LID, L. SADDLEBAG

81441-MKC-A00

$216.43

COVER, L. SADDLEBAG LID *NH1* (BLACK)

81444-MKC-A00ZA

$41.47

GUARD, L. SADDLEBAG HEAT

81459-MKC-A00

$14.18

COVER, L. SADDLEBAG CATCH

81462-MKC-A00

Unavailable

CATCH ASSY., L. SADDLEBAG

81465-MKC-A01

$284.60

COVER, L. SADDLEBAG (UPPER) (TYPE5)

81493-MKC-A00ZA

$206.16

COVER, L. SADDLEBAG SWITCH

81495-MKC-A00

$23.69

COWL, RR. CENTER SADDLEBAG

81501-MKC-A00

$44.79

COVER, RR. CENTER SADDLEBAG

81502-MKC-A00

$16.10

STAY, EMERGENCY CABLE

81504-MKC-A00

$7.07

TAPE D, PROTECTION This part replaces 81997-MKC-A00.

81997-MKC-A01

$1.97

TAPE D, PROTECTION

81997-MKC-A01

$1.97

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$5.26

GROMMET, RR. COVER

83504-GE0-000

$2.80

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

DAMPER, SADDLEBAG LID

83590-MKC-A01

$49.28

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.28

COLLAR A, FENDER SETTING

90006-KC5-000

$1.74

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

STUD, BALL

90108-KWR-003

$5.37

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.46

STUD, BALL

90109-SCK-003

$17.63

NUT, WELL (5MM)

90111-MGS-D70

$3.23

SCREW (5X12)

90112-MJK-N20

$2.07

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.07

NUT, SPRING (5MM)

90301-KE1-003

$3.01

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.83

WASHER, FENDER MOUNTING

90506-430-000

$2.75

NUT, CLIP (5MM)

90677-KAN-961

$3.89

GROMMET (30MM)

90830-T0T-003

$0.54

SCREW, TAPPING (4X8)

93901-24180

$0.66

SCREW, TAPPING (5X16)

93901-25380

$0.84

SCREW, TAPPING (4X10)

93903-24220

$0.84

SCREW, TAPPING (4X10)

93903-24280

$1.25

SCREW, TAPPING (5X20)

93903-25420

$0.81

SCREW, TAPPING (3X8)

93903-32180

$0.81

SCREW, TAPPING (4X16)

93911-14480

$0.84

NUT, HEX. (8MM)

94001-08000-0S

$1.21

WASHER, PLAIN (5MM)

94101-05800

$0.91

WASHER, PLAIN (8MM)

94101-08000

$0.76

WASHER, PLAIN (4MM)

94103-04800

$0.91

BOLT, FLANGE (6X32)

96001-06032-00

$1.29

TAPE E, PROTECTION

81998-MKC-A00

$2.96

TAPE F, PROTECTION

81999-MKC-A00

$3.50
