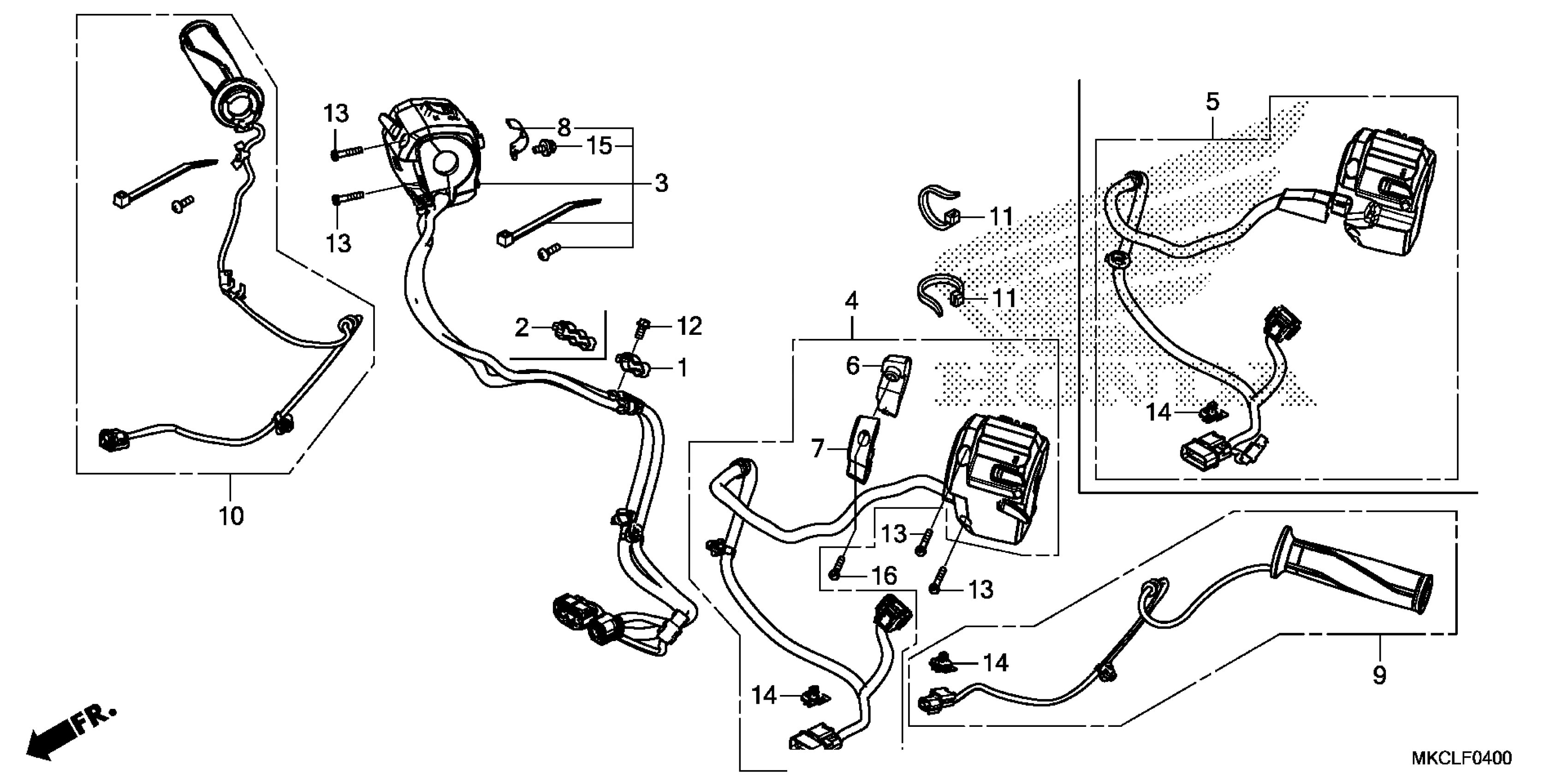

Honda GL1800DAC (20) MOTORCYCLE, JPN, VIN# JH2SC795-LK200001 HANDLE SWITCH Diagram

CLAMP, SWITCH HARNESS

32154-MKC-A00

$5.20

SWITCH & APS ASSY.

35135-MKC-A01

$501.92

SWITCH ASSY., TURN SIGNAL

35200-MKC-A02

$799.70

COVER, FR.

35211-MKC-A01

$8.15

COVER, RR.

35212-MKC-A01

$8.15

PLATE SET

37971-MKC-A01

$4.43

GRIP, L. HEATED

53166-MKC-A01

$209.93

GRIP ASSY., R. HEATED

53169-MKC-A02

$211.36

BAND, NYLON

83645-GG0-000

$1.93

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

SCREW-WASHER (5X25)

90508-MGE-D00

$1.49

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

SCREW-WASHER (5X8)

93892-05008-08

$1.49

SCREW-WASHER (5X20)

93892-05020-07

$1.49

SCREW-WASHER (5X20) This part replaces 93892-05020-17.

93892-05020-07

$1.49
