Description

Price

1

SEAL, RING (21.2MM)

22814-RGC-003

$12.00

2

RING, SEAL (28MM)

22815-MGE-D01

$3.61

3

MAINSHAFT (INNER) (18T)

23210-MKC-A00

$417.35

4

PLATE A, BEARING SETTING

23212-MKC-A00

$13.91

5

PLATE B, BEARING SETTING

23213-MKC-A00

$18.81

6

MAINSHAFT (OUTER) (23T)

23230-MKC-A00

$387.13

7

COLLAR, CLUTCH (OUTER)

23235-MKC-A00

$38.28

8

GEAR, MAINSHAFT THIRD (23T)

23451-MKC-A00

$109.68

9

COLLAR (32MM)

23462-MCA-000

$14.21

10

GEAR, MAINSHAFT FOURTH (26T)

23471-MKC-A00

$108.35

11

COLLAR (42X45X11.5)

23472-MKC-A00

$15.78

12

GEAR, MAINSHAFT FIFTH (39T)

23491-MKC-A00

$110.54

13

GEAR, MAINSHAFT SIXTH (42T)

23511-MKC-A00

$125.09

14

GEAR, MAINSHAFT TOP (46T)

23531-MKC-A00

$120.81

15

COLLAR, SPLINE (32X14)

23532-MKC-A00

$17.12

16

SPROCKET, MAINSHAFT REVERSE (25T)

23551-MKC-A00

$56.43

17

CHAIN, REVERSE (40L) (BORG WARNER)

23552-MKC-A01

$73.57

18

NUT, LOCK (25MM)

90231-MCH-000

$6.48

19

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.23

20

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.54

21

WASHER, SPLINE (32X31X1)

90452-MKC-A00

$2.87

22

WASHER, SPLINE (42X49.5X1.5)

90493-MKC-A00

$8.53

23

WASHER, THRUST (28MM)

90554-MCA-000

$2.21

24

CLIP (33.2MM)

90601-MGE-D00

$4.40

25

CIRCLIP (42MM)

90602-MKC-A00

$5.06

26

COLLAR, NEEDLE BEARING

90603-MKC-A00

$30.43

27

CIRCLIP (32MM)

90604-MCA-780

$3.19

28

COLLAR B, NEEDLE BEARING

90604-MGE-D00

$7.19

29

BEARING, NEEDLE (28X33X16.8) (NTN)

91012-PZ4-003

$70.49

30

BEARING, NEEDLE (28X32X27.2) (THOMPSON)

91021-ML3-003

$16.41

31

BEARING, RADIAL BALL (40X76X18)

91023-MKC-A01

$36.97

32

BEARING, RADIAL BALL (25X62X17) (EC)

91024-MKC-A01

$25.87

33

O-RING (23.3X1.9)

91306-MGE-D01

$1.79

34

O-RING (35.5X1.9)

91320-RT4-003

$1.63

35

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.50

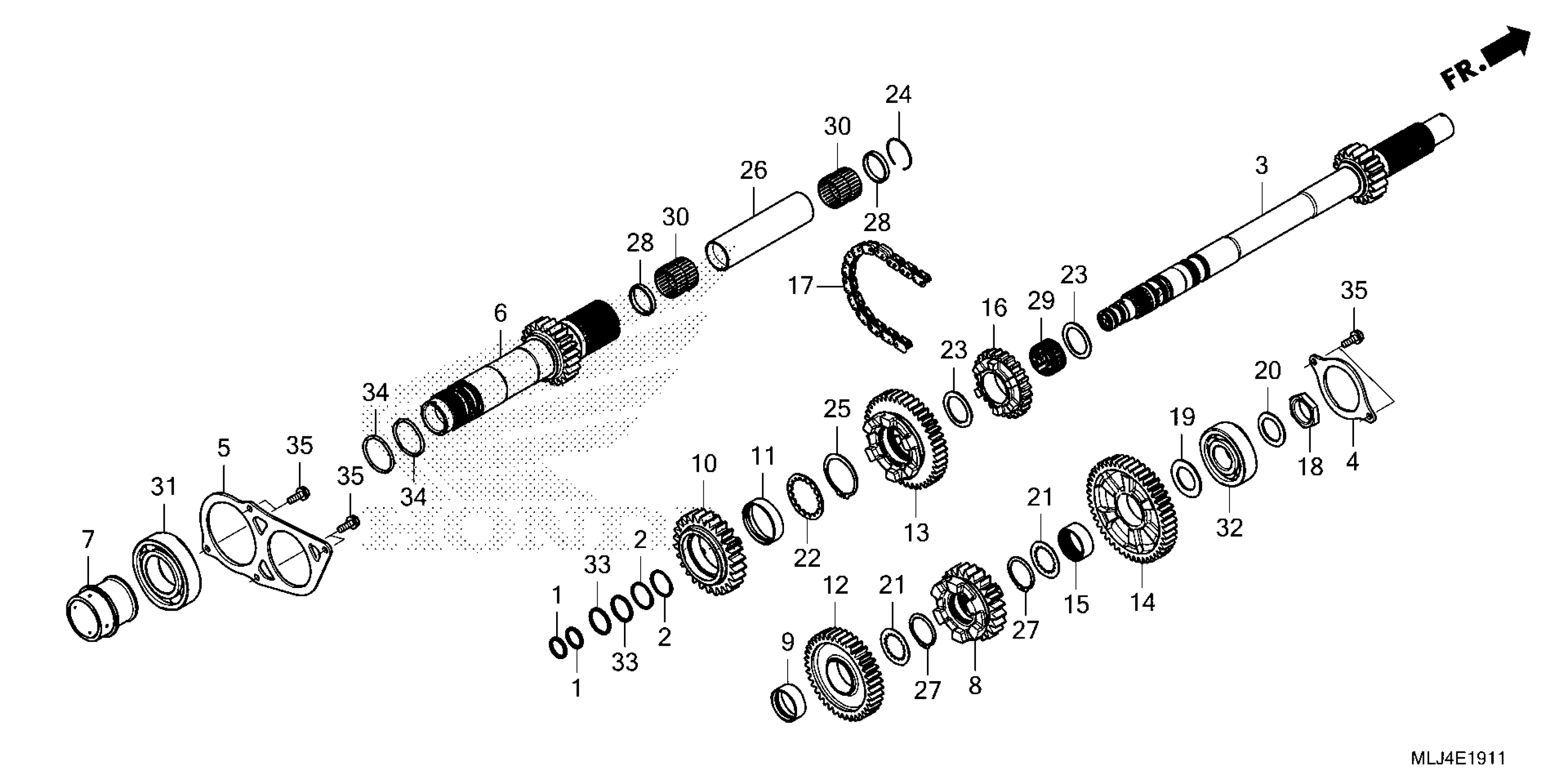

Honda GL1800DA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC797-PK500001 TRANSMISSION (MAINSHAFT) (DCT) Diagram
