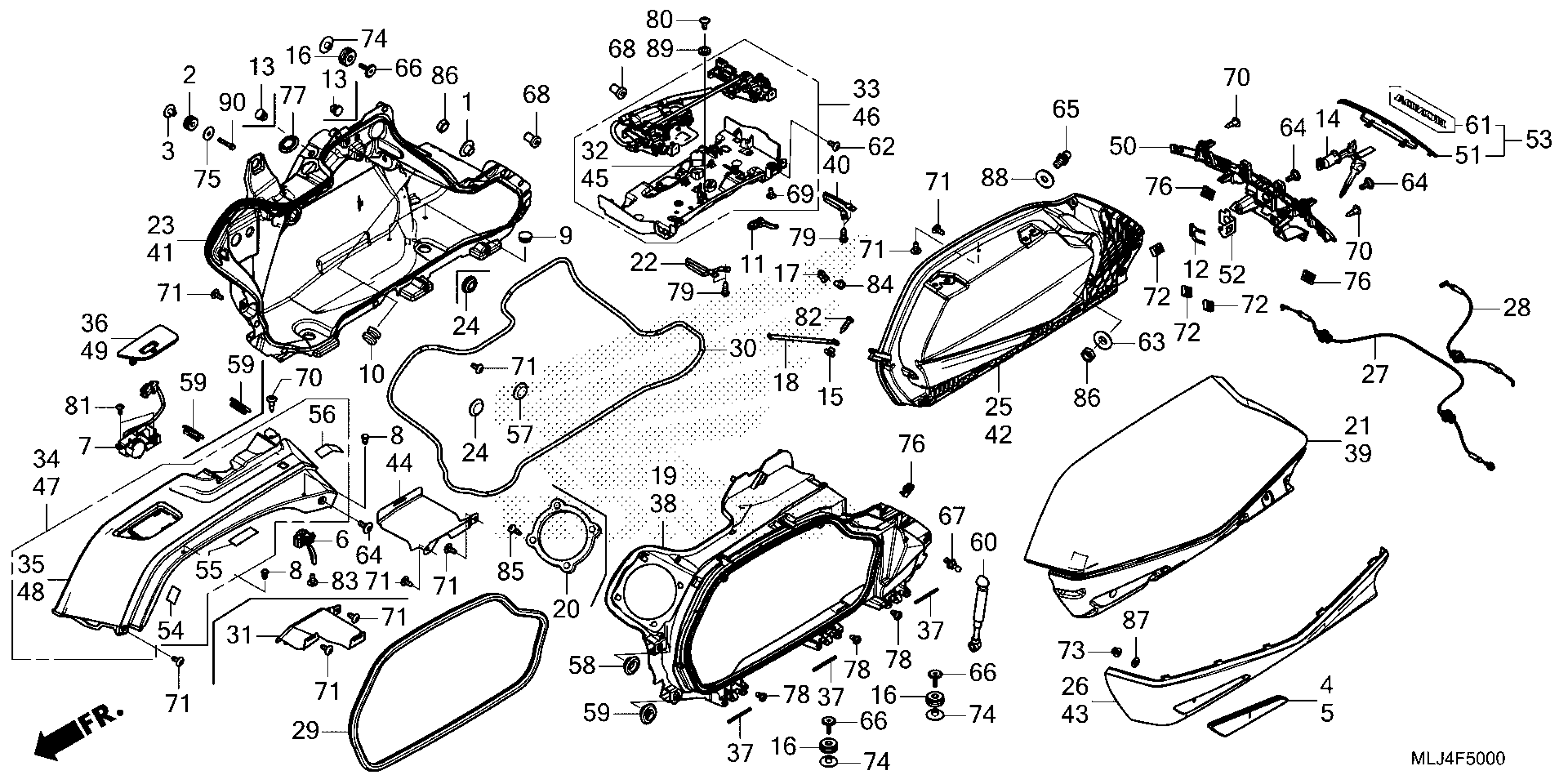

Honda GL1800DA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC797-PK500001 SADDLEBAG Diagram

COLLAR (8MM)

18422-MR1-000

$5.62

RUBBER, RADIATOR MOUNTING

19051-KA3-710

$5.05

COLLAR, RADIATOR MOUNTING

19052-KA3-710

$6.91

REFLECTOR, R. RR. REFLEX

33743-MKC-A04

$54.20

REFLECTOR, L. RR. REFLEX

33744-MKC-A04

$51.64

SWITCH ASSY., LID OPENER

35380-MKC-A01

$48.16

SWITCH ASSY., PASSENGER

39500-MKC-A01

$90.59

PLUG, HEAD PIPE

50049-046-000

$2.03

PLUG, HOLE

50317-254-000

$2.14

PLUG, HOLE

50318-041-600

$2.11

LEVER, HOT STARTER

53190-MEN-670

$16.96

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

RUBBER, SEAT SIDE (RIGHT SIDE)

77212-965-000

$4.94

KEY, EMERGENCY This part replaces 77234-MKC-A01.

77234-MKC-A02

$45.26

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$16.09

STAY B, LID STOPPER

81254-MN5-000

$5.23

CABLE, SADDLEBAG STOPPER

81255-MKC-A00

$14.05

BODY, R. SADDLEBAG

81311-MKC-A00

$726.82

LID, R. SADDLEBAG (TYPE1)

81320-MKC-A00ZD

$694.49

ROD A, SADDLEBAG STRIKER

81324-MKC-A00

$15.34

PANEL, R. SADDLEBAG

81331-MKC-A00

$239.02

PLUG, BLIND (20MM)

81336-MKC-A00

$5.21

INNER LID, R. SADDLEBAG

81341-MKC-A00

$234.21

COVER, R. SADDLEBAG LID *NH1* (BLACK)

81344-MKC-A00ZA

$64.82

CABLE, R. SADDLEBAG EMERGENCY

81345-MKC-A01

$22.62

CABLE, L. SADDLEBAG EMERGENCY

81346-MKC-A01

$15.34

RUBBER, SADDLEBAG LID SEAL

81350-MKC-A00

$48.66

RUBBER, BACK PANEL SEAL

81351-MKC-A00

$22.64

GUARD, R. SADDLEBAG HEAT

81359-MKC-A00

$18.41

COVER, R. SADDLEBAG CATCH

81362-MKC-A00

Unavailable

CATCH ASSY., R. SADDLEBAG

81365-MKC-A01

$307.98

COVER, R. SADDLEBAG (UPPER) (TYPE1)

81393-MKC-A00ZE

$171.21

COVER, R. SADDLEBAG SWITCH

81395-MKC-A00

$25.64

PIN, SADDLEBAG HINGE

81401-MKC-A00

$4.30

BODY, L. SADDLEBAG

81411-MKC-A00

$726.82

LID, L. SADDLEBAG (TYPE1)

81420-MKC-A00ZD

$694.49

ROD B, SADDLEBAG STRIKER

81424-MKC-A00

$15.34

PANEL, L. SADDLEBAG

81431-MKC-A00

$239.02

INNER LID, L. SADDLEBAG

81441-MKC-A00

$234.21

COVER, L. SADDLEBAG LID *NH1* (BLACK)

81444-MKC-A00ZA

$44.89

GUARD, L. SADDLEBAG HEAT

81459-MKC-A00

$15.34

COVER, L. SADDLEBAG CATCH

81462-MKC-A00

Unavailable

CATCH ASSY., L. SADDLEBAG

81465-MKC-A01

$307.98

COVER, L. SADDLEBAG (UPPER) (TYPE1)

81493-MKC-A00ZE

$171.21

COVER, L. SADDLEBAG SWITCH

81495-MKC-A00

$25.64

COWL, RR. CENTER SADDLEBAG

81501-MKC-A00

$48.48

COVER, RR. CENTER SADDLEBAG

81502-MKC-A00

$17.54

STAY, EMERGENCY CABLE

81504-MKC-A00

$7.66

TAPE D, PROTECTION

81997-MKC-A01

$2.13

TAPE E, PROTECTION

81998-MKC-A00

$3.20

TAPE F, PROTECTION

81999-MKC-A00

$3.79

GROMMET, DRAIN HOLE (25MM)

82871-671-000

$4.45

GROMMET, RR. COVER

83504-GE0-000

$2.92

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

DAMPER, SADDLEBAG LID

83590-MKC-A01

$53.34

SCREW, SPECIAL (5X16)

90001-MG1-000

$4.48

COLLAR A, FENDER SETTING

90006-KC5-000

$1.89

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.17

STUD, BALL

90108-KWR-003

$5.80

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.74

STUD, BALL

90109-SCK-003

$15.34

NUT, WELL (5MM)

90111-MGS-D70

$3.39

SCREW (5X12)

90112-MJK-N20

$2.25

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

NUT, SPRING (5MM)

90301-KE1-003

$2.97

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$5.05

WASHER, FENDER MOUNTING

90506-430-000

$2.92

NUT, CLIP (5MM)

90677-KAN-961

$4.07

GROMMET (30MM)

90830-T0T-003

$1.49

SCREW, TAPPING (4X8)

93901-24180

$1.49

SCREW, TAPPING (5X16)

93901-25380

$1.49

SCREW, TAPPING (4X10)

93903-24220

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

SCREW, TAPPING (5X20)

93903-25420

$1.49

SCREW, TAPPING (3X8)

93903-32180

$1.49

SCREW, TAPPING (4X16)

93911-14480

$1.49

NUT, HEX. (8MM)

94001-08000-0S

$1.49

WASHER, PLAIN (5MM)

94101-05800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, PLAIN (4MM)

94103-04800

$1.49

BOLT, FLANGE (6X32)

96001-06032-00

$1.49
