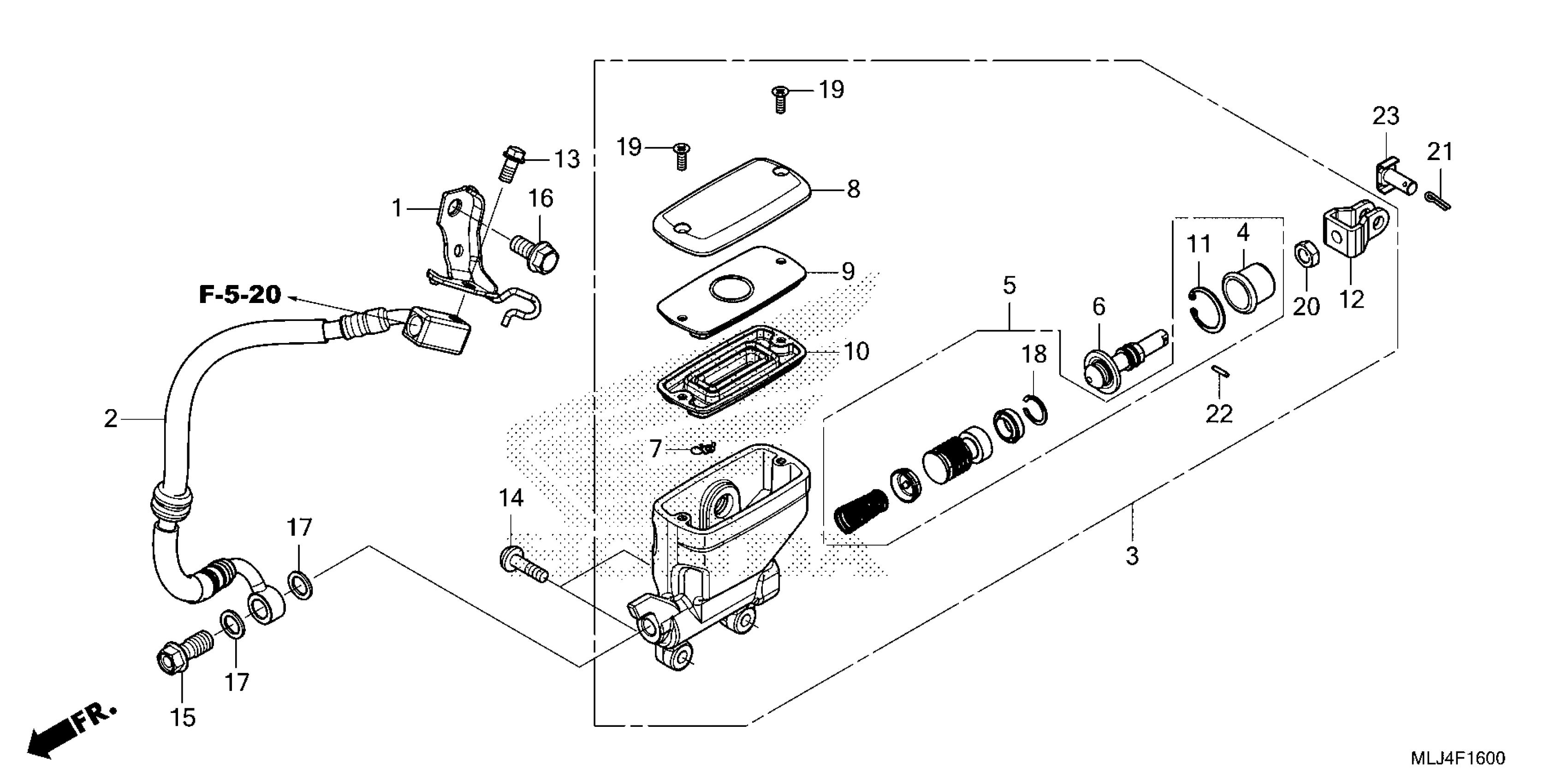

Honda GL1800DA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC797-PK500001 REAR BRAKE MASTER CYLINDER Diagram

STAY B, RR. BRAKE

43163-MKC-A00

$7.31

HOSE A, RR. BRAKE

43310-MLJ-A01

$43.51

MASTER CYLINDER ASSY., RR. (NISSIN)

43500-MKC-A01

$256.25

BOOT

43504-MB2-006

$10.04

PISTON SET, RR. MASTER CYLINDER

43520-MKC-A01

$26.48

ROD ASSY., PUSH

43530-MKC-A01

$22.25

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAH-671

$14.30

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

BOLT, RR. MASTER CYLINDER (6X21)

90144-MKC-A00

$3.08

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

BOLT, FLANGE (8X16)

90164-GHB-630

$2.11

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP, PISTON

90651-MBG-006

$2.85

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

NUT, HEX. (8MM)

94002-08070-0S

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49

PIN, SPRING (2X10)

94305-20102

$1.49

PIN D, JOINT

95015-54000

$4.24
