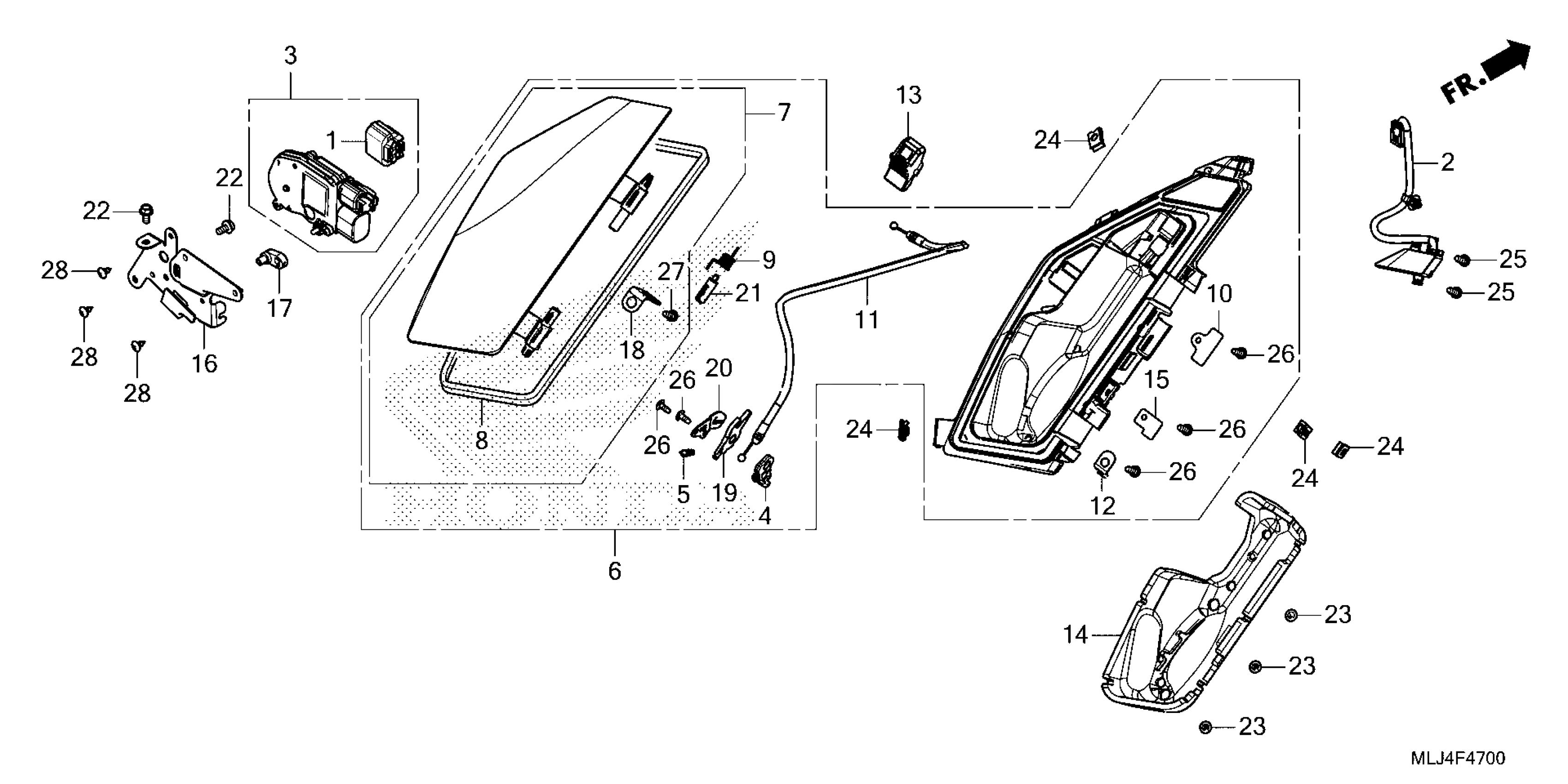

Honda GL1800DA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC797-PK500001 POCKET Diagram

DUMMY, CONNECTOR (WPC 3P 090 F)

32144-MKC-A00

$4.02

SWITCH ASSY., POCKET OPEN

35370-MKC-A01

$48.16

ACTUATOR ASSY. (HONDALOCK)

36520-MKC-305

$90.46

CAM B, POCKET COVER LOCK

64429-MKC-A00

$7.88

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.83

POCKET ASSY.

64610-MKC-A00

$87.39

LID ASSY., POCKET

64620-MKC-A00

$41.74

SEAL, POCKET

64622-MKC-A00

$6.16

SPRING, POCKET

64623-MKC-A00

$4.35

STAY, DAMPER

64632-MKC-A00

$3.69

CABLE, POCKET LID

64633-MKC-A01

$8.89

STAY, CABLE LOCK

64634-MKC-A00

$2.33

KNOB, FUEL LID OPENER

64635-MKC-A00

$11.74

CASE, SIDE POCKET (OUTER)

64636-MKC-A00

$92.07

PLATE, SIDE POCKET

64637-MKC-A00

$2.33

STAY, ACTUATOR

64641-MKC-A00

$19.21

JOINT, CABLE

77242-KSV-J00

$5.84

PLATE, POCKET LOCK

83128-MCA-S40

$3.15

CAM A, POCKET COVER LOCK

83132-MCA-S40

$6.44

STAY, CABLE LID

83174-MJN-A00

$3.38

DAMPER, CHARGE LID

83534-GGK-003

$4.02

BOLT, FLANGE (5X10)

90002-892-000

$1.49

NUT, PUSH (3MM)

90301-ST0-003

$3.25

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (3X12)

93901-22320

$1.49

SCREW, TAPPING (4X8)

93903-24120

$1.49

SCREW, TAPPING (4X8)

93903-24180

$1.49

SCREW, TAPPING (4X12)

93903-24320

$1.49
