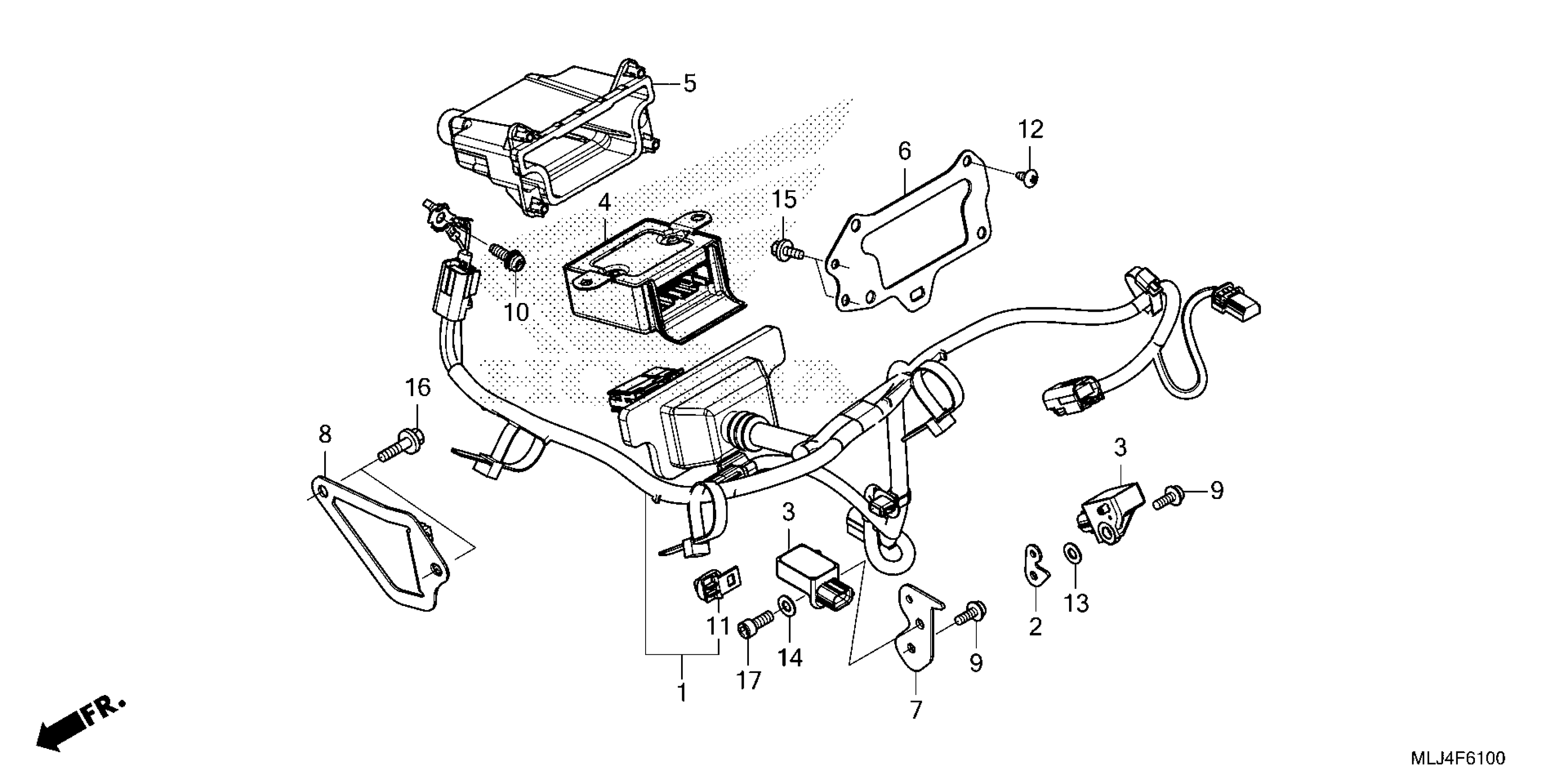

Honda GL1800DA3AC (23) MOTORCYCLE, JPN, VIN# JH2SC797-PK500001 AIRBAG HARNESS Diagram

SUB-HARNESS, AIRBAG

32191-MKC-A30

$324.20

STAY, G-SENSOR

50360-MKC-A30

$4.99

G-SENSOR ASSY.

77930-MKC-A31

$100.59

AIRBAG UNIT (DENSO)

77960-MKC-A31

$480.23

CASE, SRS UNIT

77961-MKC-A30

$36.03

STAY, SRS UNIT

77963-MKC-A30

$14.91

STAY, G-SENSOR

77964-MKC-A30

$8.29

STAY, SRS UNIT MOUNTING

77966-MKC-A30

$13.25

BOLT, TORX (6X16)

90106-MCA-A80

$3.57

BOLT, TORX GROUND (6X20)

90137-S84-A01

$5.38

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

SCREW, TAPPING (5X12)

93903-25220

$0.83

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (8X20)

95701-08020-08

$1.43

BOLT, SOCKET (6X16)

96600-06016-08

$1.58
