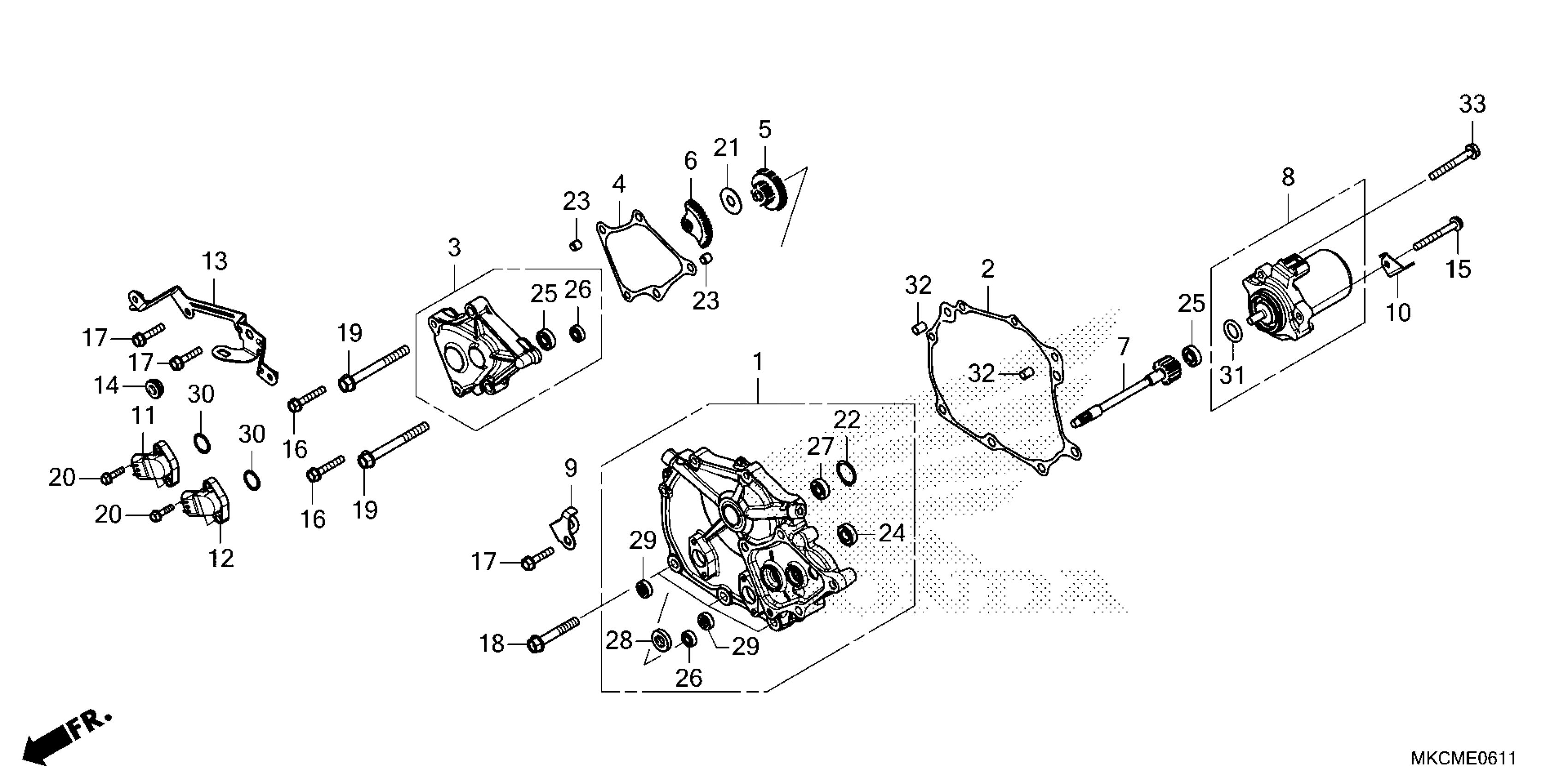

Honda GL1800DA3AC (21) MOTORCYCLE, JPN, VIN# JH2SC797-MK300001 SHIFT COVER (DCT) Diagram

#

Description
Price

1

COVER, SHIFT

11360-MKC-A00

$94.28

2

GASKET, SHIFT COVER

11365-MKC-A01

$13.60

3

COVER, REDUCTION GEAR

11520-MKC-A00

$72.00

4

GASKET, REDUCTION COVER

11525-MKC-A01

$7.37

5

GEAR, REDUCTION (65T/19T)

24615-MKC-A01

$70.07

6

GEAR, REDUCTION (50T)

24616-MKC-A01

$51.12

7

SHAFT, REDUCTION GEAR

24618-MKC-A00

$60.34

8

MOTOR, RATIO CONTROL This part replaces 31300-KVZ-631.

31300-KVZ-632

$266.32

9

STAY A, CLIP

32151-MKC-A00

$5.06

10

STAY, HARNESS CLIP (C)

32163-HL4-000

$3.46

11

SENSOR ASSY., ANGLE (350DEGREE)

38800-MKC-A01

$121.44

12

SENSOR ASSY., ANGLE (40DEGREE)

38810-MKC-A01

$129.65

13

STAY, FR. (LOWER) (INNER)

64412-MKC-A00

$12.82

14

RUBBER, AIR DUCT COVER SETTING

64586-MBW-D20

$2.93

15

BOLT, FLANGE (6X52) This part replaces 90001-MB0-000.

90009-HA0-000

$4.05

15

BOLT, FLANGE (6X52)

90009-HA0-000

$4.05

16

BOLT, FLANGE (6X35)

90031-MKC-A00

$2.09

17

BOLT, FLANGE (6X28)

90033-MKC-A00

$2.09

18

BOLT, FLANGE (8X50)

90076-MKC-A00

$3.00

19

BOLT, FLANGE (8X75)

90077-MKC-A00

$3.15

20

BOLT, FLANGE (5X20)

90097-MKC-A00

$1.96

21

WASHER (26X10.5)

90512-KRN-730

$2.40

22

CIRCLIP (INNER) (16)

90606-MKC-A00

$2.35

23

PIN, DOWEL (8X8)

90702-MB0-000

$3.51

24

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.15

25

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.03

26

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.03

27

BEARING, RADIAL BALL (8X16X4)

91030-MKC-A01

$8.06

28

OIL SEAL (10X21X5)

91204-HP1-601

$3.52

29

OIL SEAL (8X16X6) This part replaces 91208-MS2-611.

91254-792-003

$2.80

29

OIL SEAL (8X16X6) This part replaces 91208-689-005.

91254-792-003

$2.80

29

OIL SEAL (8X16X6)

91254-792-003

$2.80

30

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.51

31

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.65

32

PIN A, DOWEL (8X10)

94301-08100

$2.62

33

BOLT, FLANGE (6X28)

95701-06028-00

$1.68
