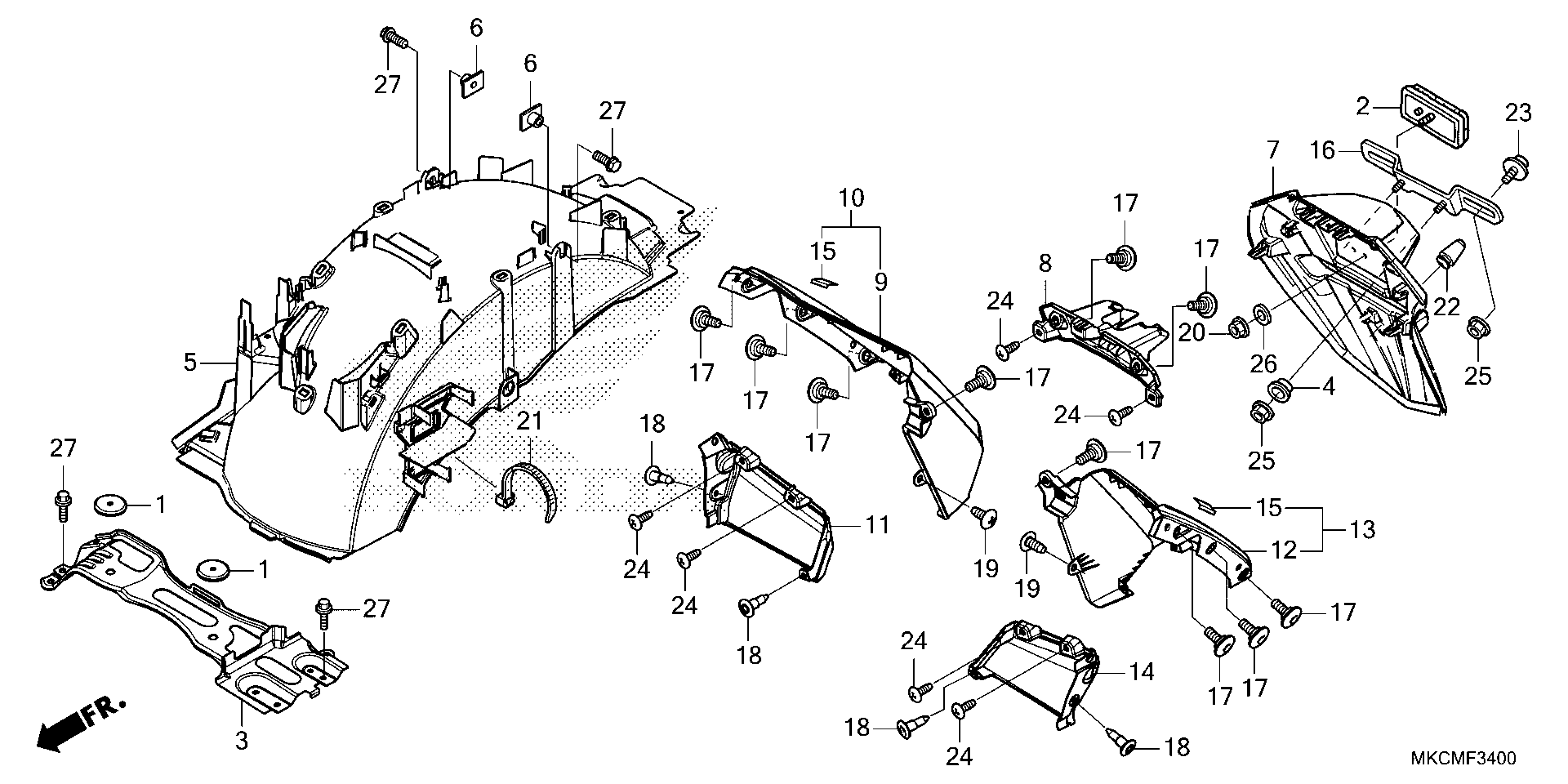

Honda GL1800DA3AC (21) MOTORCYCLE, JPN, VIN# JH2SC797-MK300001 REAR FENDER Diagram

CUSHION, RR. FUEL TANK

17615-MCA-000

$14.56

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

STAY, BATTERY SUPPORT

50330-MKC-A00

$74.07

COLLAR, SEAT SETTING

77103-MEE-000

$2.72

FENDER B, RR. This part replaces 80101-MKC-A00.

80101-MKC-A01

$201.44

NUT, RR. FENDER

80104-KJ2-000

$4.08

FENDER A, RR.

80106-MKC-A00

$78.05

STAY, LICENSE LIGHT

80107-MKC-A00

$23.34

COVER A, R. RR. SADDLEBAG (TYPE5)

80120-MKC-A00ZB

$125.97

COVER B, R. RR. SADDLEBAG

80126-MKC-A00

$20.80

COVER A, L. RR. SADDLEBAG (TYPE5)

80130-MKC-A00ZB

$126.00

COVER B, L. RR. SADDLEBAG

80136-MKC-A00

$20.80

TAPE A, PROTECTION

81994-MKC-A00

$3.20

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.17

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.73

PLUG, CONE

90899-KL8-000

$3.26

SCREW, TAPPING (4X12)

93903-24380

$1.49

WASHER, PLAIN (5MM)

94101-05800

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
