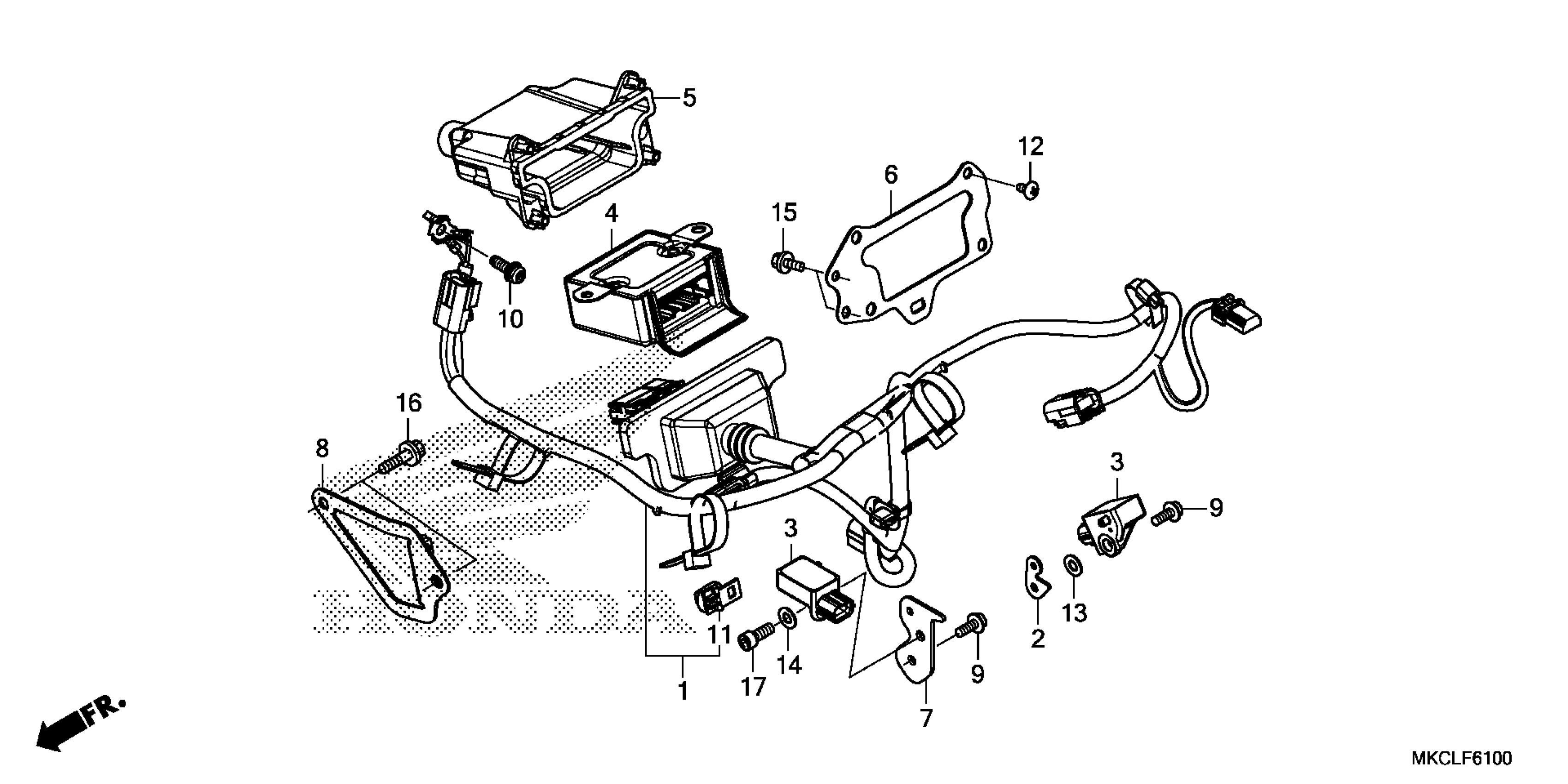

Honda GL1800DA3AC (20) MOTORCYCLE, JPN, VIN# JH2SC797-LK200001 AIRBAG HARNESS Diagram

#

Description
Price

1

SUB-HARNESS, AIRBAG

32191-MKC-A30

$356.03

2

STAY, G-SENSOR

50360-MKC-A30

$5.48

3

G-SENSOR ASSY.

77930-MKC-A31

$110.48

4

AIRBAG UNIT (DENSO)

77960-MKC-A31

$527.38

5

CASE, SRS UNIT

77961-MKC-A30

$39.57

6

STAY, SRS UNIT

77963-MKC-A30

$16.38

7

STAY, G-SENSOR

77964-MKC-A30

$9.10

8

STAY, SRS UNIT MOUNTING

77966-MKC-A30

$14.54

9

BOLT, TORX (6X16)

90106-MCA-A80

$3.83

10

BOLT, TORX GROUND (6X20)

90137-S84-A01

$6.08

11

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

12

SCREW, TAPPING (5X12)

93903-25220

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

14

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49

15

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

16

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

17

BOLT, SOCKET (6X16)

96600-06016-08

$1.74
