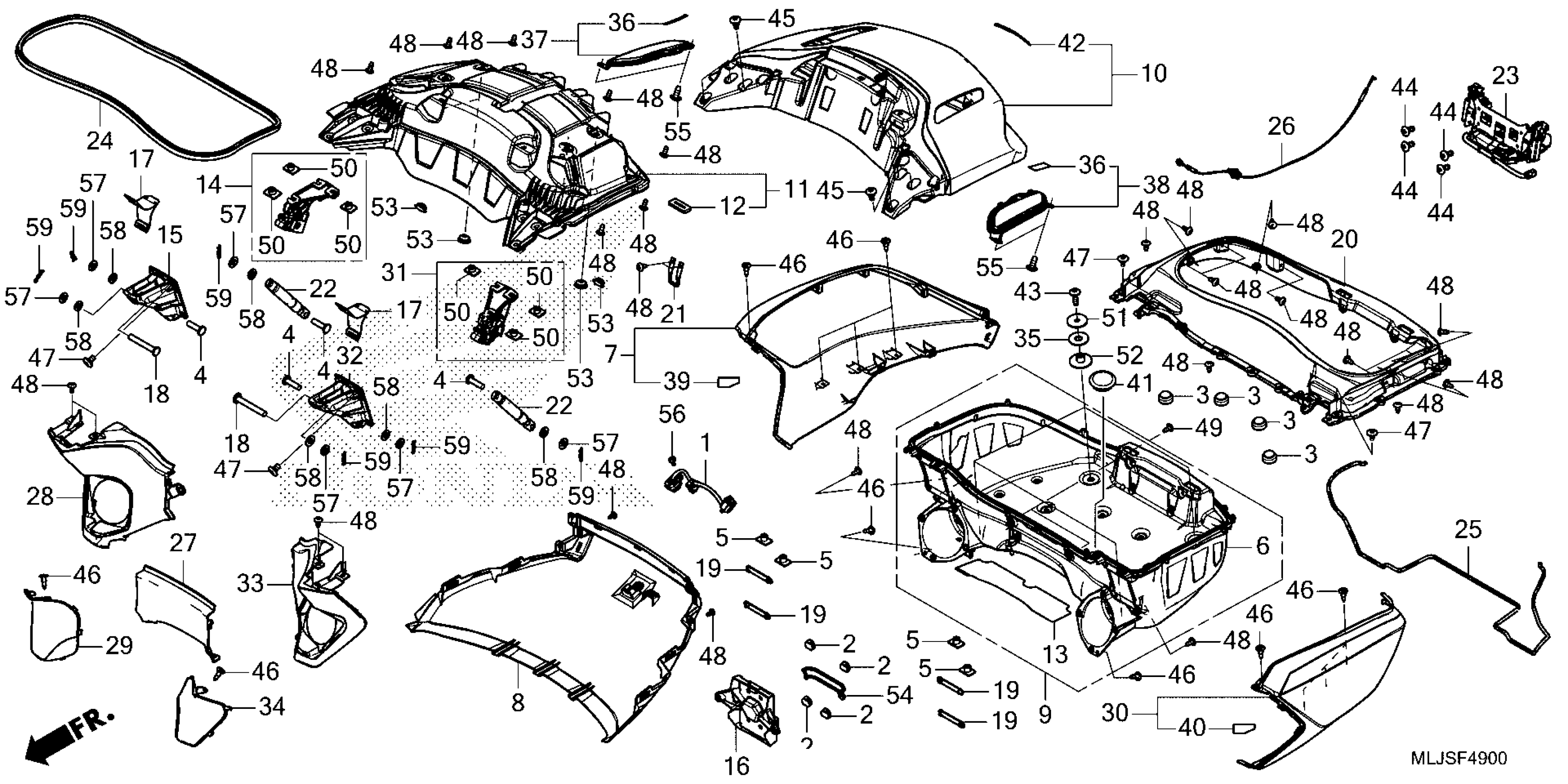

Honda GL1800DA2AC (25) MOTORCYCLE, JPN, VIN# JH2SC797-SK700001 TO JH2SC797-SK799999 TRUNK BOX Diagram

#

Description
Price

1

SWITCH ASSY., TRUNK OPENER

35390-MKC-A01

$43.86

2

PLUG, HOLE

50318-041-600

$2.01

3

RUBBER, SEAT MOUNTING

77110-KA3-730

$4.70

4

PIN, SEAT HOOK

77156-GZ4-670

$4.80

5

NUT, RR. FENDER

80104-KJ2-000

$3.80

6

BOX LOWER, TRUNK

81111-MKC-L80

$631.28

7

CVR, R. *R337M*

81113-MLJ-M20ZA

$137.03

8

COVER (TYPE1)

81115-MLJ-M20ZA

$192.74

9

BOX, TRUNK (LOWER) (INNER)

81119-MKC-L80

$658.46

10

LID SET (TYPE1)

81120-MLJ-M20ZA

$694.28

11

INNER LID, TRUNK

81126-MKC-L00

$115.87

12

MAT, LID (INNER)

81127-MKC-A00

$2.26

13

MAT, TRUNK PANEL

81128-MKC-A30

$25.35

14

HINGE A, R. TRUNK

81131-MKC-A00

$47.54

15

HINGE B, R. TRUNK

81132-MKC-A00

$46.03

16

HOLDER, TRUNK

81133-MKC-A30

$21.80

17

RUBBER, HINGE

81134-MKC-A00

$4.64

18

PIN A, TRUNK HINGE

81136-MKC-A00

$4.45

19

PLATE, TRUNK HINGE

81140-MKC-A00

$4.90

20

BOX, TRUNK (UPPER) (INNER)

81150-MKC-L00

$83.96

21

ROD, TRUNK STRIKER

81151-MKC-A00

$9.91

22

DAMPER, TRUNK LID

81155-MKC-L01

$54.57

23

CATCH, TRUNK

81160-MKC-A01

$452.97

24

RUBBER, TRUNK LID SEAL

81181-MKC-L00

$37.54

25

RUBBER, TRUNK BOX SEAL (INNER)

81182-MKC-L00

$29.51

26

CABLE, TRUNK EMERGENCY

81184-MKC-L01

$16.81

27

PANEL, FR. TRUNK (LOWER) *NH1* (BLACK)

81191-MKC-L00ZA

$23.12

28

COVER, R. FR. TRUNK *NH1* (BLACK)

81193-MKC-L00ZA

$36.29

29

COVER, R. RR. SPEAKER *NH1* (BLACK)

81194-MKC-L00ZA

$14.97

30

CVR, L. *R337M*

81213-MLJ-M20ZA

$137.03

31

HINGE A, L. TRUNK

81231-MKC-A00

$47.54

32

HINGE B, L. TRUNK

81232-MKC-A00

$46.03

33

COVER, L. FR. TRUNK *NH1* (BLACK)

81293-MKC-L00ZA

$36.29

34

COVER, L. RR. SPEAKER *NH1* (BLACK)

81294-MKC-L00ZA

$14.97

35

RUBBER, TRUNK MOUNTING

81356-MKC-A00

$2.00

36

SEAL, LID COVER

81552-MKC-L00

$7.00

37

COVER, R. (TYPE1)

81650-MLJ-A20ZB

$51.22

38

COVER, L. (TYPE1)

81655-MLJ-A20ZB

$49.00

39

TAPE, R. PROTECTION

81991-MKC-L00

$1.83

40

TAPE, L. PROTECTION

81992-MKC-L00

$1.83

42

EMBLEM, HONDA (100MM)

86102-MKC-L20

$27.17

43

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.52

44

SCREW (5X12)

90112-MJK-N20

$2.04

45

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.29

46

CLIP, BUMPER SEAL

90116-K2P-V61

$1.46

46

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

47

SCREW, PAN (6X11)

90119-MEW-920

$1.86

48

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.04

49

SCREW, TAPPING (5X16)

93903-25380

$0.83

50

NUT, SPECIAL (6X7)

90303-HA0-680

$3.57

51

WASHER, TRUNK SET

90506-MKC-A00

$2.19

52

COLLAR, RR. TRUNK

90508-MKC-A00

$6.29

53

PLUG, HOLE

90852-KPP-T00

$1.46

54

O-RING (81X4.5) (ARAI)

91315-MA6-003

$2.92

55

SCREW, TAPPING (4X10)

93903-24280

$1.23

56

SCREW, TAPPING (3X8)

93903-32180

$0.59

57

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

57

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

57

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

58

WASHER, SPRING (6MM)

94111-06800

$1.03

59

PIN, LOCK (6MM)

94251-06000

$0.94
