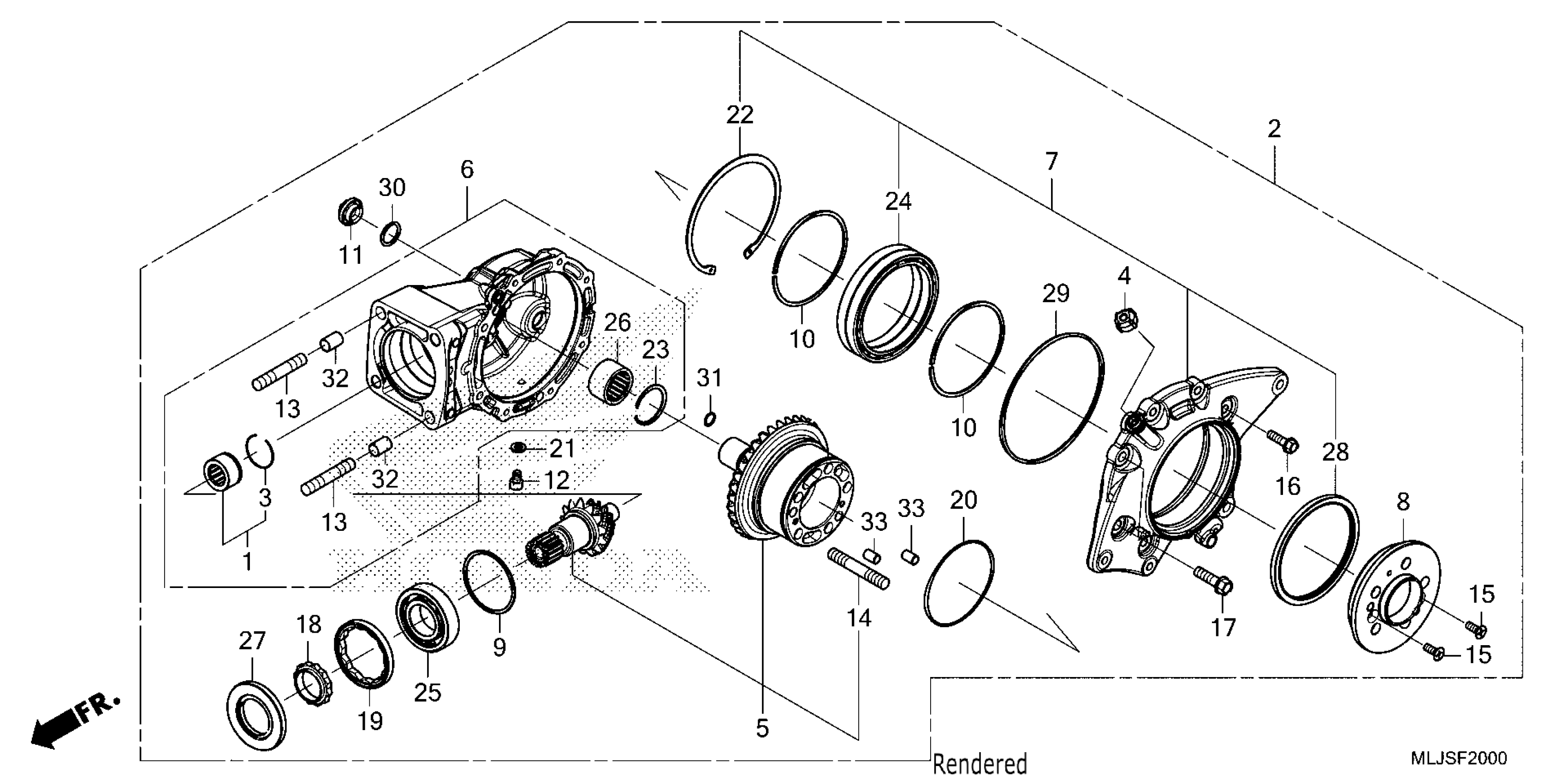

Honda GL1800DA2AC (25) MOTORCYCLE, JPN, VIN# JH2SC797-SK700001 TO JH2SC797-SK799999 FINAL DRIVEN GEAR Diagram

#

Description
Price

1

BEARING SET, NEEDLE

06910-MCA-000

$16.10

2

GEAR ASSY., FINAL

41300-MKC-L30

$1,700.48

3

RING, STOPPER

41305-MB4-770

$5.12

4

CAP, BREATHER

41306-MKC-A00

$6.51

5

GEAR SET, FINAL

41310-MKC-A00

$422.25

6

CASE SUB-ASSY., FINAL GEAR

41311-MKC-L30

$994.41

7

COVER SUB-ASSY., FINAL GEAR

41320-MKC-L30

$308.86

8

FLANGE, FINAL GEAR SIDE

41441-MKC-A00

$103.84

9

SHIM A, PINION GEAR (1.32)

41450-MGE-000

$9.90

9

SHIM B, PINION GEAR (1.38)

41451-MGE-000

$9.90

9

SHIM C, PINION GEAR (1.44)

41452-MGE-000

$9.90

9

SHIM D, PINION GEAR (1.50)

41453-MGE-000

$9.90

9

SHIM E, PINION GEAR (1.56)

41454-MGE-000

$9.90

9

SHIM F, PINION GEAR (1.62)

41455-MGE-000

$9.90

9

SHIM G, PINION GEAR (1.68)

41456-MGE-000

$9.90

10

SHIM A, RING GEAR (1.82)

41530-MCA-000

$7.14

10

SHIM B, RING GEAR (1.88)

41531-MCA-000

$7.14

10

SHIM C, RING GEAR (1.94)

41532-MCA-000

$7.14

10

SHIM D, RING GEAR (2.00)

41533-MCA-000

$7.14

10

SHIM E, RING GEAR (2.06)

41534-MCA-000

$7.14

10

SHIM F, RING GEAR (2.12)

41535-MCA-000

$7.14

10

SHIM G, RING GEAR (2.18)

41536-MCA-000

$7.14

10

SHIM H, RING GEAR (2.24)

41537-MCA-000

$7.14

10

SHIM I, RING GEAR (2.30)

41538-MCA-000

$7.14

10

SHIM J, RING GEAR (2.36)

41539-MCA-000

$7.14

10

SHIM K, RING GEAR (2.42)

41540-MCA-000

$7.14

10

SHIM L, RING GEAR (2.48)

41541-MCA-000

$7.14

10

SHIM S, RING GEAR (1.76)

41547-MCA-000

$7.74

11

CAP, FINAL GEAR CASE HOLE

41530-MGE-000

$14.98

12

BOLT, SOCKET (8X11)

90109-ME5-770

$5.34

13

BOLT, STUD (12X48)

90124-MGE-300

$9.54

14

BOLT, STUD (12X51)

90125-MKC-A00

$5.26

15

SCREW, FLAT (6X16)

90132-MCA-000

$1.32

16

BOLT, FLANGE (8X28)

90132-MKC-A00

$2.54

17

BOLT, FLANGE (10X35)

90134-MGE-000

$2.62

18

NUT, LOCK (35MM)

90241-MCH-000

$7.78

19

NUT, LOCK (75MM)

90242-MCH-000

$22.09

20

O-RING

90351-MCA-003

$5.42

21

WASHER (8MM)

90471-580-000

$2.80

22

CIRCLIP (INNER) (125MM)

90653-MCA-000

$17.88

23

CIRCLIP (INNER) (42)

90654-MKC-A01

$3.58

24

BEARING, RADIAL BALL (100X125X26)

91051-MCA-003

$107.90

25

BEARING, BALL SPECIAL (35X72X17)

91054-MKC-A01

$28.09

26

BEARING, NEEDLE (30X42X23)

91057-MKC-A01

$18.25

27

OIL SEAL (42X76X8)

91254-MKC-A01

$13.04

28

OIL SEAL (110X125X7)

91265-MCA-003

$19.35

29

O-RING, FINAL GEAR CASE

91351-MKC-A00

$9.54

30

O-RING (21.5X2.9)

91352-MGE-003

$1.77

31

O-RING (12X1.5)

91355-MGE-700

$1.78

32

PIN A, DOWEL (14X20)

94301-14200

$2.25

33

PIN, DOWEL (10X16)

94303-10160

$2.25
