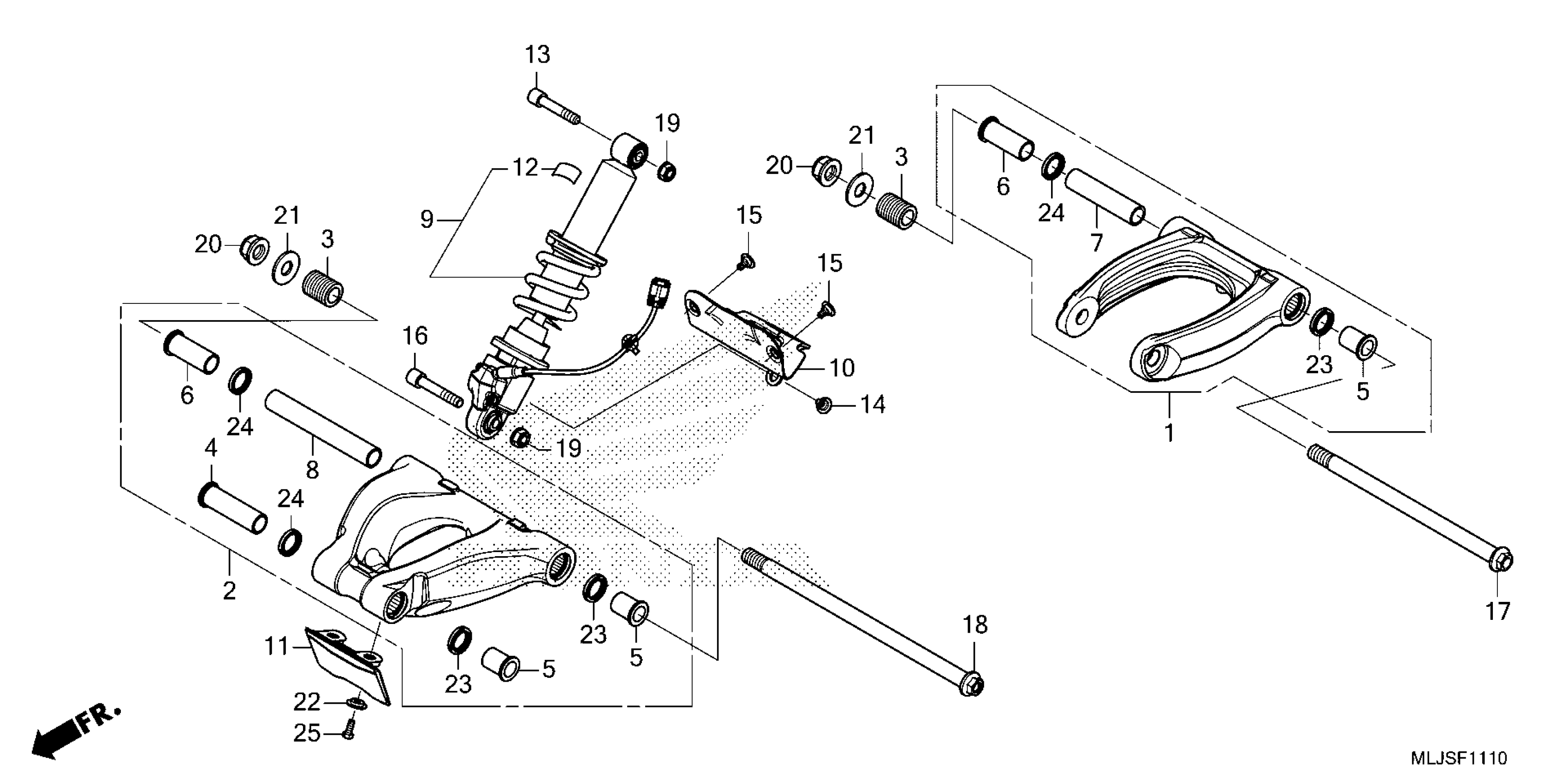

Description

Price

1

ARM ASSY., FR. (UPPER) (TYPE3)

51350-MKC-A00ZC

$445.62

2

ARM ASSY., FR. (LOWER) (TYPE3)

51360-MKC-A00ZC

$601.98

3

BOLT, FR. PIVOT ADJUSTING

51363-MKC-A00

$22.82

4

COLLAR A, R. PIVOT DISTANCE

51364-MKC-A00

$21.00

5

COLLAR, L. PIVOT DISTANCE

51365-MKC-A00

$13.69

6

COLLAR B, R. PIVOT DISTANCE

51366-MKC-A00

$18.87

7

COLLAR, FR. ARM DISTANCE (UPPER)

51367-MKC-A00

$10.84

8

COLLAR A, FR. ARM DISTANCE (LOWER)

51368-MKC-A00

$16.98

9

CUSHION ASSY., FR.

51400-MKC-AE1

$1,757.82

10

COVER, ARM (LOWER)

51405-MKC-A00

$132.72

11

FLAP, AIR GUIDE

61115-MKC-A00

$17.90

12

LABEL, RR. DAMPER CAUTION (ENGLISH)

87516-KV6-610

$4.93

13

BOLT, SOCKET (10X55)

90110-ML7-000

$5.43

14

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.59

15

SCREW, SPECIAL (5X15)

90114-MKC-A00

$2.92

16

BOLT, SOCKET (10X58)

90171-MKC-A00

$8.39

17

BOLT, FR. ARM PIVOT (UPPER)

90172-MKC-A00

$45.44

18

BOLT, FR. ARM PIVOT (LOWER)

90173-MKC-A00

$53.56

19

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

20

NUT, SPECIAL U (16MM)

90305-MCB-610

$8.43

21

WASHER, ARM PIVOT

90501-MKC-A00

$5.54

22

WASHER, KNUCKLE

90554-MBT-610

$2.23

23

OIL SEAL (22X30X5)

91253-HL1-A01

$5.80

24

DUST SEAL (22X29X4) (ARAI)

91283-ML7-003

$5.92

25

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

25

BOLT, HEX. (5X12)
