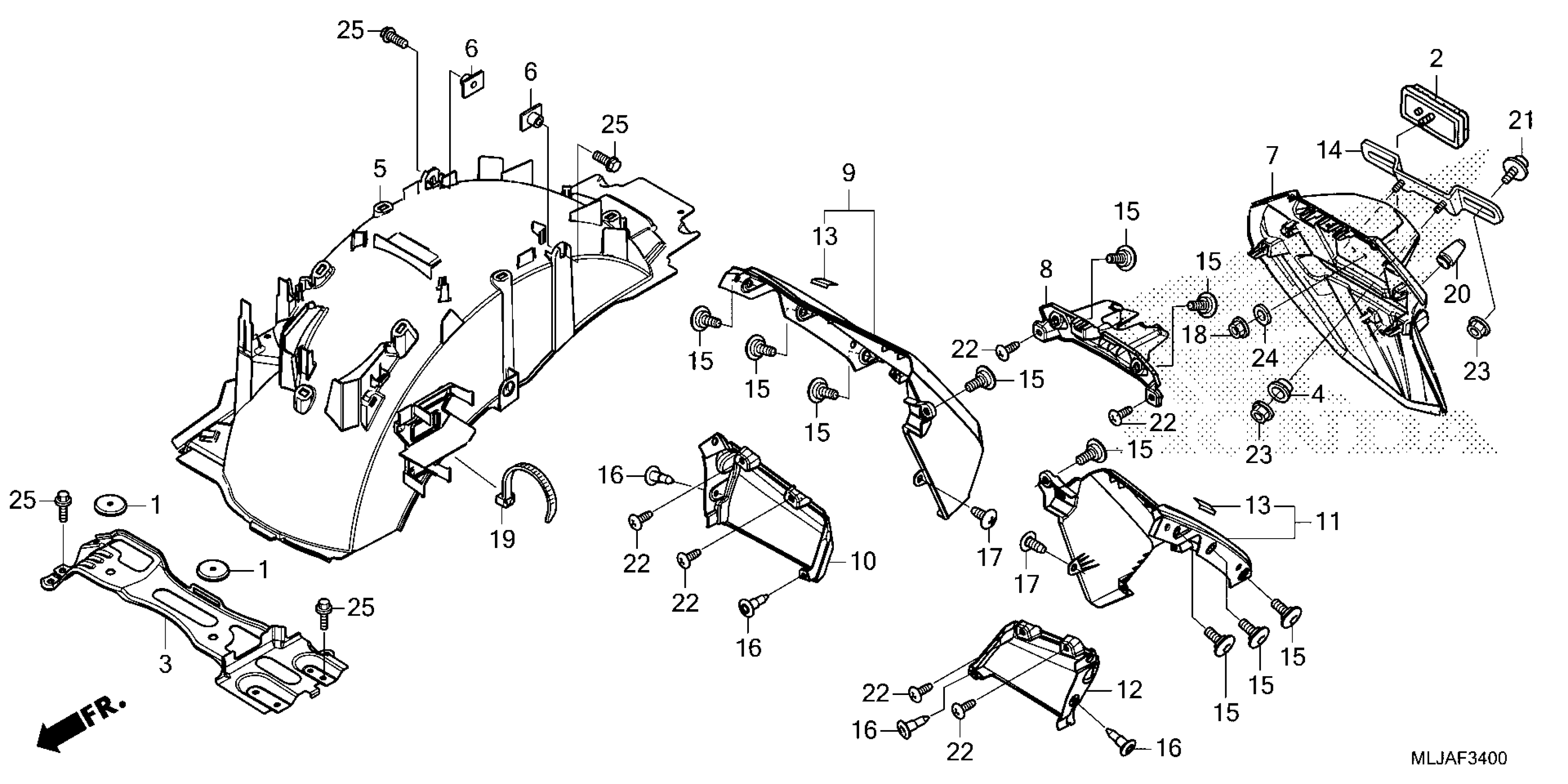

Honda GL1800DA2AC (24) MOTORCYCLE, JPN, VIN# JH2SC797-RK600001 TO JH2SC797-RK699999 REAR FENDER Diagram

CUSHION, RR. FUEL TANK

17615-MCA-000

$13.06

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

STAY, BATTERY SUPPORT

50330-MKC-A00

$68.44

COLLAR, SEAT SETTING

77103-MEE-000

$2.51

FENDER B, RR. This part replaces 80101-MKC-A00.

80101-MKC-A01

$186.12

NUT, RR. FENDER

80104-KJ2-000

$3.90

FENDER A, RR.

80106-MKC-A00

$72.12

STAY, LICENSE LIGHT

80107-MKC-A00

$21.57

COVER A, RR. (TYPE1)

80122-MLJ-AA0ZA

$84.37

COVER B, R. RR. SADDLEBAG

80126-MKC-A00

$19.22

COVER A, RR. (TYPE1)

80132-MLJ-AA0ZA

$84.37

COVER B, L. RR. SADDLEBAG

80136-MKC-A00

$19.22

TAPE A, PROTECTION

81994-MKC-A00

$2.96

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

SCREW, TAPPING (5X12)

90121-MJK-N20

$2.07

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.31

BAND, SUCTION HOSE (BLACK) (Honda Code 3522752)

90679-SG9-E01

$3.44

PLUG, CONE

90899-KL8-000

$3.01

SCREW, TAPPING (4X12)

93903-24380

Unavailable

WASHER, PLAIN (5MM)

94101-05800

$0.91

BOLT, FLANGE (6X16)

96001-06016-07

$0.97
