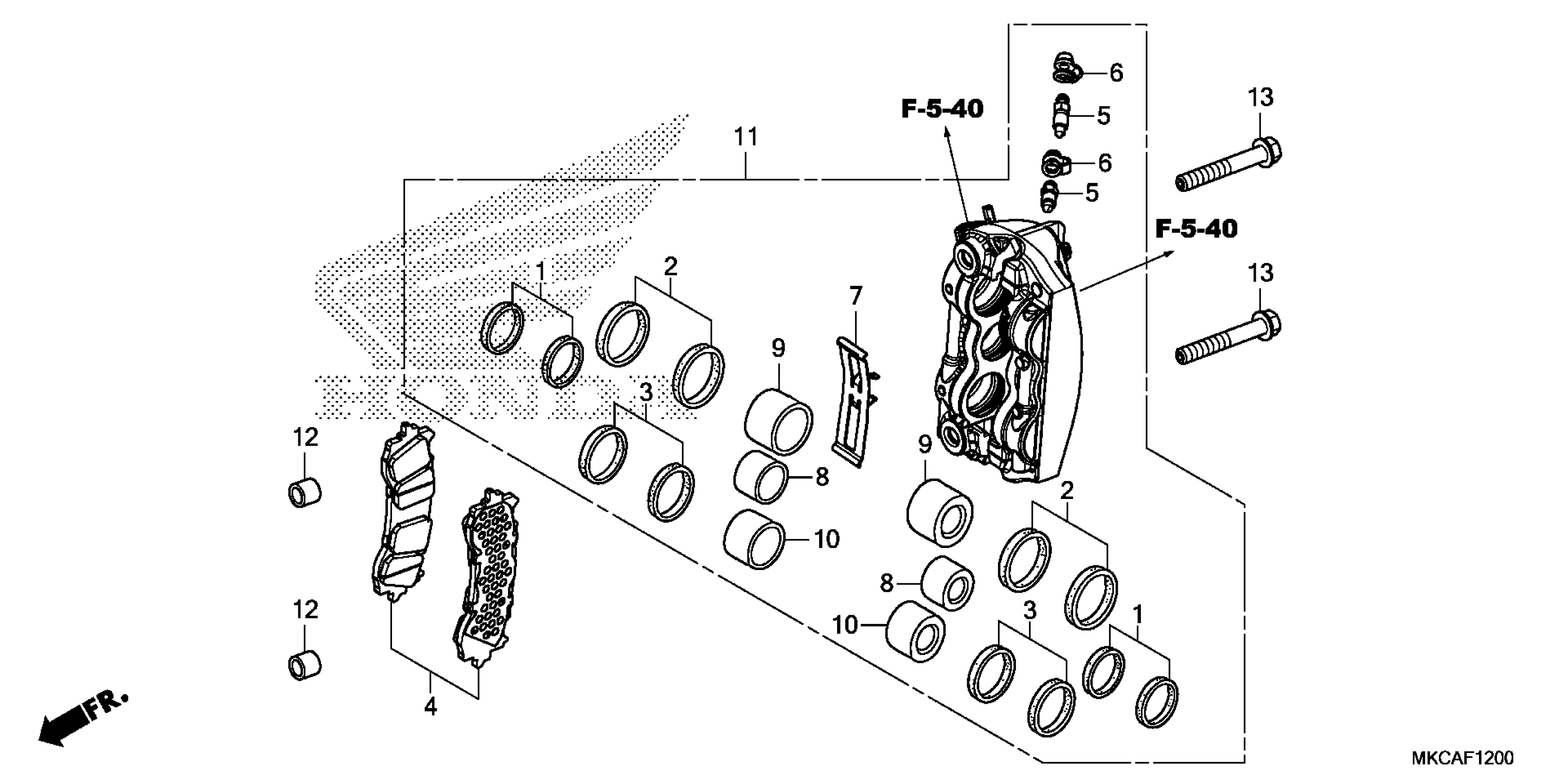

Honda GL1800DA2AC (19) MOTORCYCLE, JPN, VIN# JH2SC797-KK100001 RIGHT FRONT BRAKE CALIPER Diagram

#

Description

Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

2

SEAL SET, PISTON

06451-MCJ-751

$11.58

3

SEAL SET, PISTON

06451-MCZ-006

$5.81

4

PAD SET, FR.

06455-MKC-A01

$70.48

5

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

6

CAP, BLEEDER

43353-461-771

$5.05

7

SPRING, PAD

45108-MKC-A01

$10.07

8

PISTON (27MM)

45116-MGE-006

$36.93

9

PISTON (32MM)

45118-MKC-A01

$47.72

10

PISTON (30MM) This part replaces 45119-MGE-006.

45119-MGE-016

$43.07

11

CALIPER SUB-ASSY., R. FR. This part replaces 45250-MKC-A01.

45250-MKC-A02

$696.59

12

SPACER, FR. FORK

51497-MEL-000

$5.12

13

BOLT, FLANGE (10X67)

90139-MKC-A00

$11.32
